Product Description
- With a track whose length can be changed in the range of 78 to 108 mm, it can be used for various purposes such as adjusting the dimensions of the layout plan, changing the spacing of the double tracks, and connecting the collective layout.
[overview]

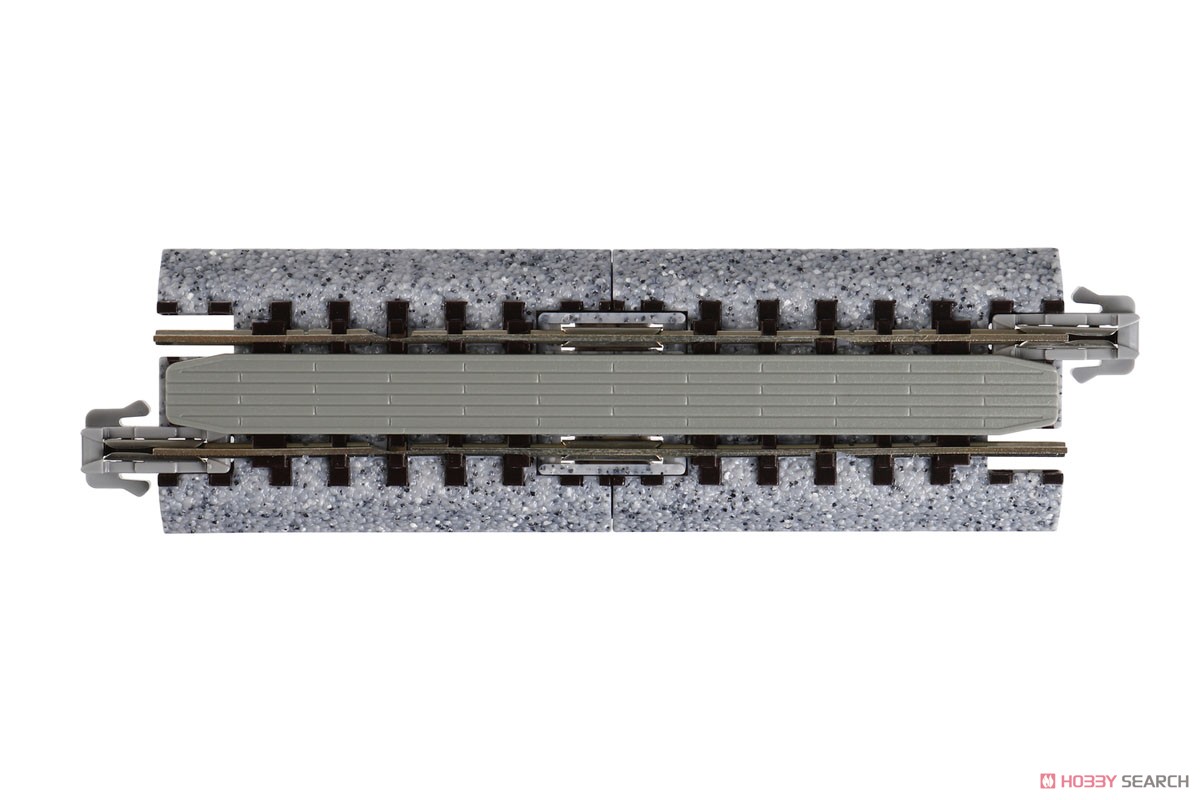

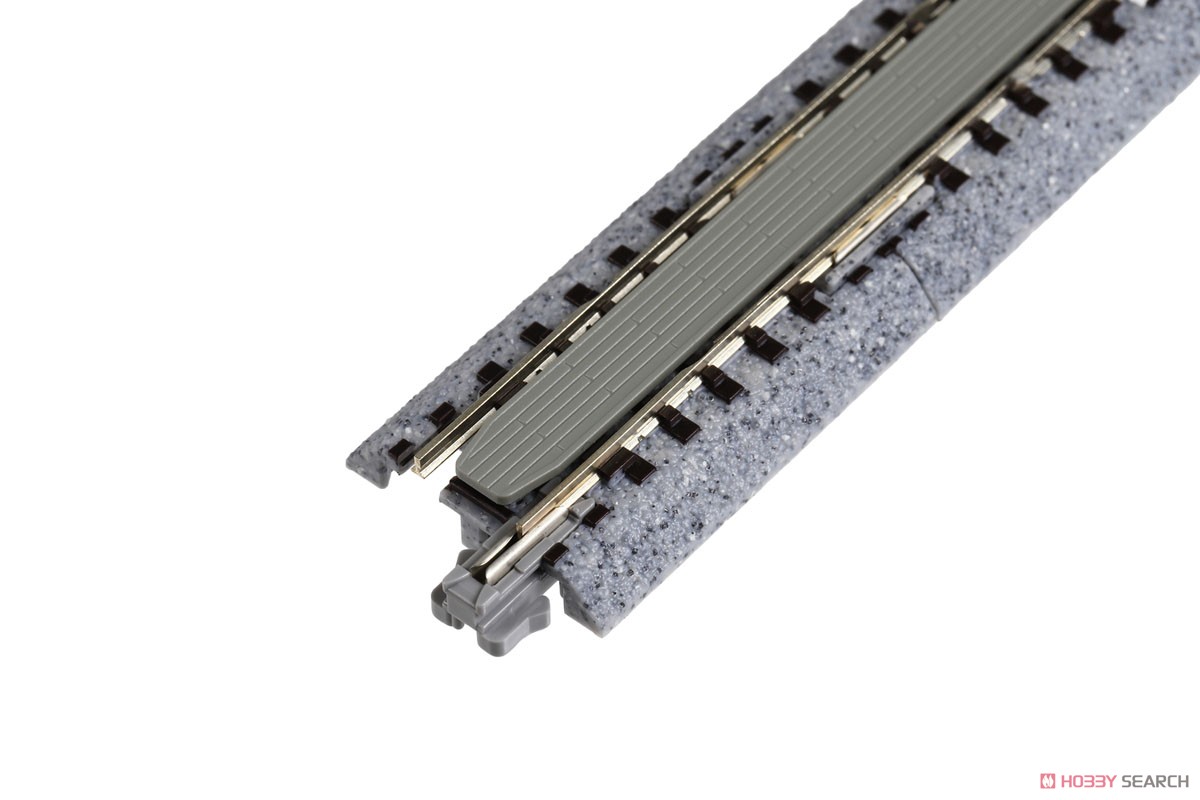

- The slide track S78S is a track whose length can be freely changed in the range of 78 mm to 108 mm, and is used for adjusting dimensions and changing the spacing of double tracks.
[how to use]
- Connect one side with the track shrunk. Then slide the tracks to match the length and connect the other side.
[Example of use]

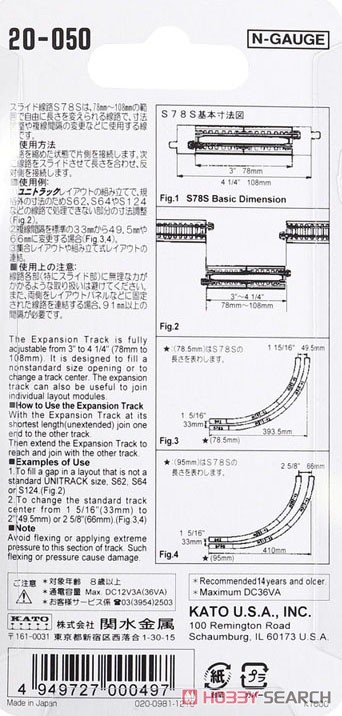

(1) When assembling a unitrack layout, dimension adjustment of parts that cannot be processed with tracks such as S62, S64 and S124 due to non-standard dimensions. (Refer to Fig.2, back view of the package)
(2) When changing the double track spacing from the standard 33mm to 49.5mm or 66mm. (Refer to Figures 3 and 4 on the back of the package)
(3) Concatenation of collective layouts and modular layouts.
[Precautions for use]
- Avoid handling the track in such a way that excessive force is applied to each part of the track (especially the slide part). Also, when connecting lines that are fixed to layout panels on both sides, a gap of 91 mm or more is required.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 16.2 x 8 x 1 cm / 20g
Product Specifications
- Item code
- 20-050
- JAN code
- 4949727000497
Purchase Information
This item is limited to 50 per household.
