Product Description
[Summary]

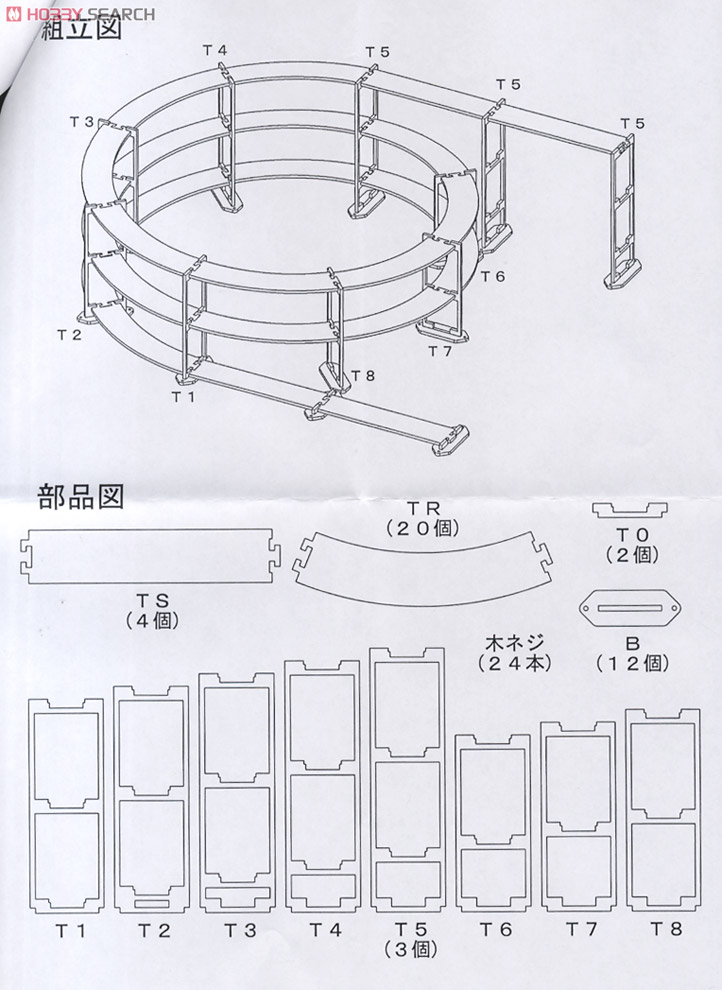

- It is a bridge assembly set for laying the rail to the spiral shape.
[Features]
- It is accurate and easy to assemble kit was laser cut wooden plywood.
- Accurate and circumferential gradient can be made.
- It is possible to (or down) and rising vehicle in a space-saving.
- Loop of the spiral line left and right depending on the idea of \u200b\u200bhow to use, etc. You can use two sets
Spread.
- Because of the materials that are easy to process, remodeling is easy.
[Specifications]
- Scale: N gauge size, 1/150
- Rail to fit: (use eight per revolution 1) (1113) Tomix C177
- Increase in height: 56mm per revolution
- Gradient: about 5.0%
- Maximum diameter: 411mm
- Maximum height: 148mm
- Straight section: set 2 2 140 ×
- Accessories: screws × 24 this Thurs
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 17.3 x 12.3 x 8.5 cm / 294g
Product Specifications
- Item code
- NL-177T2K
- JAN code
- 4582330651689
Purchase Information
This item is limited to 12 per household.
