Product Description

[Summary]

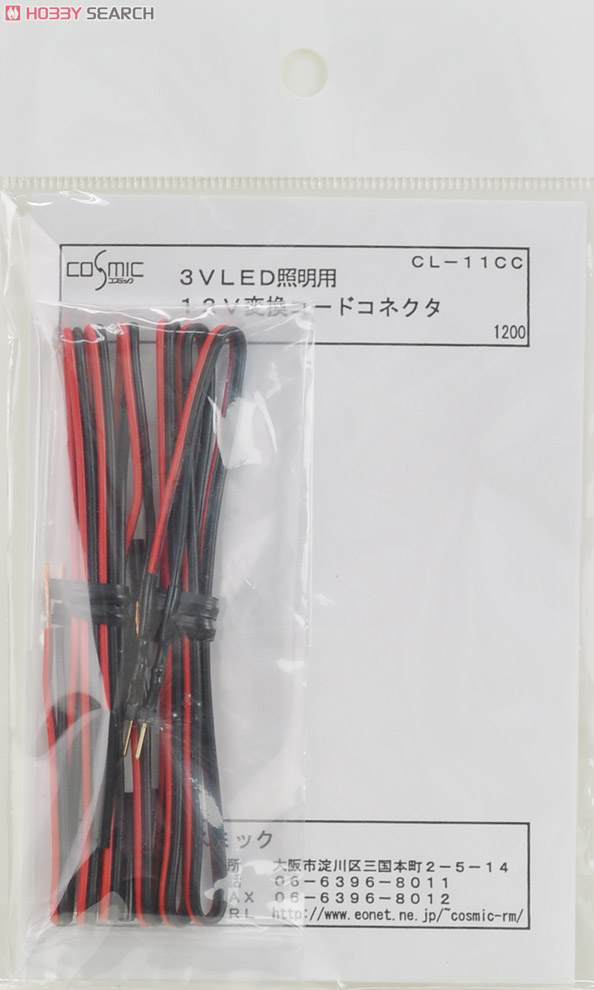

- It is the connector code to convert the 12V specification of LED lighting supplies 3V specifications available on the market.
(Cosmic lighting unit can be connected to LED)

[Features]
- You can easily change for 12V LED lighting supplies that can only be used with 3V.
- Soldering connection is not required.
- Spread variations of lighting layout.

[Instructions]
- Strip about 5 ~ 10mm lead wire of LED lighting to be connected.
Leads, please remove the clothing line under the case of polyurethane.
- We will confirm - the LED to be connected +.
Cord connector is black + red, is -.
If you use the LED in general, the shorter is the longer lead of the LED is + and -.
- Twist together through the same electrode lead shrink tubing that comes with the cord connector, shrink to their connections
Through the tube, we shrunk by heating in a tube and writers.

[Note]
- Incorrect connection direction of LED, the LED may not light, LED collapse.
- 3V bulb will not light.
- So removed or have a diode and a resistor to the root of the cord connector, I bend
Please do not.

[Specifications]
- Applicable connector: Cosmic LED corresponds to the lighting unit
- Cord Length: 600mm approx
- Accessories: Shrink Tubing



Item Size/Weight : 13.3 x 10.1 x 0.8 cm / 19g

Product Specifications

Item series

Control Systems

Item code

CL-11CC

JAN code

4582330651726
