Product Description

* Products that require processing on the vehicle.

-Odakyu Electric Railway romance car auxiliary horn sound (music box sound) onboard module.
Music box sounds that were installed in romance cars, including the 3100 type
The tone of those days is forever on the model ...

-This product is based on the image of an era where the noise was constantly emitted during the past year
-If you incorporate this product, you can enjoy it only in normal driving environment.

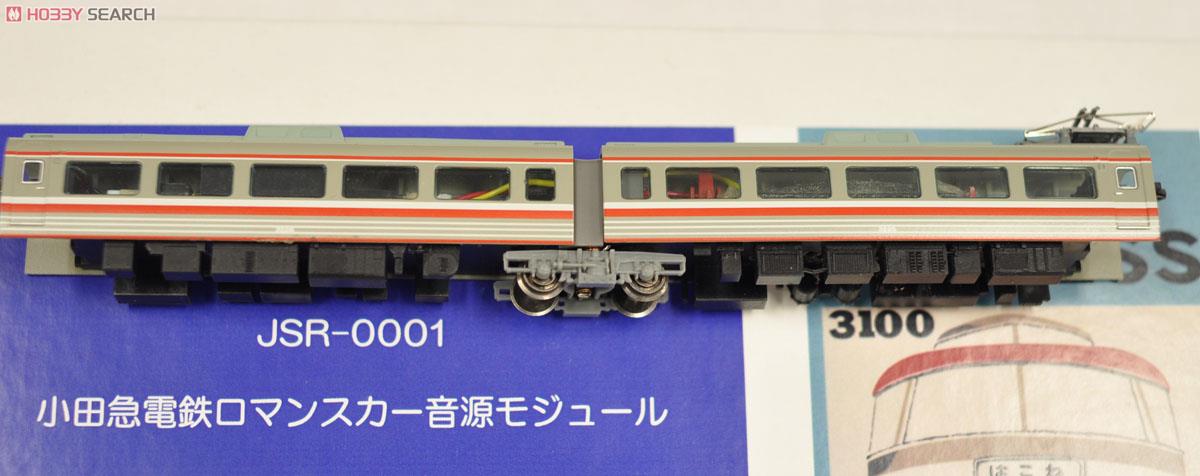

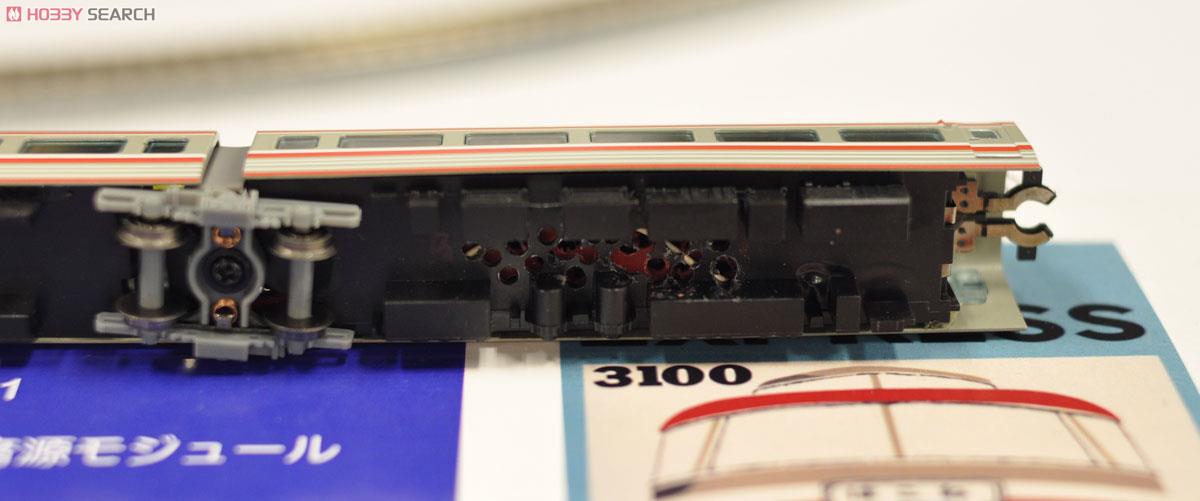

In the N gauge, the main body and the speaker are separately mounted on the articulated body, cutting the chair part, under the floor
Soldering work for drilling holes in the floorboard and supplying power to remove sound from the speakers
Required.
In addition, it can be installed without processing the body.
On the 16th vehicle, when fixing the speaker to the floorboard, it is necessary to drill holes in the floorboard and supply power.
Requires soldering work.
-Puzzle type, power-on type not supported, DCC not supported

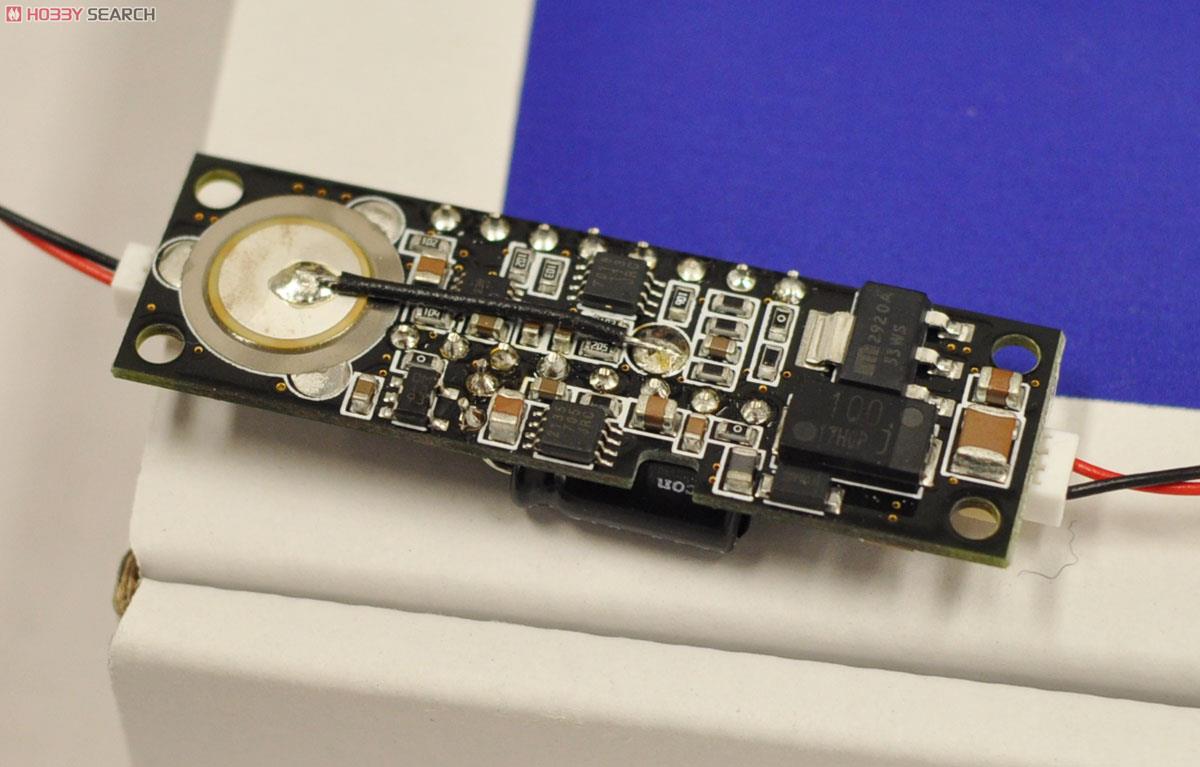

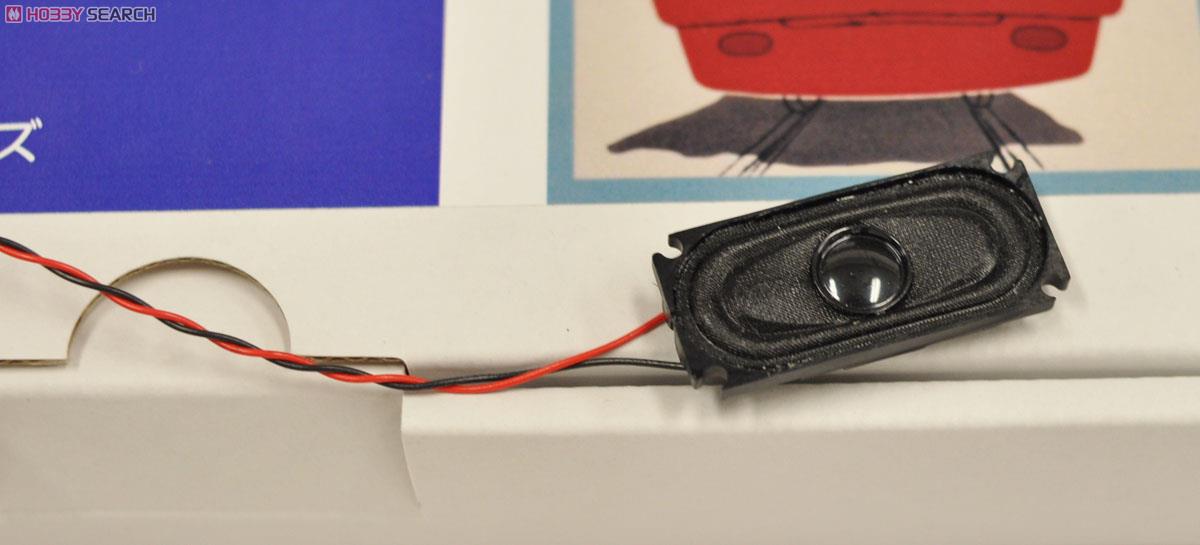

-Main unit W45 x D24 x H8, speaker W35 x D16 x H5.5
-Included power and speaker cable
-Built-in ON / OFF switch and vibration sensor
-Sounds from about 5V. At the time of acceleration and deceleration around 5V, there is pitch modulation.

-I wish I had it! ! Sound Module Module products will be released sequentially.

-Yawata Electric Industry Co., Ltd.

[Specification change information]
-The speaker became 8Ω from August 2014 reproduction. The speaker diameter does not change. At the same time, the program of the main unit was changed to 8Ω speaker specification.
-The price will be revised due to the change of parts after the 2020 reproduction. Please note.


Item Size/Weight : 22 x 12.9 x 3.5 cm / 73g

Product Specifications

Item series

Sound Module

Organization

Odakyu Electric Railway (OER)

Region

Kanto

Item code

980019

JAN code

4580402980019
