Product Description
[Summary]
- It is a point of switch 10 stations and 5 stations of the desktop.
[Features]
- For independent power supply with the (AC100V adapter) does not depend on the type of power pack.
- The pulse-driven due to the capacitor charge and discharge type.
- There is TOMIX for KATO and for the shape of the connector.
- It is a slanted design, easy to operate.
- The metal case High quality.

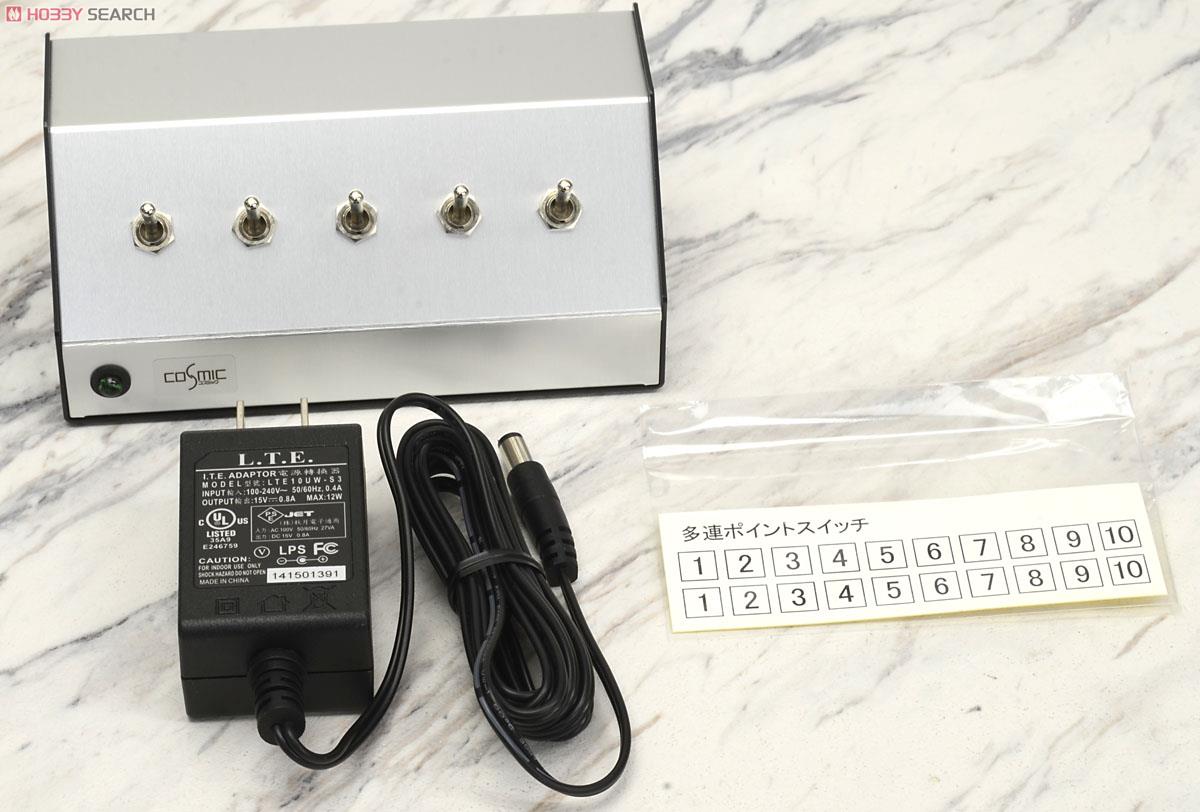

- Name: desktop Five-point switch
- Model: CP-1605K
- Connectors: KATO
- Power: AC 100V 50/60Hz adapter type
- Power indicator: green LED lights up when energized
- Point connection: 1 per switch, single point until two, complex point one
- (Mm) Dimensions: W60 × H61 × L120 (projection part is excluded)
- Weight (g): about 250
- Accessories: AC adapter, seal point number display
[More]
- CP-16T 2 branch code connector (TOMIX use)
- The 2-point linkage, such as siding with TOMIX rail, please use the code two branch connector (sold separately).
- In the case of rail KATO, please use the (24-827) branch connector
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 15.1 x 11.2 x 7.5 cm / 391g
Product Specifications
- Item code
- CP-1605K
- JAN code
- 4582330652372
Purchase Information
This item is limited to 12 per household.
