Product Description

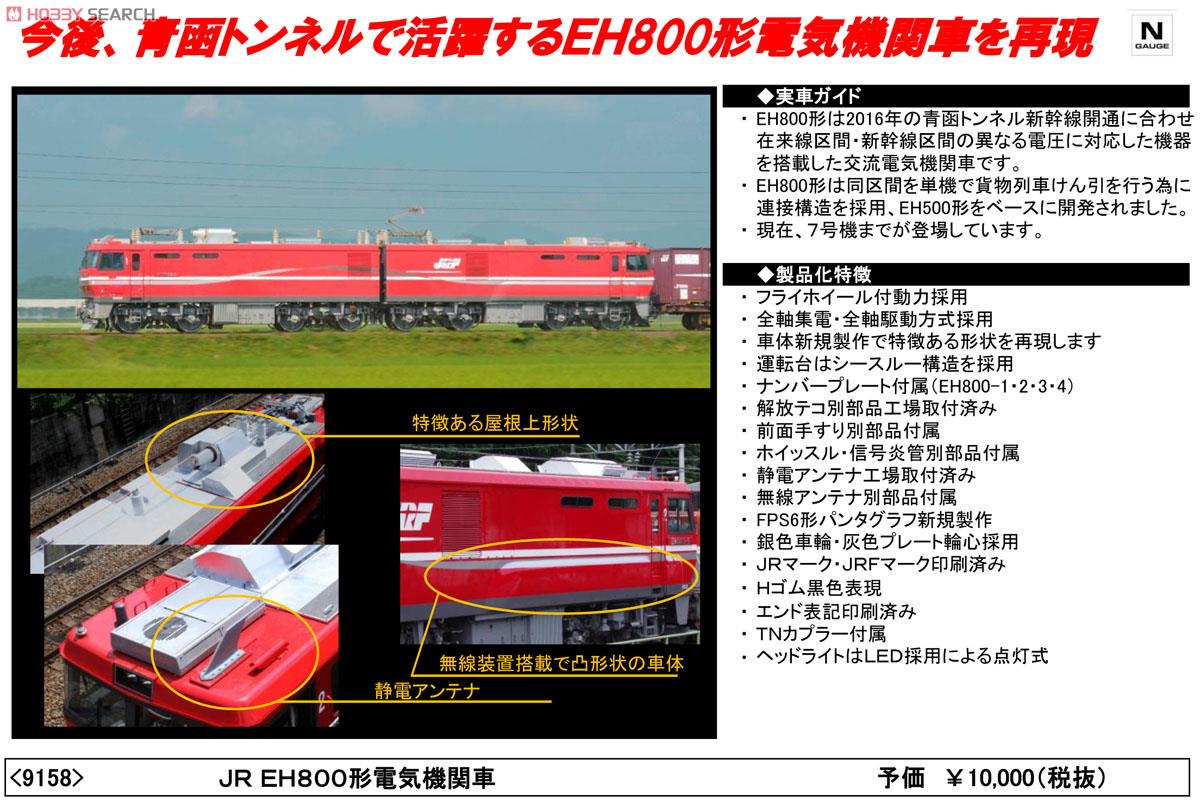

── future, reproduce the EH800 form electric locomotive to be active in the Seikan tunnel
[Vehicle Summary
- EH800 form is the AC electric locomotive equipped with devices that support different voltage of conventional line section Shinkansen section according to the Seikan Tunnel Shinkansen opening 2016.
- EH800 form adopts articulated structure in order to carry out the freight train towing the same section in the single machine, was developed based on the EH500 form.
- February 2015 currently, up to 7 Unit has appeared.
[Vehicle Guide]
- EH800 form is the Hokkaido Shinkansen after the opening, the Seikan AC electric locomotive of JR cargo corresponding to the running of the conventional lines and Shinkansen shared section including the tunnel. Isomorphic is, Goryokaku - in the vehicle, which has been developed on the basis of the EH500 form for the purpose of freight train traction in Higashiaomori, respectively corresponding to the different overhead power line voltage and operation security equipment in conventional lines and bullet train, the Shinkansen digital radio LCX antenna or an electrostatic It is equipped with such power antenna. 2012 to the prototype vehicle is manufactured conducted various tests, it has emerged mass production cars from 2014.
[Commercialization Features]
- Power adoption with a flywheel
- Adopt all axes current collector, all-axis drive system
- To reproduce the characteristic shape in the body new production
- Cab adopts a see-through structure
- Number plate included (EH800-1 · 2 · 3 · 4)
- Release lever by parts factory pre-installed
- Front handrail by parts accessories
- Whistle signal flare by parts accessories
- Electrostatic antenna factory pre-installed
- Radio antenna by parts accessories
- FPS6 form pantograph new production
- Adopt silver wheels and gray plate wheel center
- JR Mark · JRF mark printed
- H Rubber black representation
- End notation printed
- TN coupler included
- Headlights lit by the LED adoption
[accessories]
- Runner parts: license plate × 2
- Runner parts: handrail × 1
- Parts: TN coupler × 2
[Replacement Parts List
- Printed circuit board: manufacturer repair correspondence
- Antenna: JA15 (train radio antenna), JA0039 (electrostatic antenna)
- Pantograph: 0281
- Driving truck: 0401,0402
※ Since there is a distinction between F and G, please note the time of mounting.
- Motor: 0627
- Shaft: JF0939
- Worm gear set: JW0989 (cab side), JW0990 (connecting surface side)
- The wheels Rubber: JG02
- Collector spring:
JS15 JS0140
- Coupler: JC06
- Dense self-communication type TN Coupler: JC52
- JR Freight Approved
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 22.5 x 6.5 x 3.2 cm / 240g
