Product Description
※ Since this product comes with Kant of tilting the vehicle, there is a condition in connection with the conventional rail products. Description Please read it thoroughly to, please use properly.
[Products Guide]
- Radius 345mm curve angle of 45 ° width 37mm wide curve cant rails.
- Comes with a cant curve outside of the rail is higher than inside, I enjoy traveling the train tilts to the inside as the real thing.
[Characteristic]
- Painted the ballast and sleepers, beautiful appearance.
- PC sleeper representation.
- Rail each other can be combined with the snap at the nails, easy and reliable connection.
- There is a connection compatible with conventional TOMIX rail.
- A single line pier base sold separately and attached to the underside also supports single wire piers. Others, fence, railing, the rail side of the side wall and can be mounted.
- Linking the C317-45-WP sold separately on the inside, or can be used as a double track rail by concatenating the C391-45-WP (optional) to the outside.
- It also supports multi-line elevated pier by mounting upon a wide rail cant part for coupling to the bottom surface to use as a double track rail.
- Is mounting a feeder for wide rail slab rail on the lower surface, and then the power supply. (Possible feeder slab rail also mounting. Conventional feeder is not attached)
- It can be mounted by the user additional processing the sensor for wide rail slab rail. (Slab rail sensor, one-touch mounting the sensor is not attached)
- Also supports various overhead wire pole mount.
- Kant inclination angle is about 4 °.
The set include:

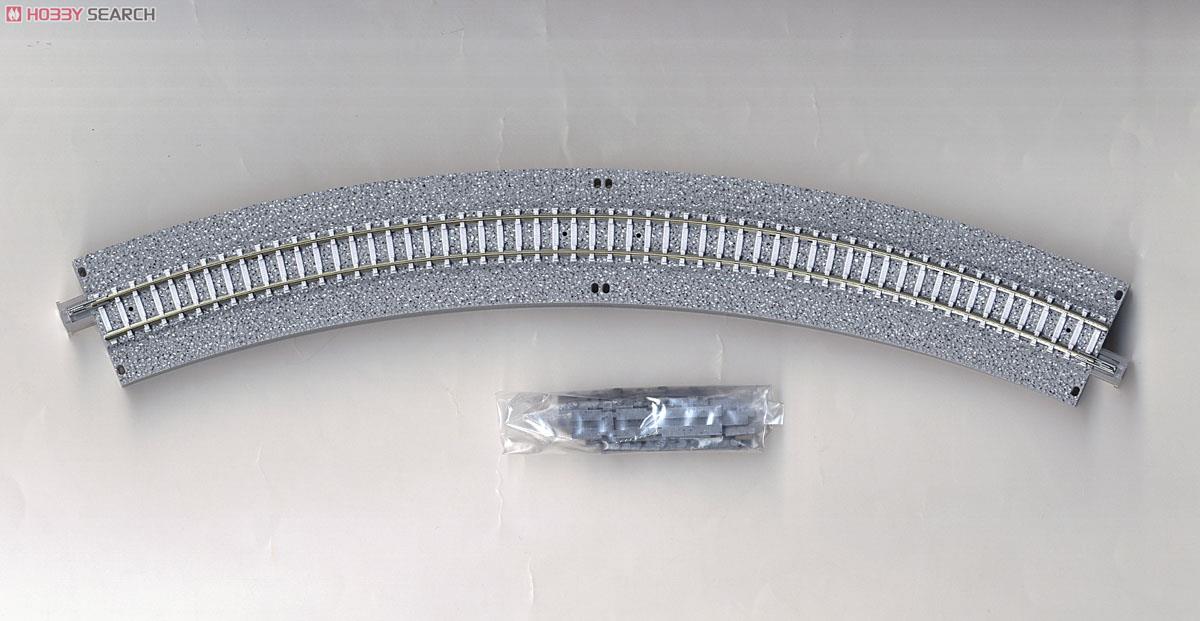

- Wide PC curve rail C354-45-WP (F) 4 this ×

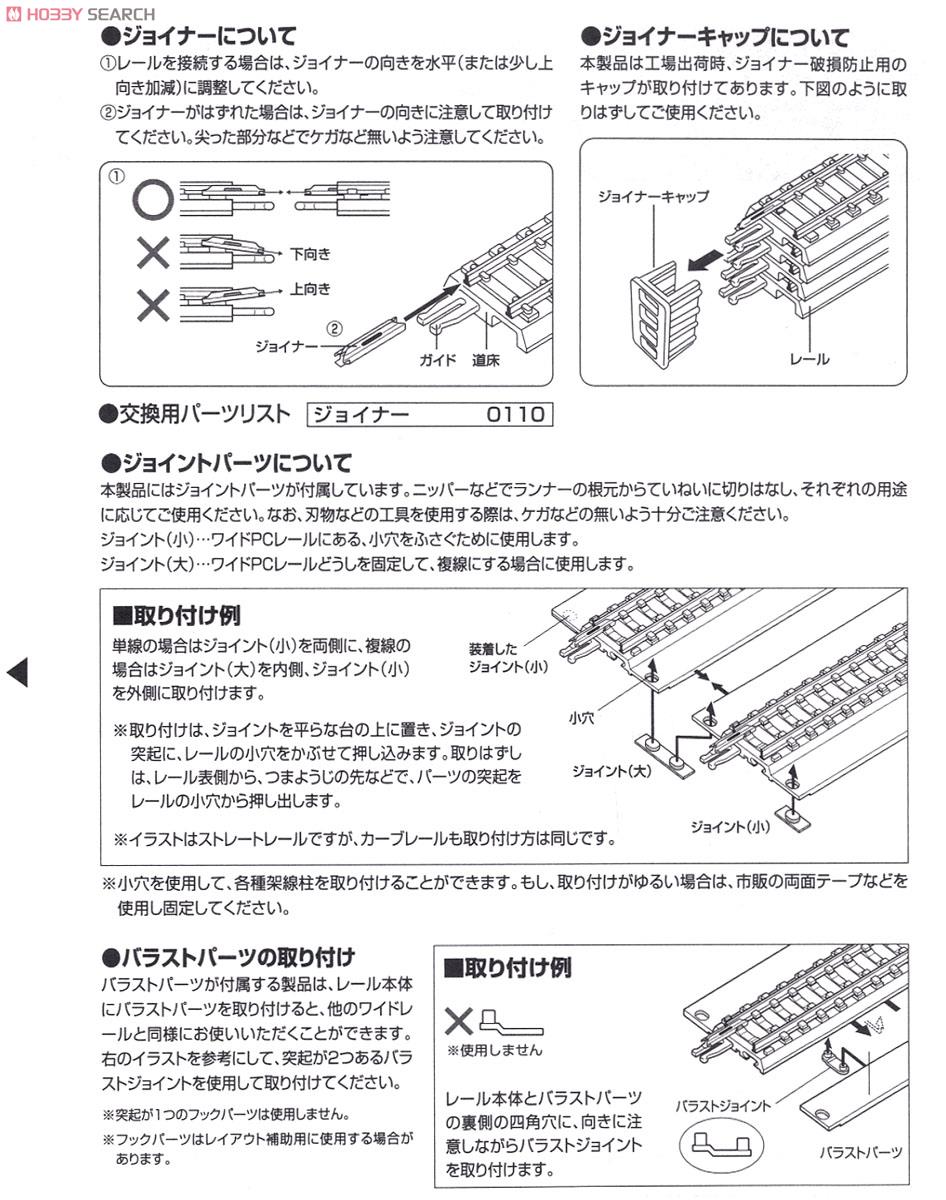

- Eight wide rail joint runner ×
[Note]
- This product can be installed, such as the following products. For more information, please read the description of the described in the instructions that come with the product, or the product package.
- <3083> in the wall for wide rail C354 · C317 outside (three × 8 pieces)
- <3084> in the wall for wide rail C391 · C354 outside (three × 8 pieces)
- <3093> single line for wide rail pier base C354-22.5 (8 pieces)
- <5567> sensor for TCS wide rail slab rail
- <5593> tread type noise canceller (input two)
- This product can not be used in conjunction with the following products.
- <5537> <5538> other than the DC feeder N
- <5567> other than the sensor
- <5592> feeder type noise canceller
[About the wide PC curve rail connection]

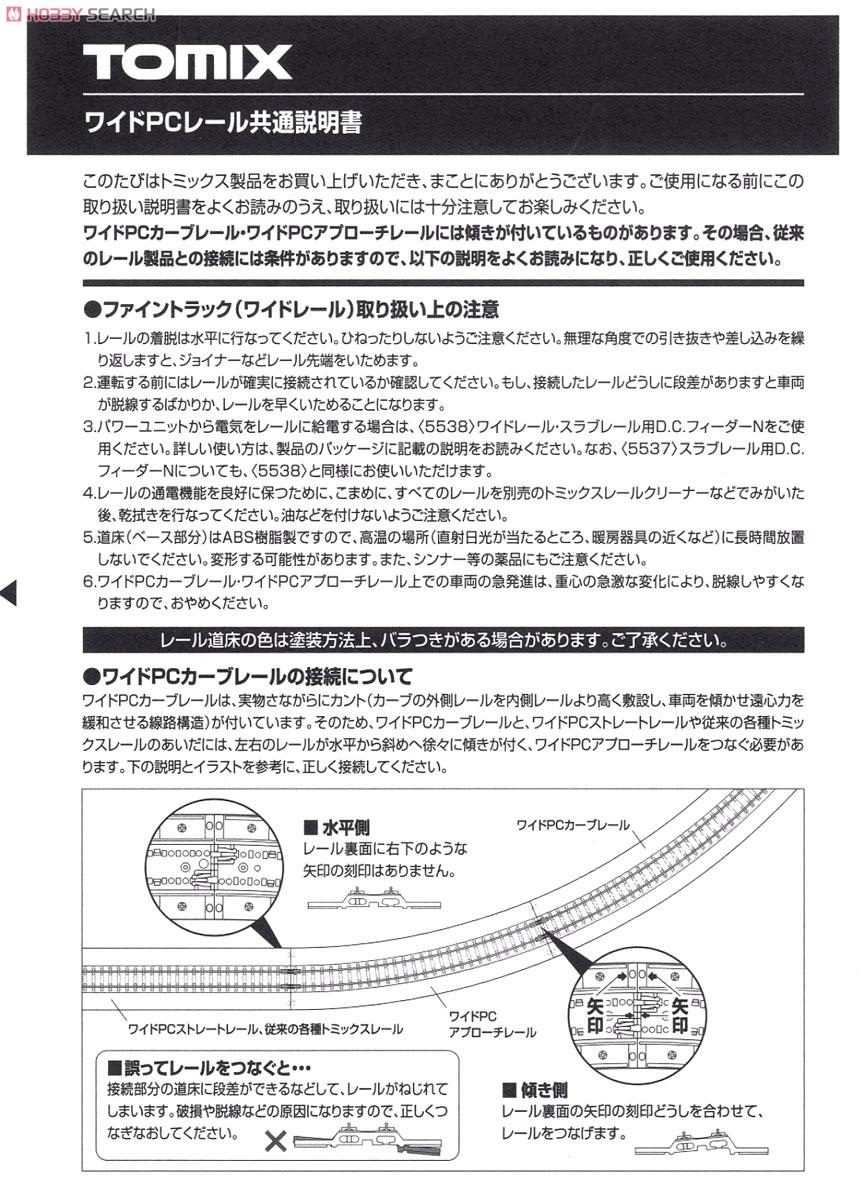

- Wide PC curve rail, Kant real thing in just like (the outside of the rail of the curve higher laying than the inner rail, line structure to mitigate the centrifugal force to tilt the vehicle) comes with. For this reason, and the wide PC curve rail, between the wide PC straight rail and various conventional Tomix rail, left and right of the rail gradually stick is tilted from the horizontal to the diagonal, you need to connect a wide-PC approach rail. In reference to the corresponding sections and illustrations, please correctly connected.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 31 x 6.5 x 2.3 cm / 119g
Product Specifications
- Item code
- 1773
- JAN code
- 4543736017738
Purchase Information
This item is limited to 50 per household.
