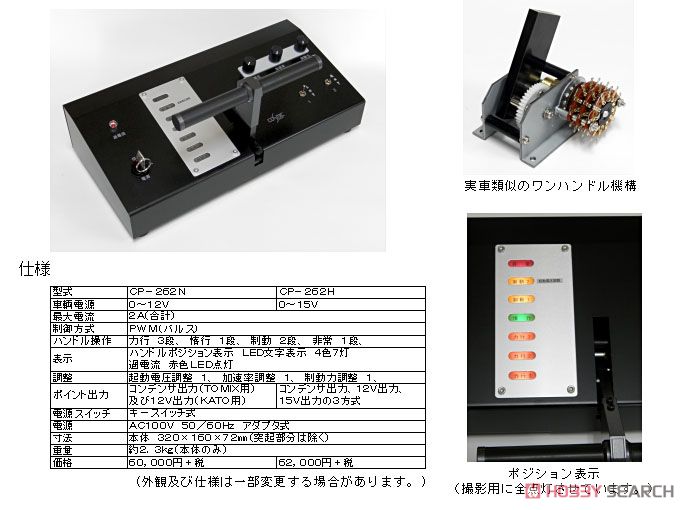

Product Description

[Overview]
- Than the type II of conventional products, by review of the case structure, cost reduction was achieved. (Internal mechanisms and electronic circuit is the same as Type II.)
- With the development of the actual vehicle similar to the one-handle mechanism, it has achieved an operational feeling of the vehicle just like.

[Characteristic]
- The adoption of the key expression power switch of the vehicle sense, can not be turned on and not put the key.
- Switching operation the number of stages of the handle is a seven-stage, is a position with a display in which the handle position is easy to understand.
- Start-up voltage adjusted according to your preference, acceleration rate can be adjusted and the braking force adjustment.
- Possible when the vehicle is stopped the vehicle lighting lit PWM (pulse) is a method.
- Due to the difference of the output voltage, there are two types of for N gauge for and HO gauge.
- Texture is high, is all-metal exterior with a sense of weight.

[specification]
- Vehicle power: 0 ~ 12V
- Maximum current: 2A (total)
- Control method PWM (pulse)
- Handle operation: Ka line three-stage, depression speed single-stage, two-stage braking, very first stage
- Display: The handle position display, LED character display four colors 7 lights, eddy current red LED lights
- Adjustment: start-up voltage adjustment 1, acceleration rate adjustment 1, braking force adjustment 1
- Vehicle output: 2 lines forward with the reverse switch
- Point Output: capacitor output (for TOMIX), and 12V output (for KATO)
- The power switch: key switch type
- Power: AC100V 50 / 60Hz adapter formula
- Dimensions: body 320x160x72mm (except projection part)
- Weight: about 2.3kg (body only)

Product Specifications

Item series

Control Systems

Item code

CP-262N

JAN code

4582330652921
