Product Description

[Overview]

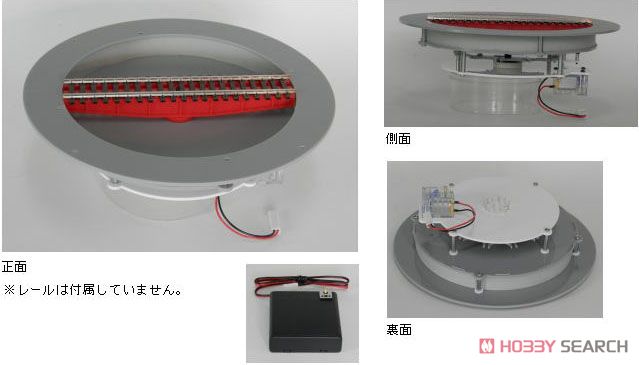

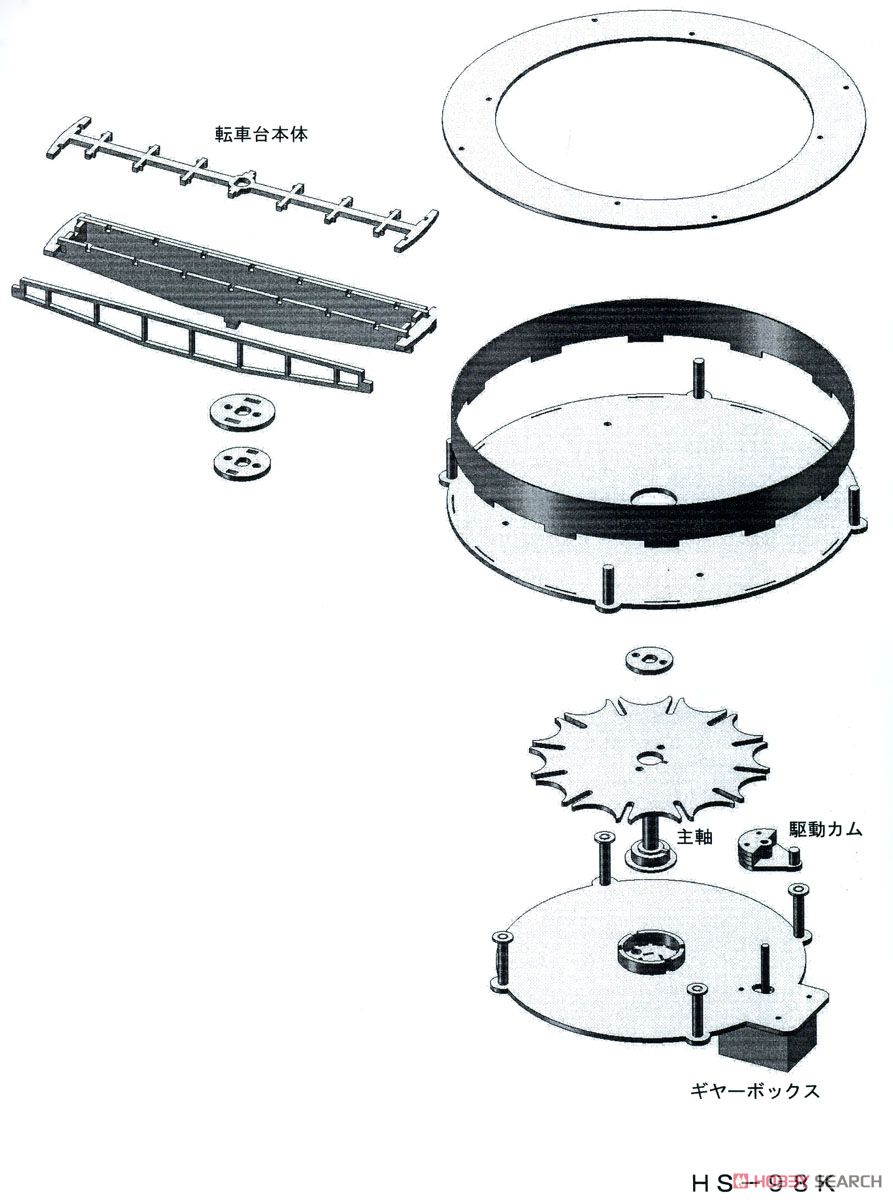

- Small steering locomotive kit (C11, C12, etc.) is a miniature wheelchair assembly kit with a diameter of 150 mm and divided by 30 degrees, which can change direction.

[Features]
- Since the rotation of the turning table is an intermittent drive method, the rail position is easy to match.
- Since the rotary switch is linked to the rotating shaft center, power feeding to the fixed side rail is automatically switched by the rotation of the turning table.
- Painting is unnecessary since the laser cutting is done on the colored acrylic plate for the exterior part.
- Tamiya gear box and battery direction box with rotation direction switch BOX is included, so separately purchased parts are only rails.
- O It can also be used for narrow vehicles.

[please note]
- The depth of the layout board is 65 mm (inner dimension) or more.

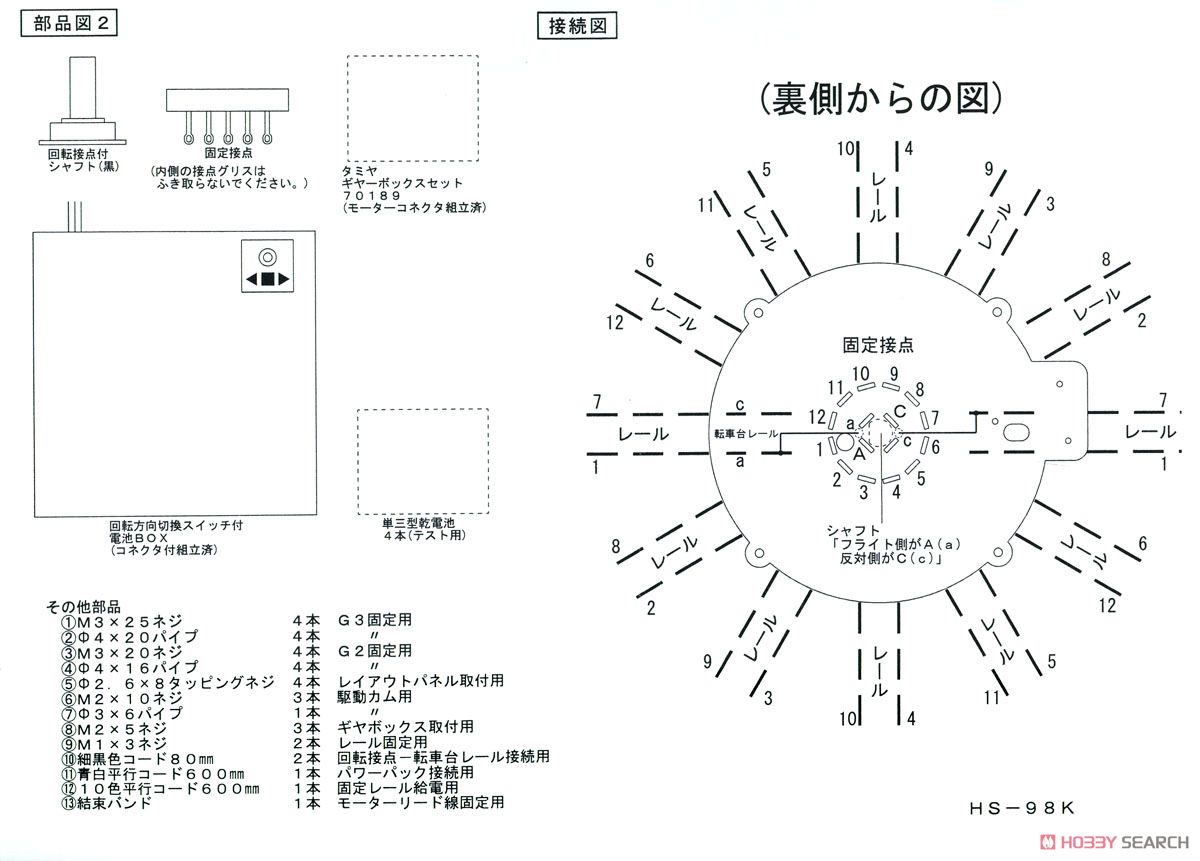

- Some soldering work is necessary for wiring.

[specification]
- Roller base diameter: φ 150 mm
- Transfer rotation angle: 30 ° 12 divided
- Driving method: Intermittent drive with rotating direction switching (2 DC 3 V)
- Dimension: φ 200 × H 66 mm
- Completion weight: About 200 g (body only)
- Mounting hole: φ170 mm (depth of 65 mm or more required)

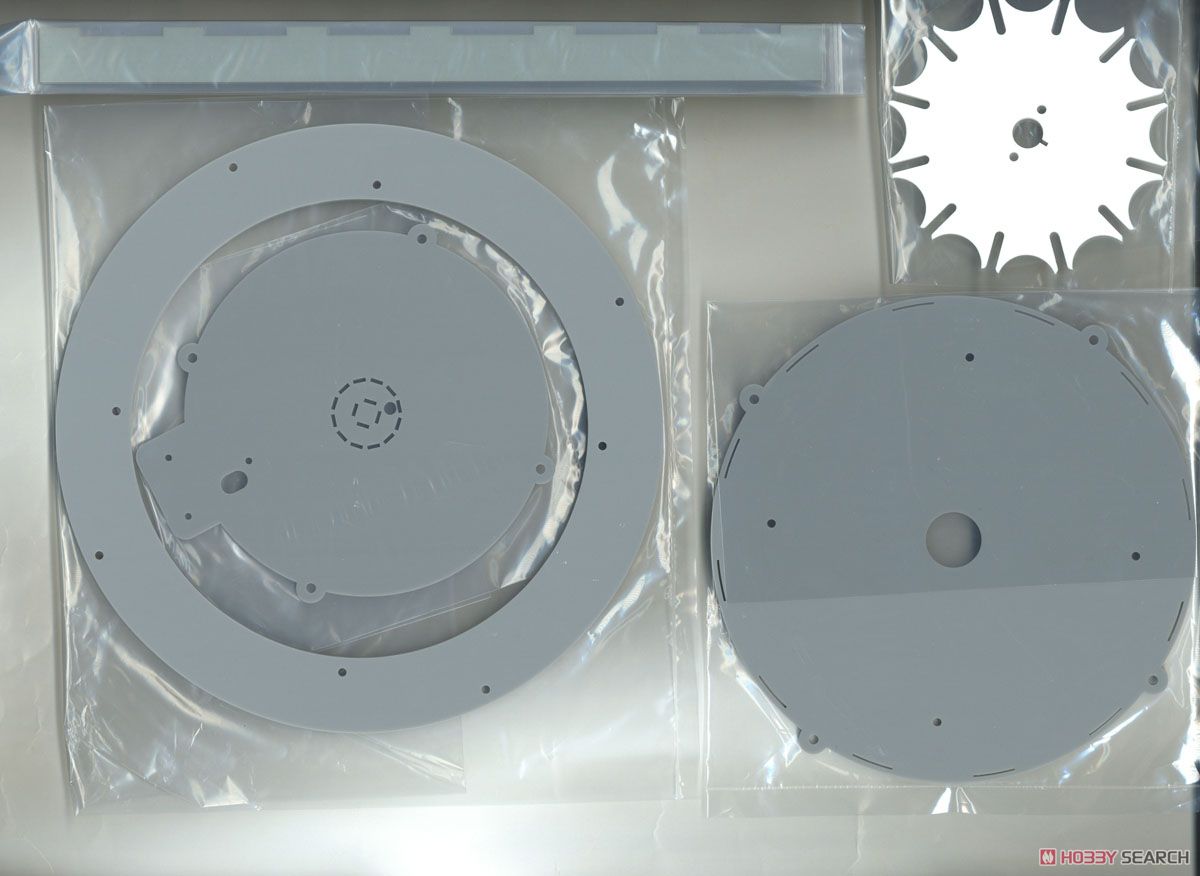

- Material: gray, red, white acrylic resin board, some paper

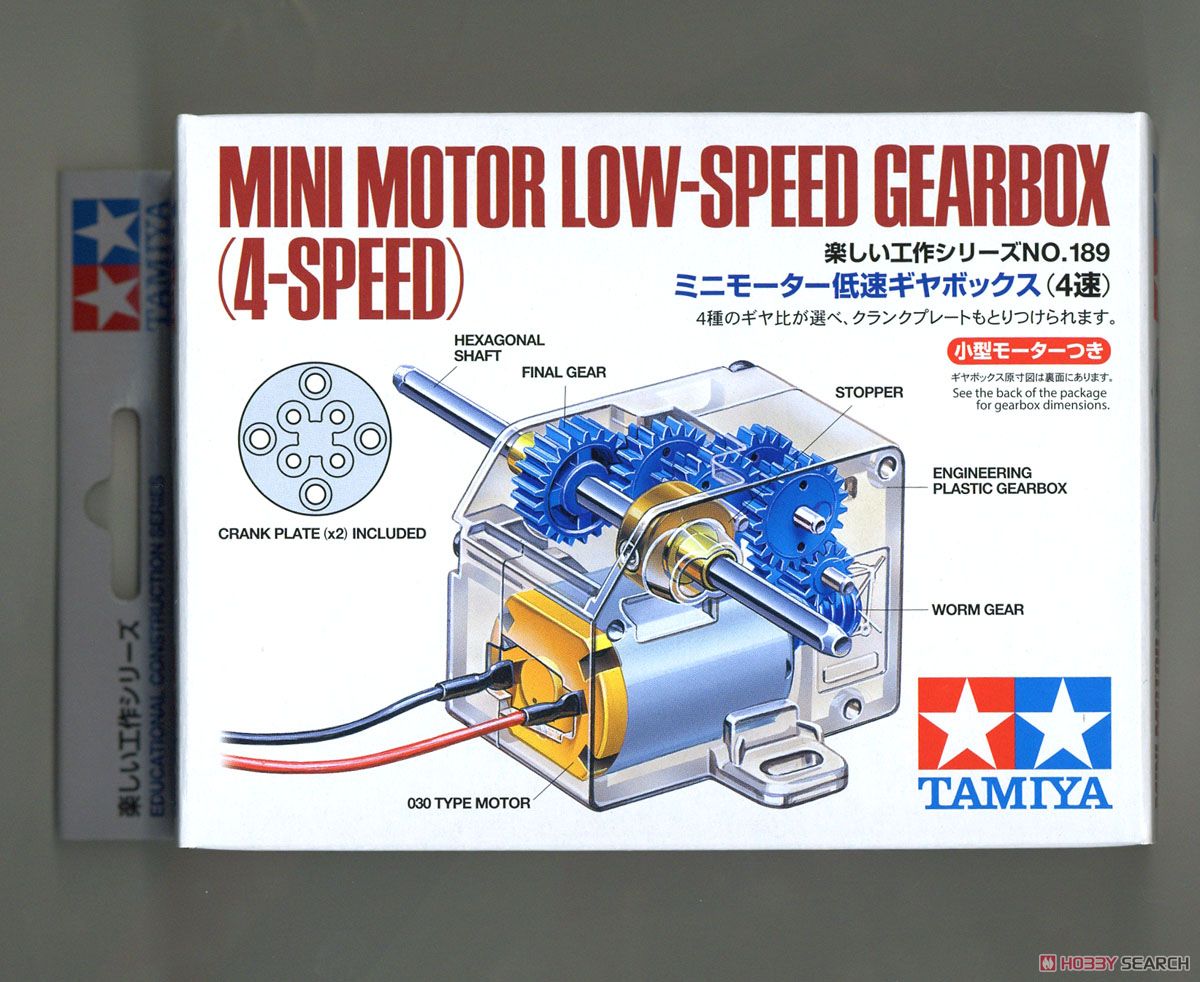

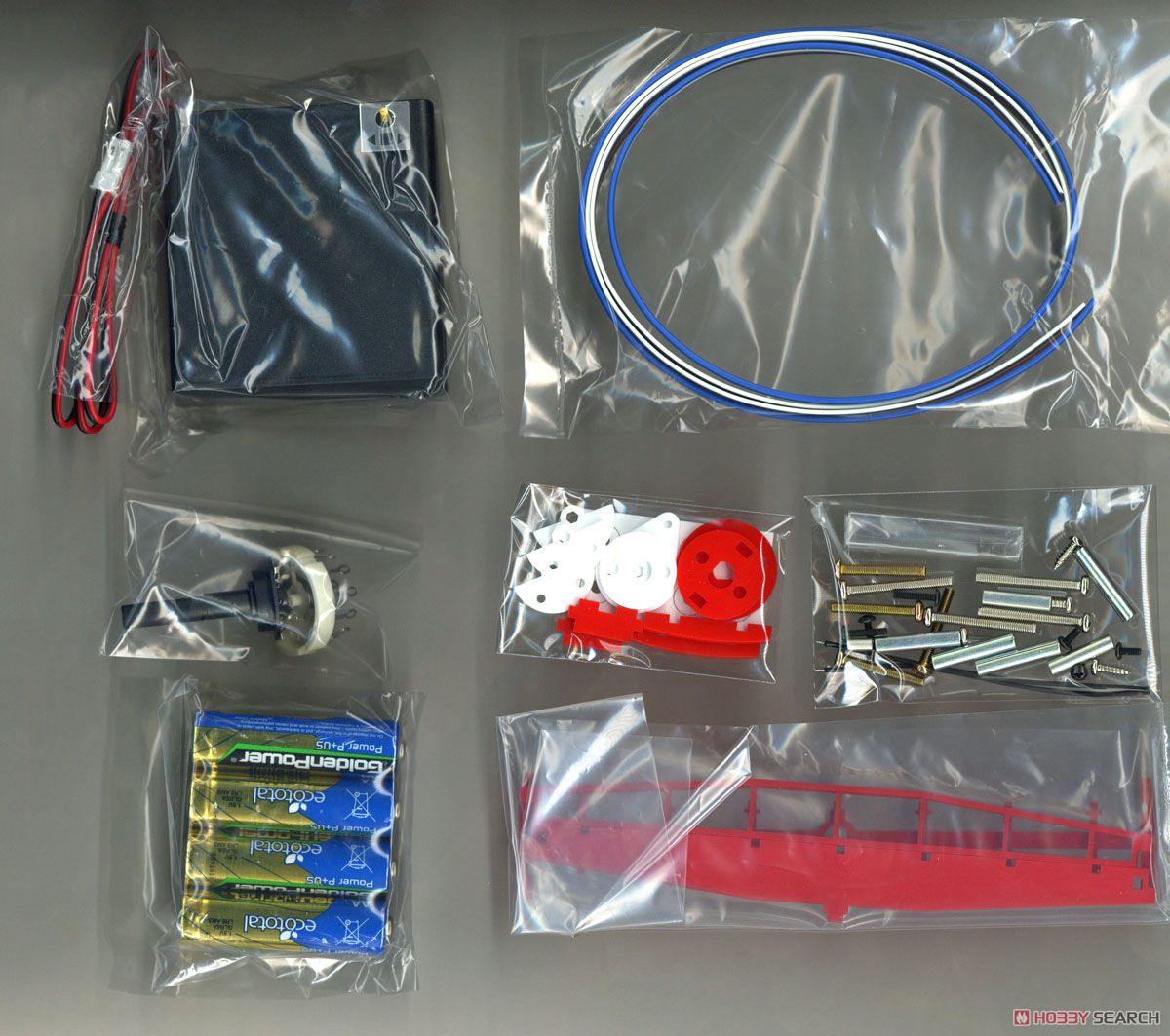

- Accessories: Tamiya gearbox 70189, BOX with rotation direction change switch, 4 AA size batteries, complete set of screws, complete set of cords

※ The rail is not included.



Item Size/Weight : 23.3 x 21.6 x 3.7 cm / 515g

Product Specifications

Item series

Structure , The 16th Street

Item code

HS-98K

JAN code

4582330653232
