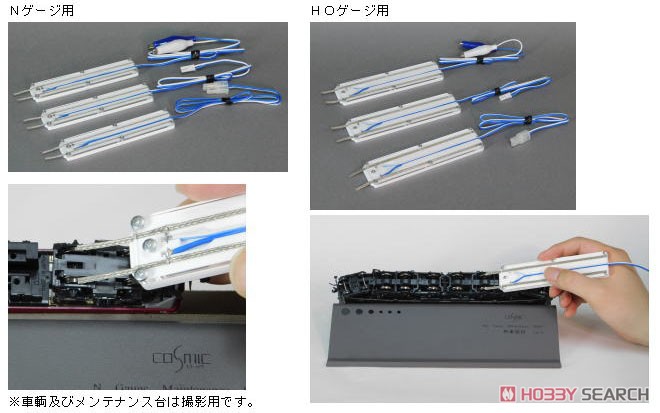

-It is an instrument used to check the operation of drive systems and lamps during model vehicle inspection, repair and maintenance, and to clean power wheels.
[Characteristic]
-There is no need to put it on the rail when remodeling or servicing the vehicle, and the operation can be confirmed in the fall state.
-The drive system and lamps can be inspected in the fall state.
-You can check the entire voltage range by changing the supply voltage without driving.
-When the flat electrode is worn or unwound, it can be cut and pulled out. A set of spare flat electrode is also included.
-Connector type can be selected according to the power supply method.
・ CA-N21K, CA-H21K… with KATO power pack connector
・ CA-N21T, CA-H21T ... with TOMIX power pack connector
・ CA-N21C, CA-H21C ... with railworm clip for rail connection

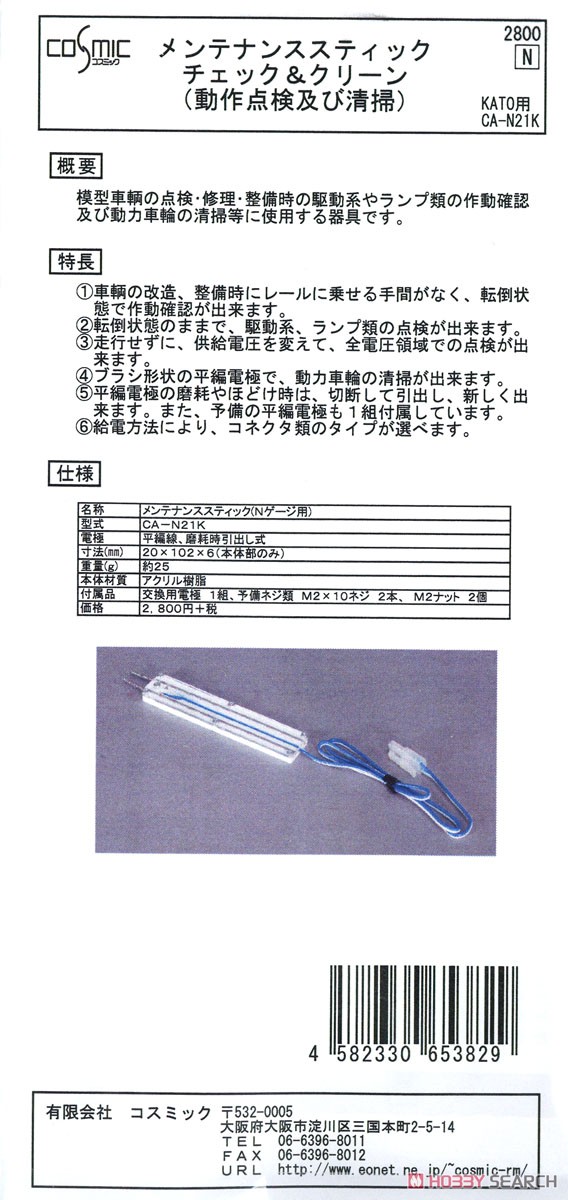

[specification]
-Maintenance stick (for N gauge)
-Format: CA-N21K
-Electrode: Flat knitted wire, withdrawable when worn
-Dimensions: 20 × 102 × 6mm (original part only)
-Weight: about 25g
-Body material: Acrylic resin

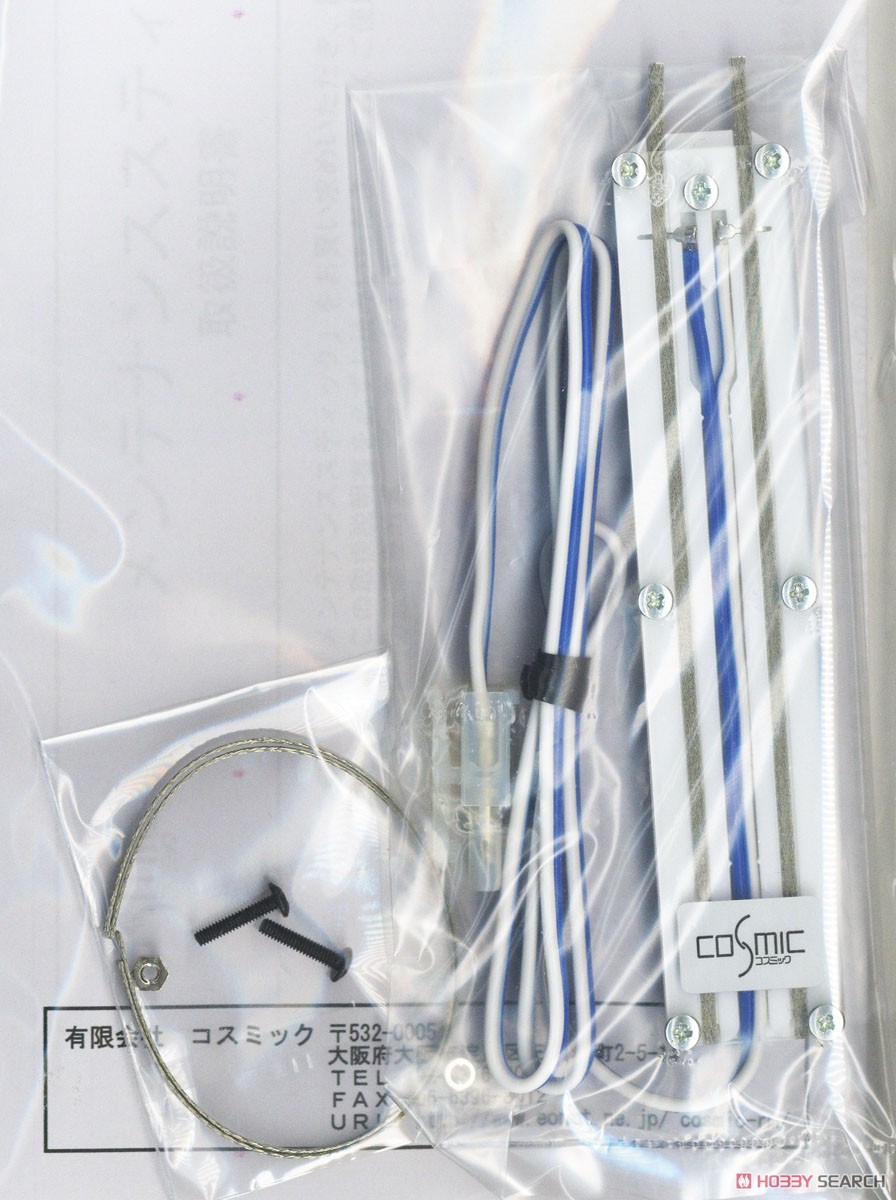

-Accessories: 1 set of replacement electrodes, spare screws, 2 M2 x 10 screws, 2 M2 nuts
( This is a machine translation. Please allow for possible misinterpretations in the text. )
