Product Description
[feature]

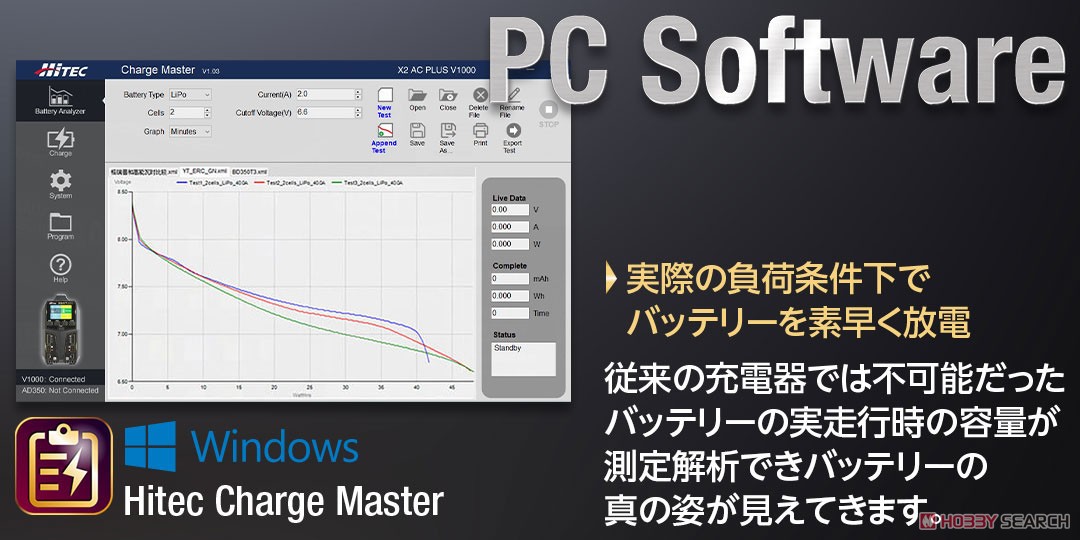

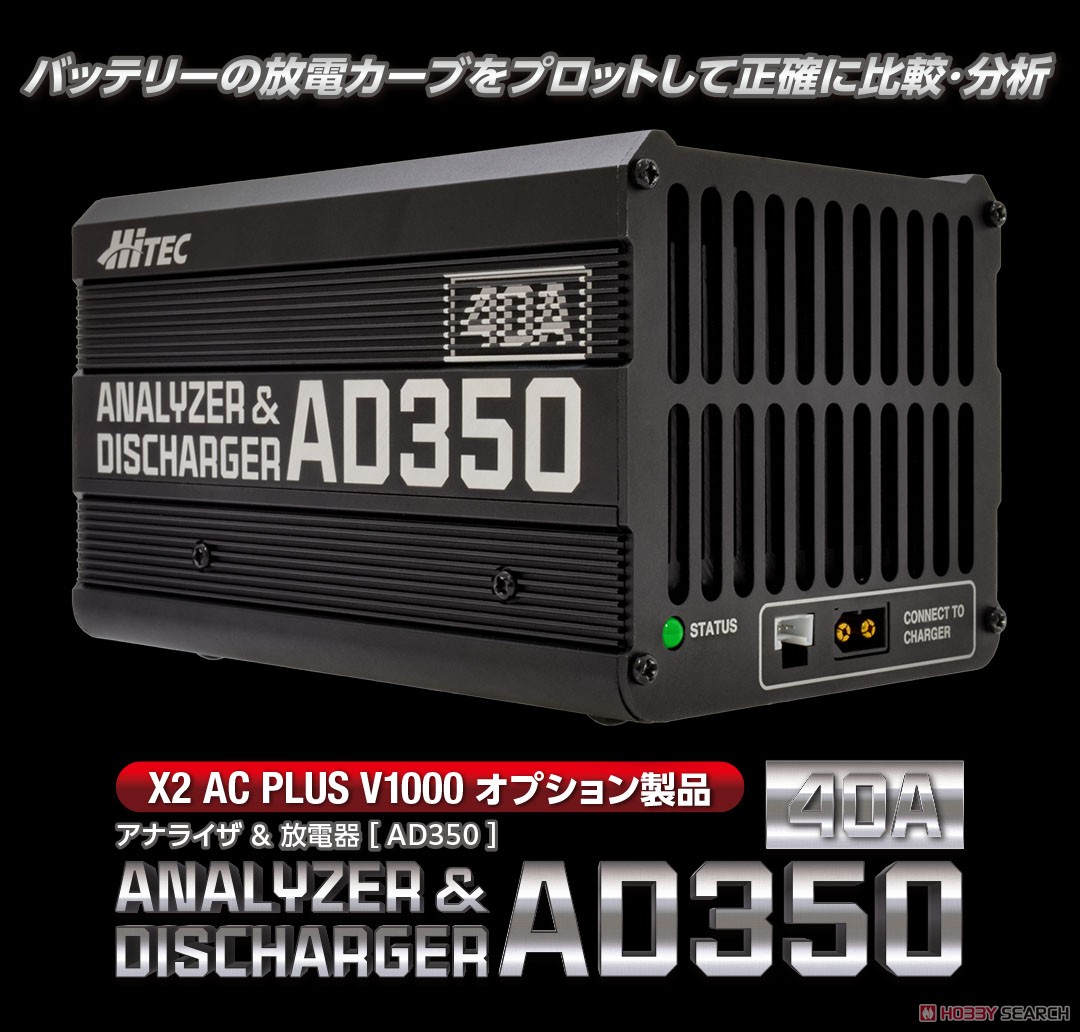

- Plot battery discharge curves for accurate comparison and analysis
- Discharge with 40A large current

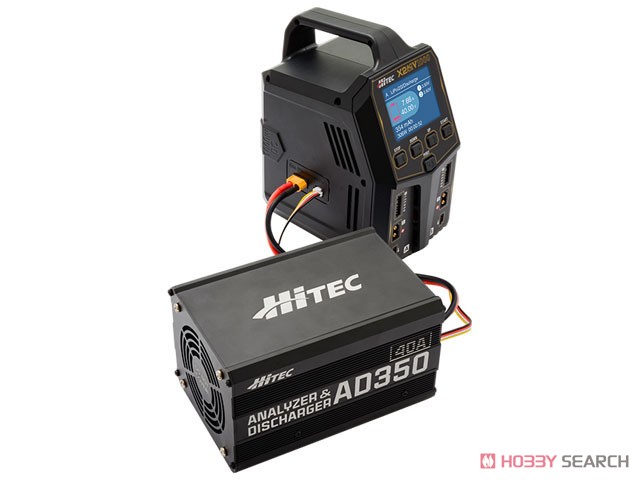

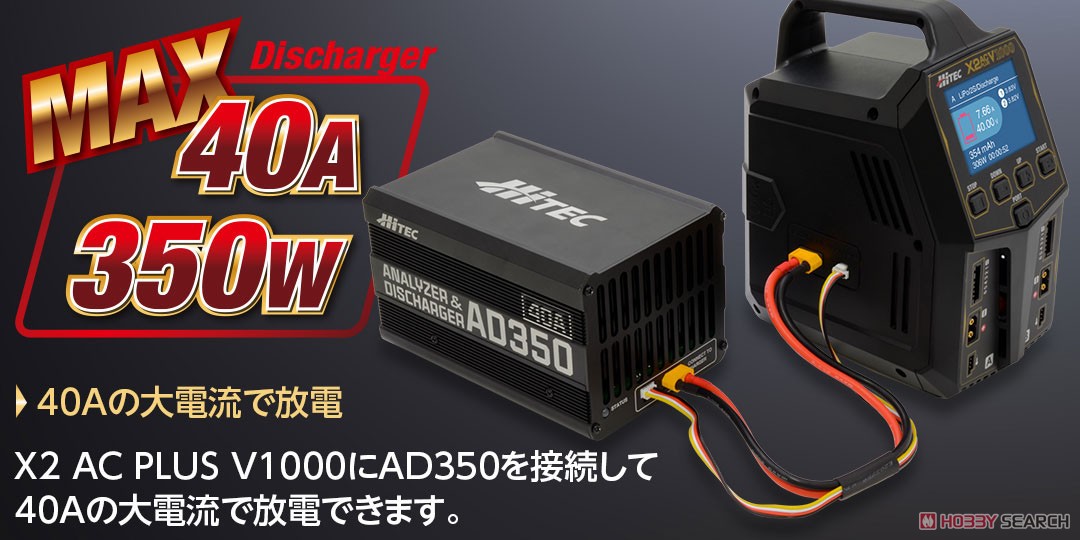

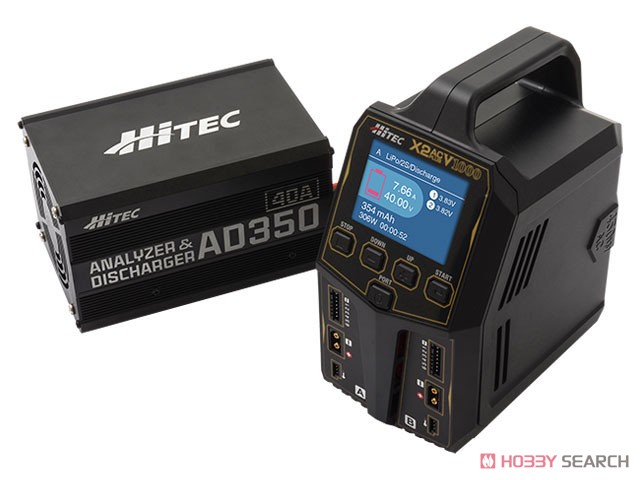

・By connecting AD350 to X2 AC PLUS 800/V1000, you can discharge with a large current of 40A.
- Rapid battery discharge under real load conditions

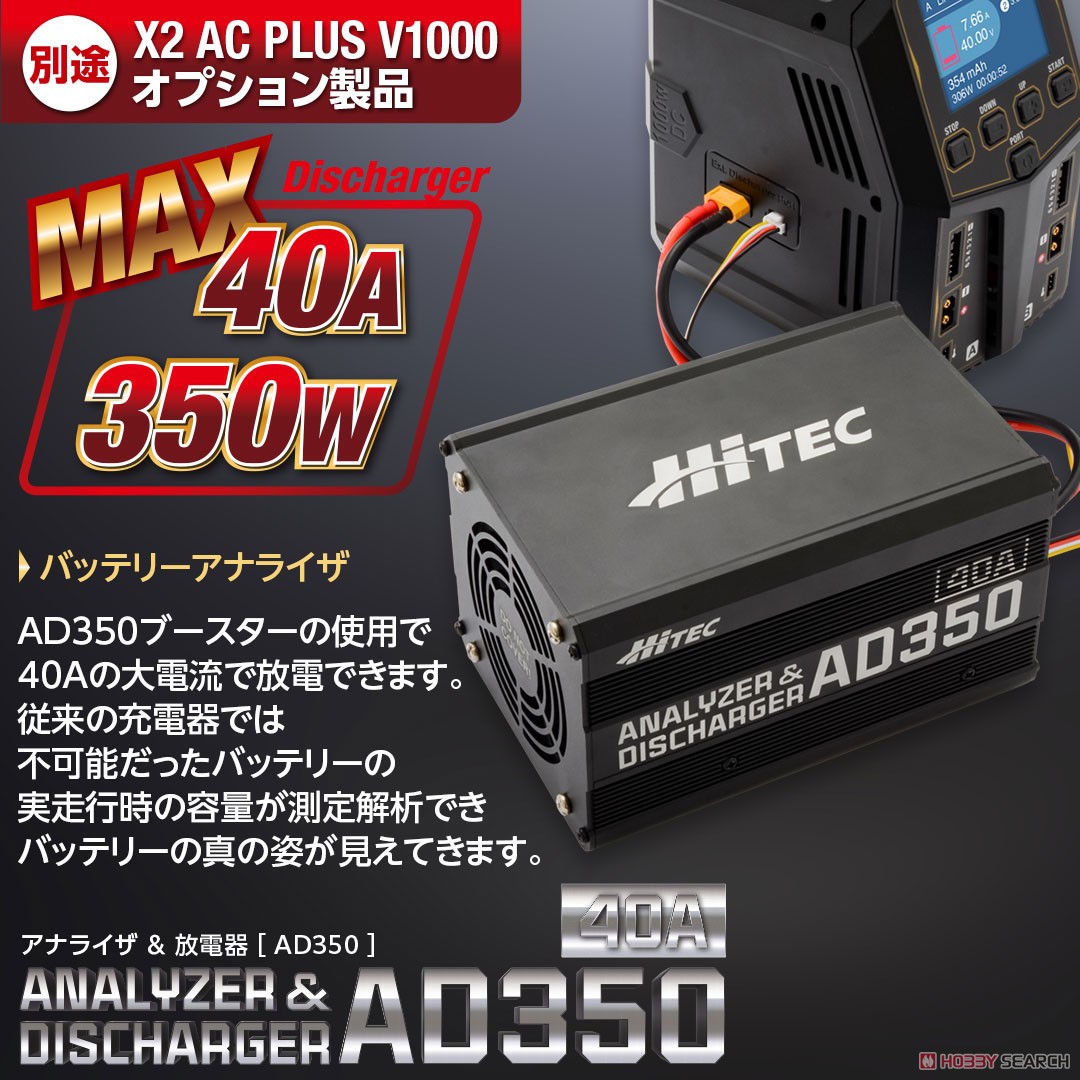

・It is possible to measure and analyze the capacity of the battery during actual driving, which was impossible with conventional chargers, and the true appearance of the battery can be seen.
[basic specifications]
- Working Voltage: DC 5V
- Discharge power: 350W
- Discharge current: 0.1~40A
- Overheat protection: 95C
- Operating temperature: 0°C to 40°C range
- Operating Humidity: 0%~75%
- Dimensions: 157 x 105 x 93mm
- Weight: 1224g
*The AD350 product is an optional product for the X2 AC PLUS 800/V1000. Cannot be used alone.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Product Specifications
- Item code
- 44326
- JAN code
- 0669962443265
Purchase Information
This item is limited to 1 per household.
