Product Description

-Reproduce the American muscle car that everyone admires with an ultra-scale body!
-Enjoy powerful driving with the 1970 Dodge Charger

- The Fazer series proposes that you can enjoy the pure driving of an R/C car, regardless of whether it is fast or slow, in combination with a body that faithfully reproduces the form of the actual car.
- The chassis of the same series, which can be said to be the most standard electric touring car in Kyosho's lineup, has undergone a full model change, and its driving performance has been further refined.
- The lightweight chassis has a simple design that is easy to maintain by reducing the number of parts. ensure high rigidity.
- In addition, by making the chassis design as symmetrical as possible, the synergistic effect of a suspension with excellent front-to-rear balance and a power source that matches the car's class has achieved straightforward handling without any peculiarities.
- On top of that, front and rear gear differentials, oil dampers, and full ball bearings are used. Ensures high durability and impact resistance to firmly support the driver.
-In addition to the standard 0mm offset brake disc type wheel hub, a (+5mm) offset wheel hub is included to support both 190mm and 200mm width bodies, and a wheelbase as an optional part (sold separately). 274mm long main chassis and long center shaft are available.
- By rearranging these parts, it is possible to install a 1/10 scale body other than the attached body.
- What's more, this readyset comes complete with everything in the factory, so you can enjoy driving immediately by purchasing the drive battery, drive battery charger, and transmitter battery separately.

- [ULTRA SCALE BODY] should be called a ``running display model'' that is thoroughly built into details as well as modeling as a car.
- Shaft-driven full-time 4WD touring chassis that is easy for anyone to handle and enjoy driving.
- Factory completed readyset that can be driven by purchasing 4 AA batteries for the transmitter, a battery for driving, and a battery charger for driving.
- Grease-filled gear differentials with 2 bevel specifications are standard equipment on the front and rear.
- Big dogbone and cup joints for increased durability and reliability.
- By fixing the battery to the belt, it is possible to install all kinds of batteries.
- Full ball bearing specification equipped with bearings that reduce drive loss in all drive parts.
- Waterproof steering servo KS202W is standard equipment.
- Factory assembled body with coloring and decals applied.
- Closed type diff & transmission that is highly reliable even in dusty parking lots.
- You can improve your driving performance by installing various optional parts.

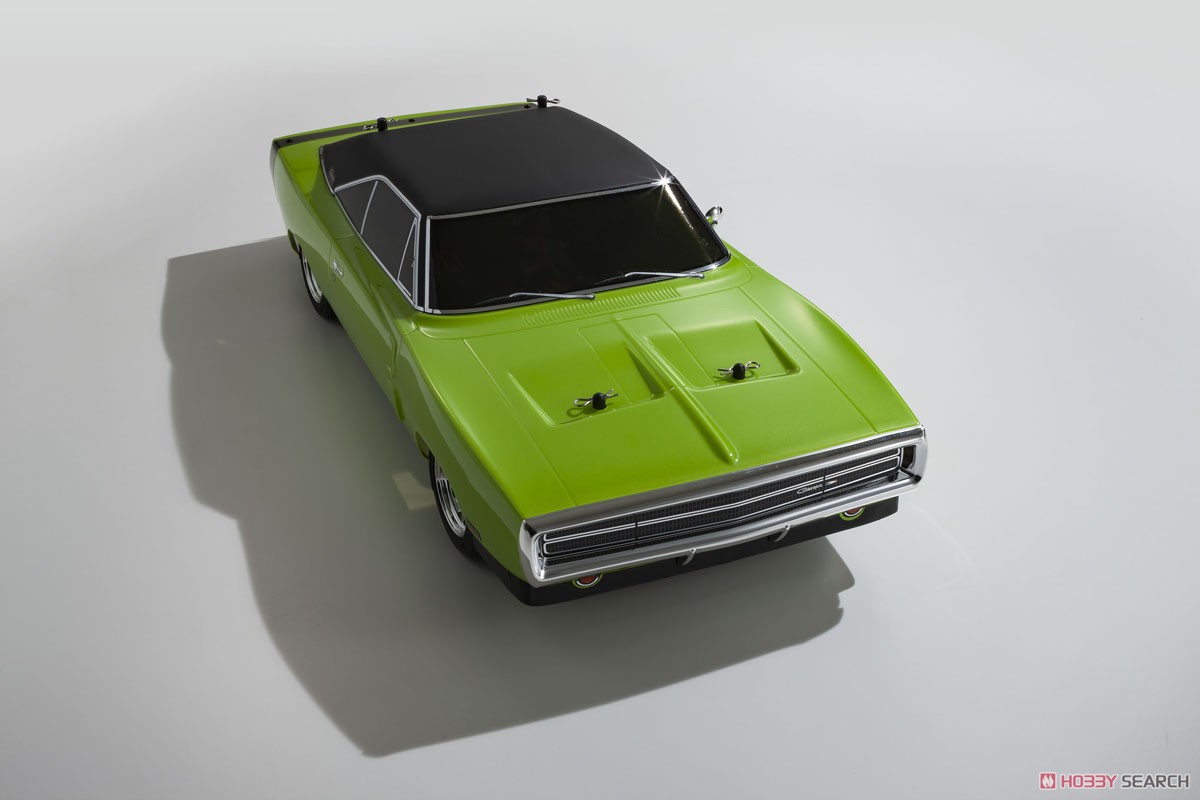

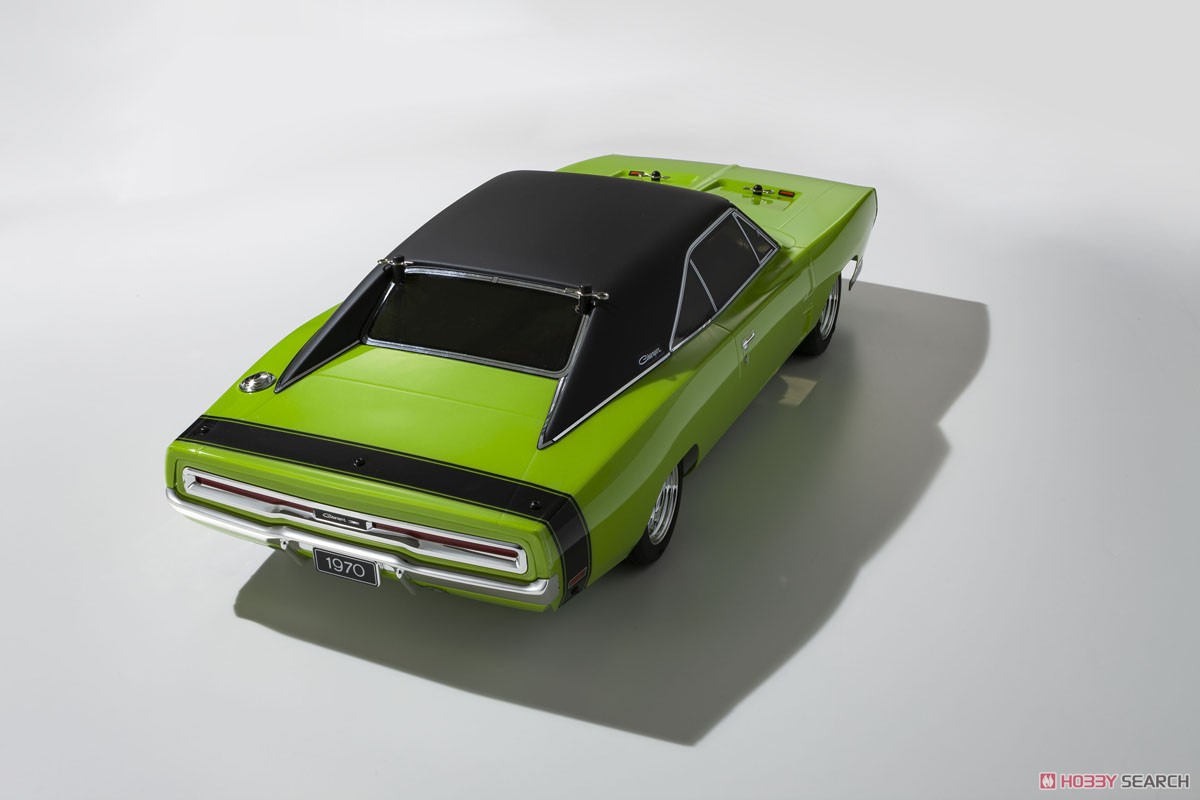

- The Dodge Charger, which is in demand for TV and movies as a representative muscle car that symbolizes the good old days of America. A semi-fastback 2-door hardtop body with concealed headlights and coke bottle lines that create a unique atmosphere that can be said to be its identity is expressed on a 1/10 scale.
- Vintage Touring Car (VTC) tires and Rostile type wheels to match your vintage car.
- A simple, functional chassis with a low center of gravity. The main chassis has an integrated gearbox that optimizes torsional rigidity, and lightweight shock-resistant nylon is used to reduce weight. An upper deckless design has been achieved with a simple yet strong design. Equipped with a speed controller [KA060-91W] boasting a large capacity of 60A and a powerful [G14L] motor as standard equipment. The battery supports Ni-MH and Li-Po.
-In addition to reducing the number and types of parts and screws used, we also standardized the size of screws for parts that are likely to be removed frequently. A flat head screw that can be removed with a 2.0mm hex wrench is used to pursue ease of disassembly and assembly.
- Front suspension optimized for handling factors such as bump steer and scrub radius. One of the features is the adoption of a simple ball-connect type steering knuckle that promises reliable operation. In addition, the front and rear hub carriers are shared on the left and right to minimize the number of spare parts on hand and improve maintainability.
-The brake disc type wheel hub that greatly contributes to the visual improvement along with the dummy caliper comes with two types with different offsets to support both 190mm and 200mm width bodies.
- 68T and 32T are the standard settings for the spur gear and pinion gear, respectively, but 9 types of pinion gears from 29T to 37T can be used to suit various motors, allowing a wide range of gear ratio settings. In addition, by directly fixing the motor at the position corresponding to the number of teeth of the pinion gear used, the trouble of backlash adjustment is reduced.
- Vintage Touring Car (VTC) tires and Rostile type wheels to match your vintage car.

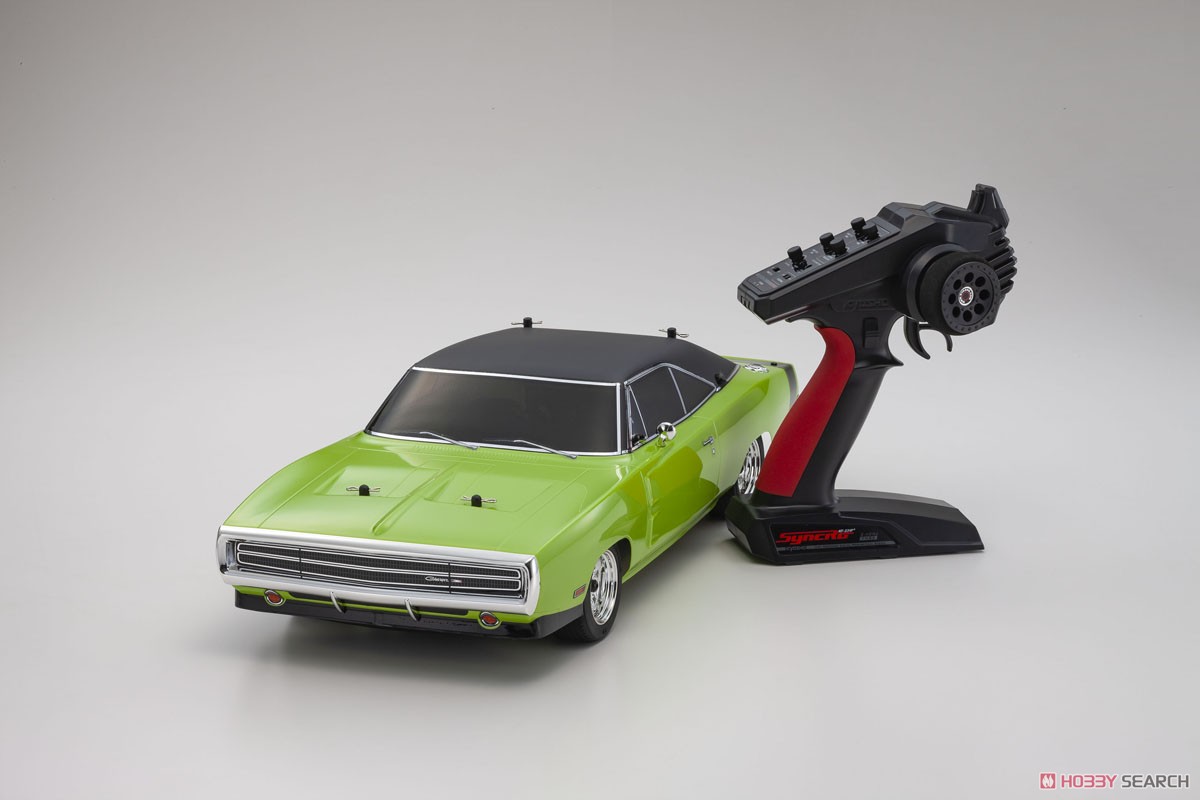

- Syncro KT-231P+ that uses 2.4GHz is included with the transmitter, which allows you to set throttle trim, steering trim, throttle EPA, and steering dual rate just by turning the dial.

[Technical data]
- Total length 507mm
- Overall width 210mm (body width *excluding mirrors)
- Height (including body) 128mm
- Wheelbase 274mm
- Tread (F/R) 167mm
- Tire (F/R) φ64×27.7mm
- Gear ratio 6.54:1
- Gross weight about 1650g
- Use radio Syncro KT-231P+
- Motor G14L

[Kit contents]
- Factory assembled chassis with R/C unit installed
- Painting, decals, pre-assembled body
- Syncro KT-231P+ transmitter
- Hex wrench
- Spanner
- Setting change parts

[What you need before running]
- 4 AA batteries for transmitter
- battery for running
・Recommended: KYOSHO SPEED HOUSE 7.2V 22HV Ni-MH Battery 71322
KYOSHO SPEED HOUSE 7.2V 36HV Ni-MH Battery 71324
Gens ace LiPo 4000 straight pack (45C/7.4V) GAB4202
- Charger for traction battery
・Recommended: KYOSHO SPEED HOUSE C-02B AC Peak Charger 72002B *Charger for Ni-MH
7.2V NiMH USB Charger 72203 * Ni-MH dedicated charger
- various tools


Item Size/Weight : 65 x 24.8 x 21 cm / 2860g

Product Specifications

Item code

34417T2

JAN code

4548565435869
