Product Description

――A multifunctional charger/discharger equipped with a dedicated program that's perfect for the MINI-Z, from beginners to racers

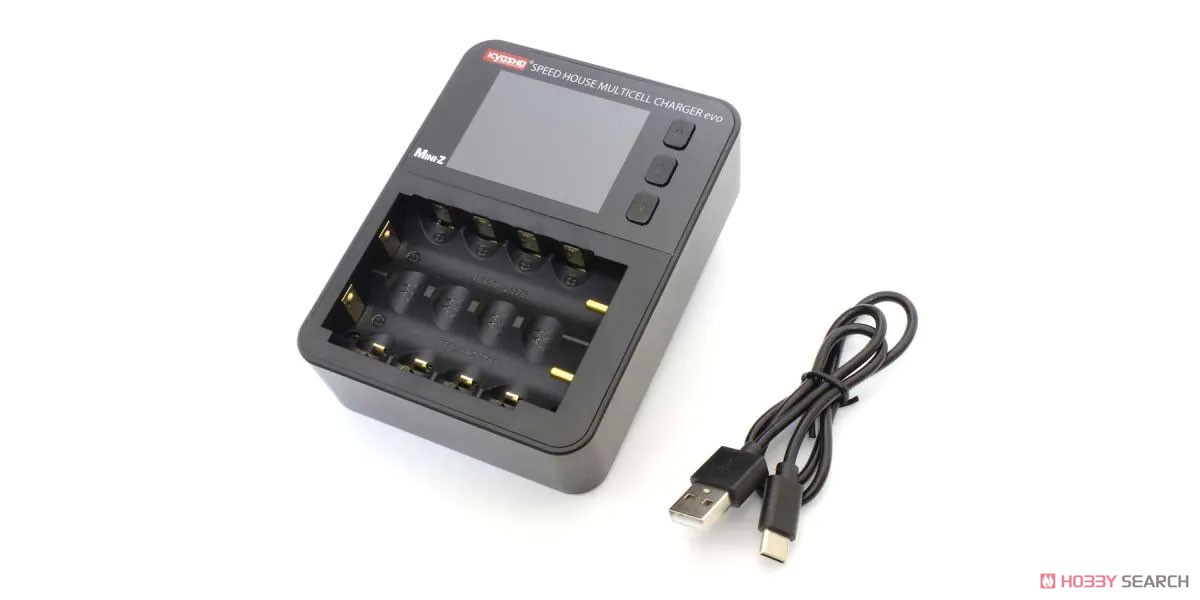

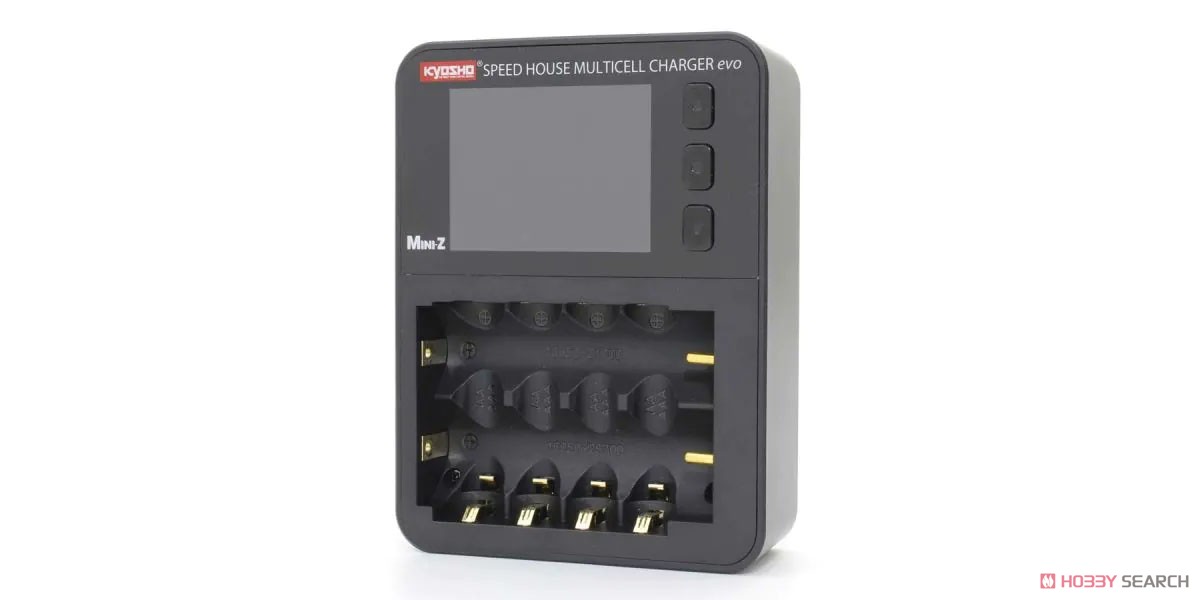

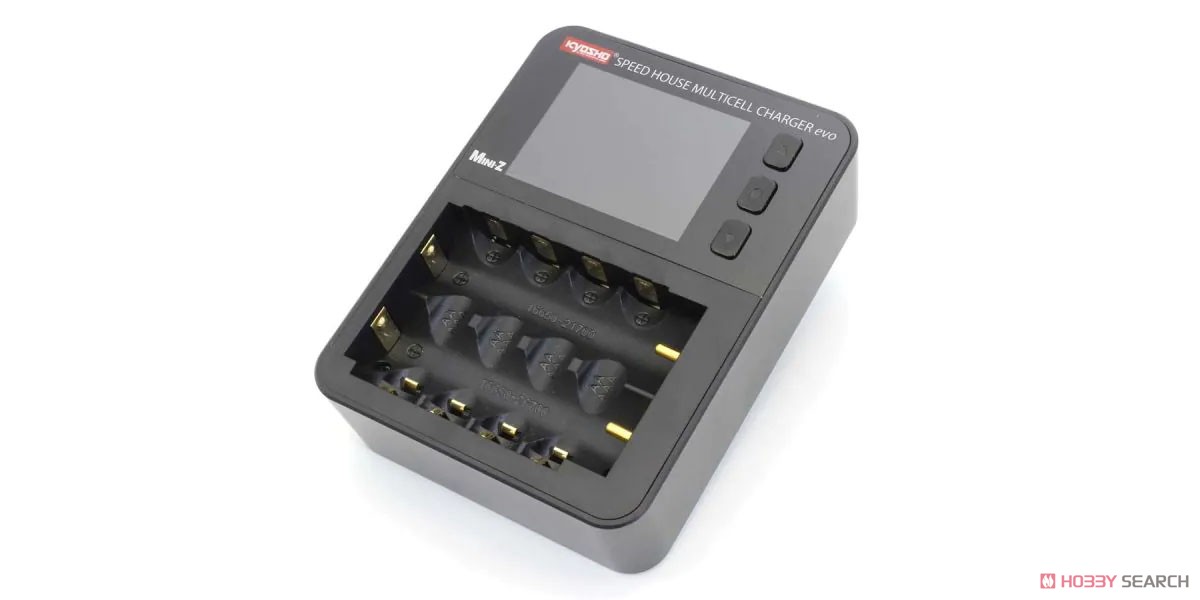

- The multi-cell charger EVO is compact enough to fit in the palm of your hand, and is the perfect multi-functional charger/discharger for the Mini-Z, from leisure enthusiasts to racers who want to maximize battery performance.
- Its greatest feature is that it has a total of 5 operating modes: charge/discharge/cycle/analysis/activation suitable for battery charging/discharging and management. (maximum 1.5A*) / discharge current (maximum 1.0A*) / delta peak cutoff voltage (3mV to 15mV) can be set arbitrarily.
- In addition, these setting values are not canceled unless the charger is turned off and are applied to all slots, so there is no need to make troublesome settings each time you charge or discharge.
- The input power terminal uses USB Type-C, which can be easily supplied from a mobile battery.

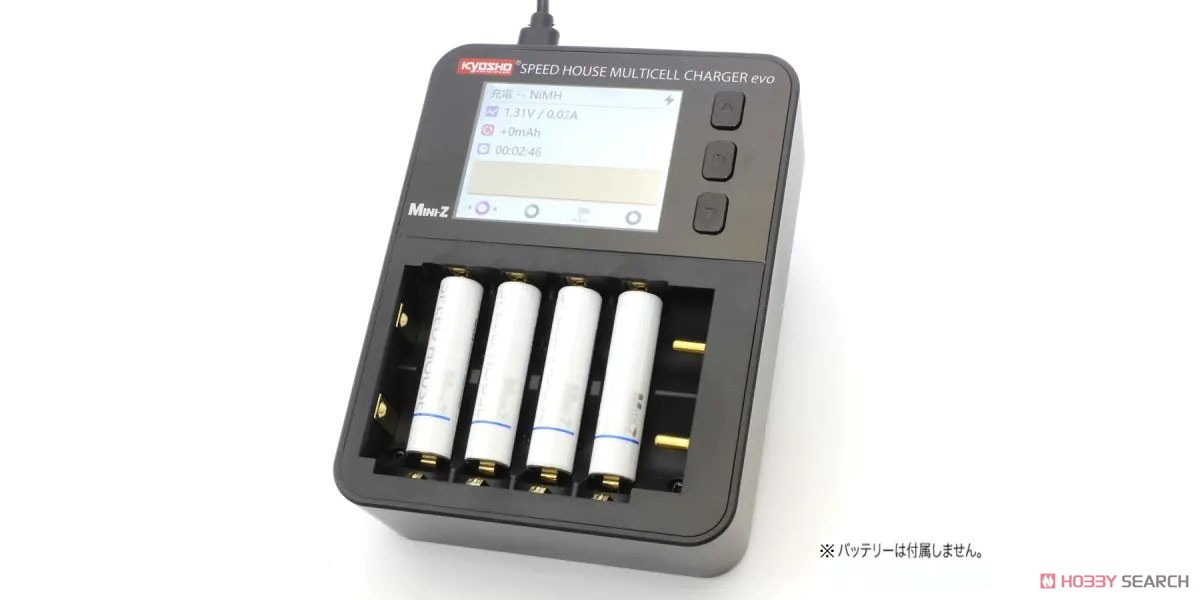

- (Quick Charge or Power Delivery recommended) In addition to that, it is a multi-cell charger equipped with various functions, but it has various protection functions such as reverse connection protection / over temperature protection circuit / over capacity protection function, and just put the battery in the slot It has a function that automatically detects the battery type and automatically starts charging (if the settings are not changed manually), so even beginners can use it with confidence.

*When using AAA Ni-MH batteries

[Original function only for SPEED HOUSE]
- You can set the charging capacity and stop charging when the battery reaches the specified capacity.
- You can set the charging voltage and stop charging when the battery reaches the set voltage.
- Record the discharge average voltage during discharge. By setting the discharge time arbitrarily, it is possible to select batteries with strong discharge power according to the expected running time.
- Configurable charge/discharge cycle from 1 to 30 times

[Precautions when using a multi-cell charger]
- Beginners should always use the default charging current and delta peak cutoff voltage. These two settings are for advanced users, and incorrect settings may damage the battery.
- The discharge current can be set up to 1.0A, but the resistance is fixed, so it decreases according to the voltage.
- You can use XX650 lithium-ion batteries up to about 70mm in length equipped with a safety device. Batteries longer than this will not fit into the slot and cannot be charged.

[Kit contents]
- Charger body
- operating instructions

[What you need before running]
- USB AC adapter
・Quick Charge 3.0 compatible Output of about 18W or more recommended
・Power Delivery (RD) output of about 20W or more recommended


Item Size/Weight : 16 x 11.3 x 4 cm / 266g

Product Specifications

Item code

72012

JAN code

4548565406647
