Product Description
- 1/80 JR Hokkaido 733-3000 series paper kit
-The 733 series is a suburban train that started commercial operation in JR Hokkaido in 2012.

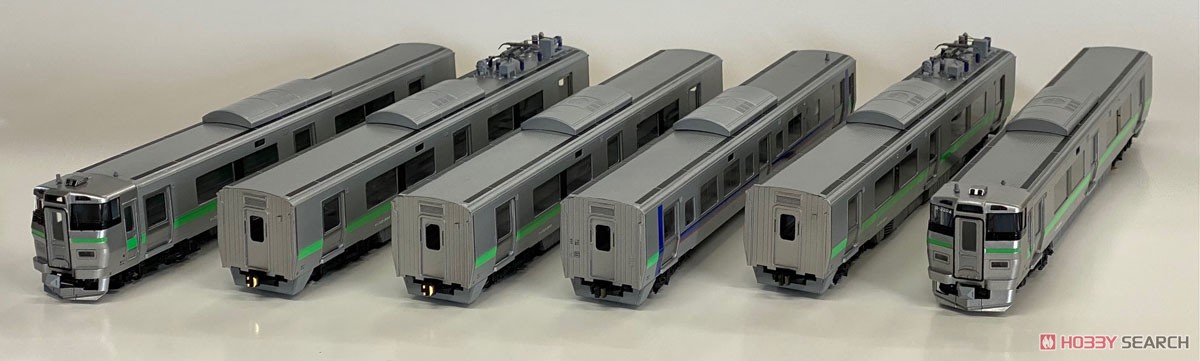

- Among them, the basic number (100 series) that is active as a local train in the suburbs of Sapporo. We will commercialize the 3000 series that is active as a rapid airport.

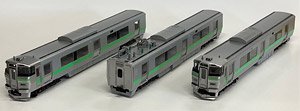

- The 100 series is a 3-car set, and the 3000 series is a 6-car set.
- It is a paper car body kit that has been cut by laser processing.
- Even though it is a handy kit, it reproduces the finest details as much as possible.
- The characteristic bogie of the low-floor car is reproduced by 3D printing.
- This item requires assembly and painting.
[Kit contents]
- Body, underfloor equipment: paper, 3D printing (resin)
- Floor board, window glass: acrylic
-Other roof parts, etc.: 3D printing (resin)
- Seals and decals such as obi and notation
[The following parts are required separately. ]
- running around
・TOMIX HOT15 TR62 roller shaft x 4
・TOMIX HOT14 DT21B roller shaft x 4
* Please choose whichever TR62 or DT21B you like.
- Tenshodo coreless power tiger 26P φ10.5P x 4
- Coupler (Please select the coupler as you like)
・ IMON IS002 IS Coupler K x 5
・ IMON ISb expansion coupler × 5
・ IMON coupler HO265 × 1
* Use the HO265 IMON coupler on the top side. This coupler can also be used in the middle part.
- others
・ Pea cabroid (for front curved window)
・TOMIX HOP25 PS79 ED79 x 2
・ Pan head machine screw M2 x 5 mm x 24 (for fixing the car body)
・ Machine screw M2 x 4 mm x 24 (for fixing coupler)
・ Machine screw M1.4 x 4 mm x 24 (for fixing coupler)
*Only when using IS coupler
- Additional parts of your choice
・Echo model car side indicator light
・0.4mm brass wire
・0.2mm brass wire
*The material is unpainted. Painting is required after assembly.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Product Specifications
- Item code
- Hs054
- JAN code
- 4582485421557
Purchase Information
This item is limited to 20 per household.
