Product Description

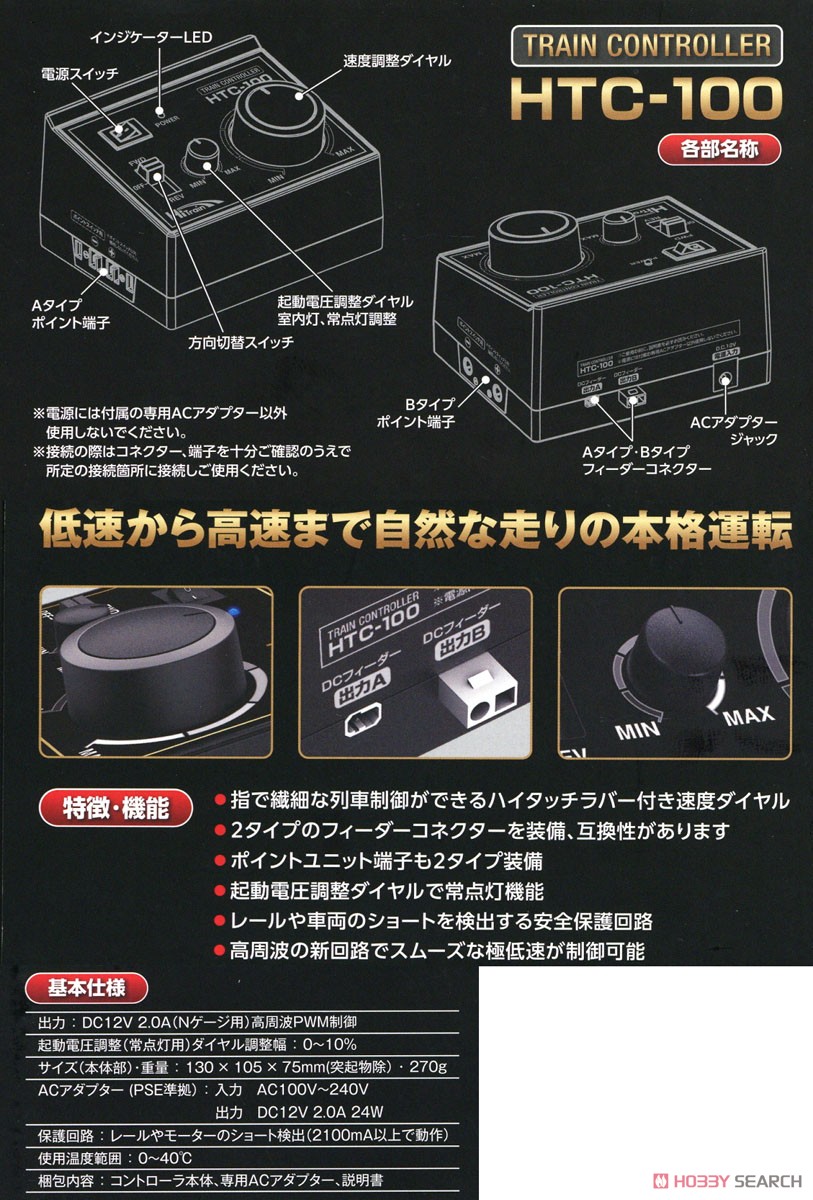

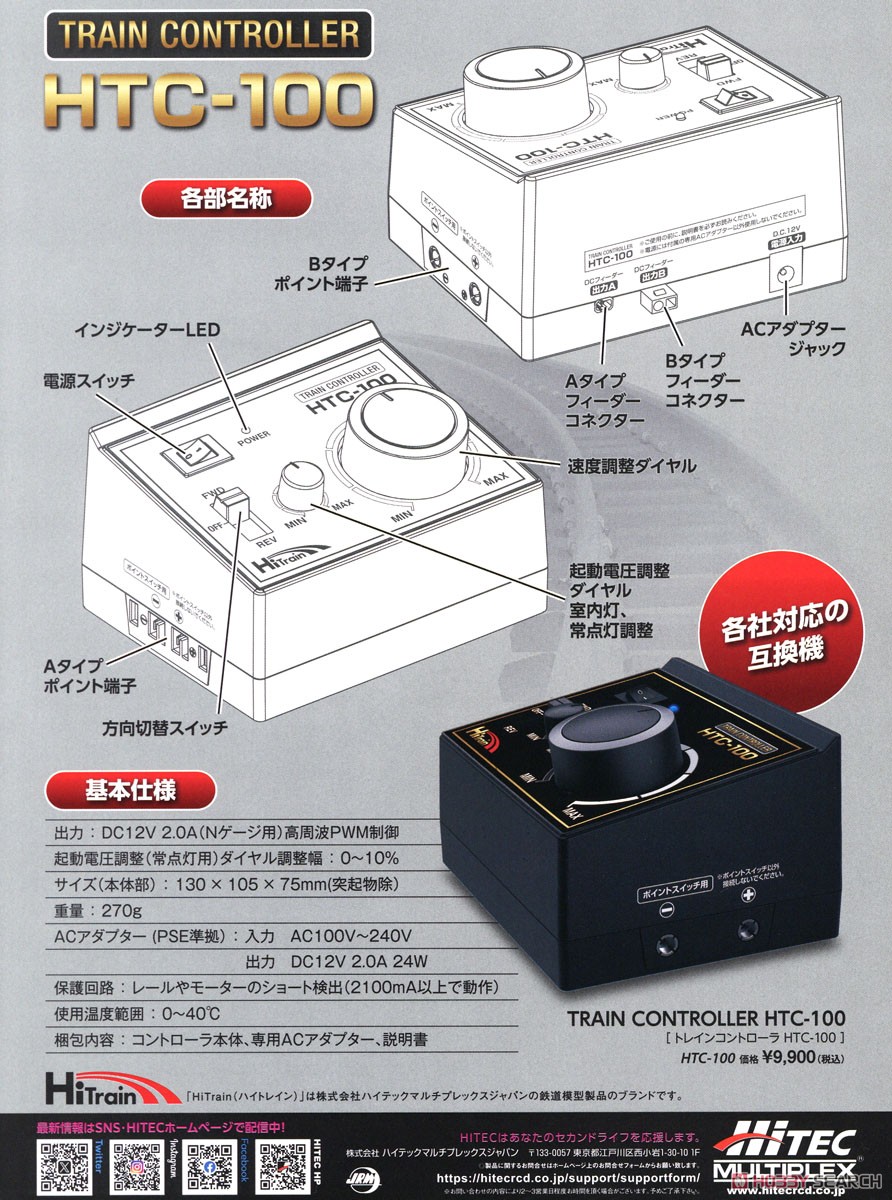

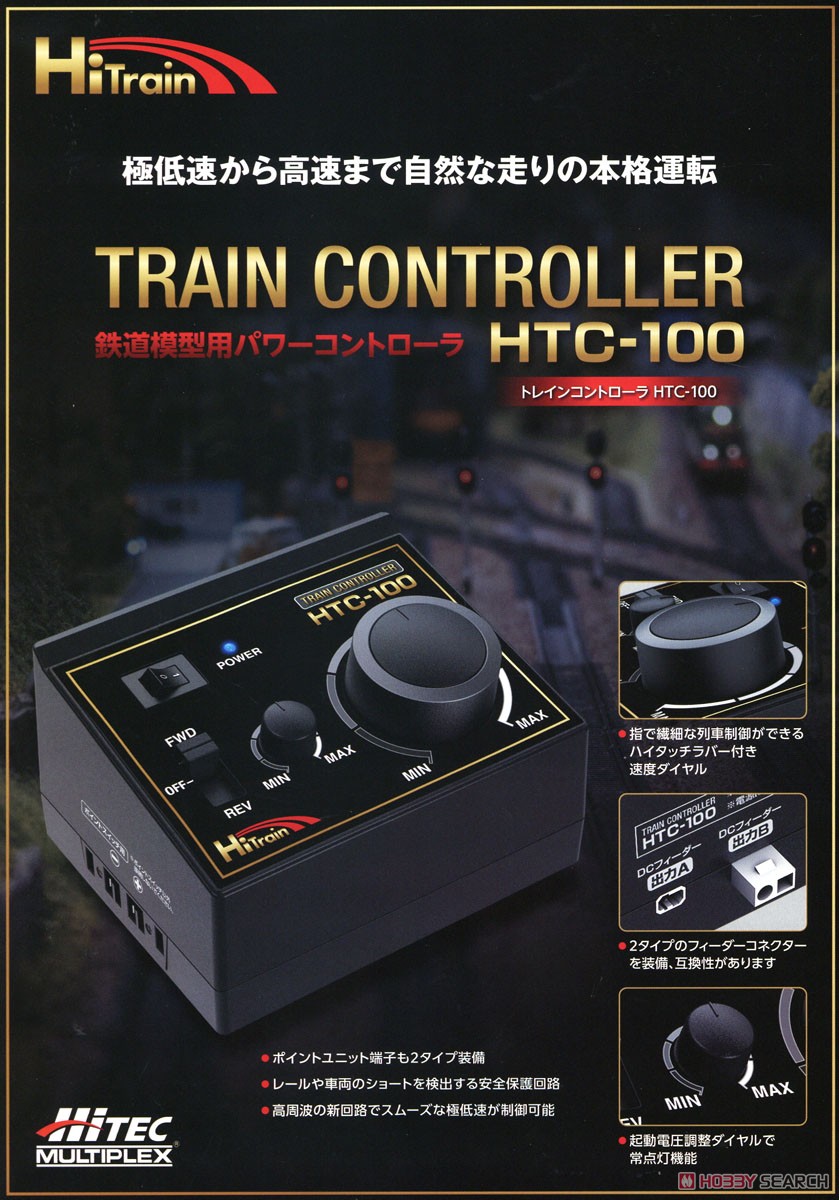

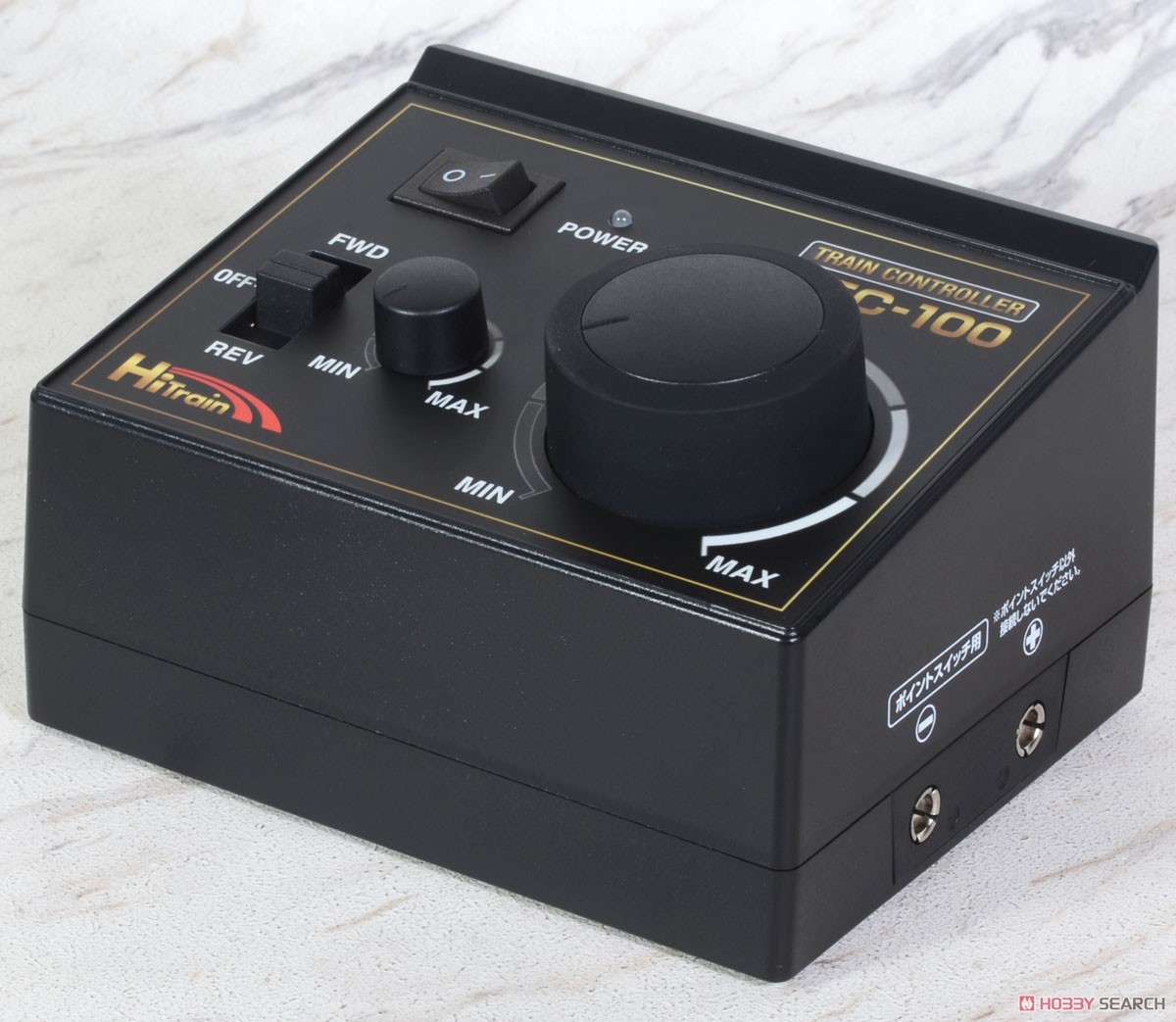

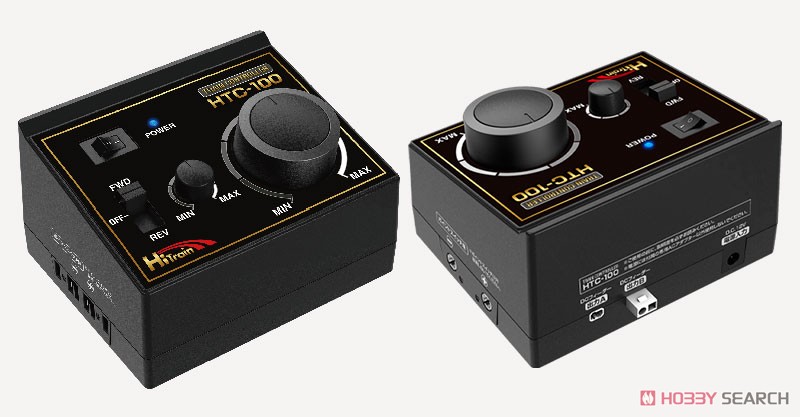

- Power controller for model railways

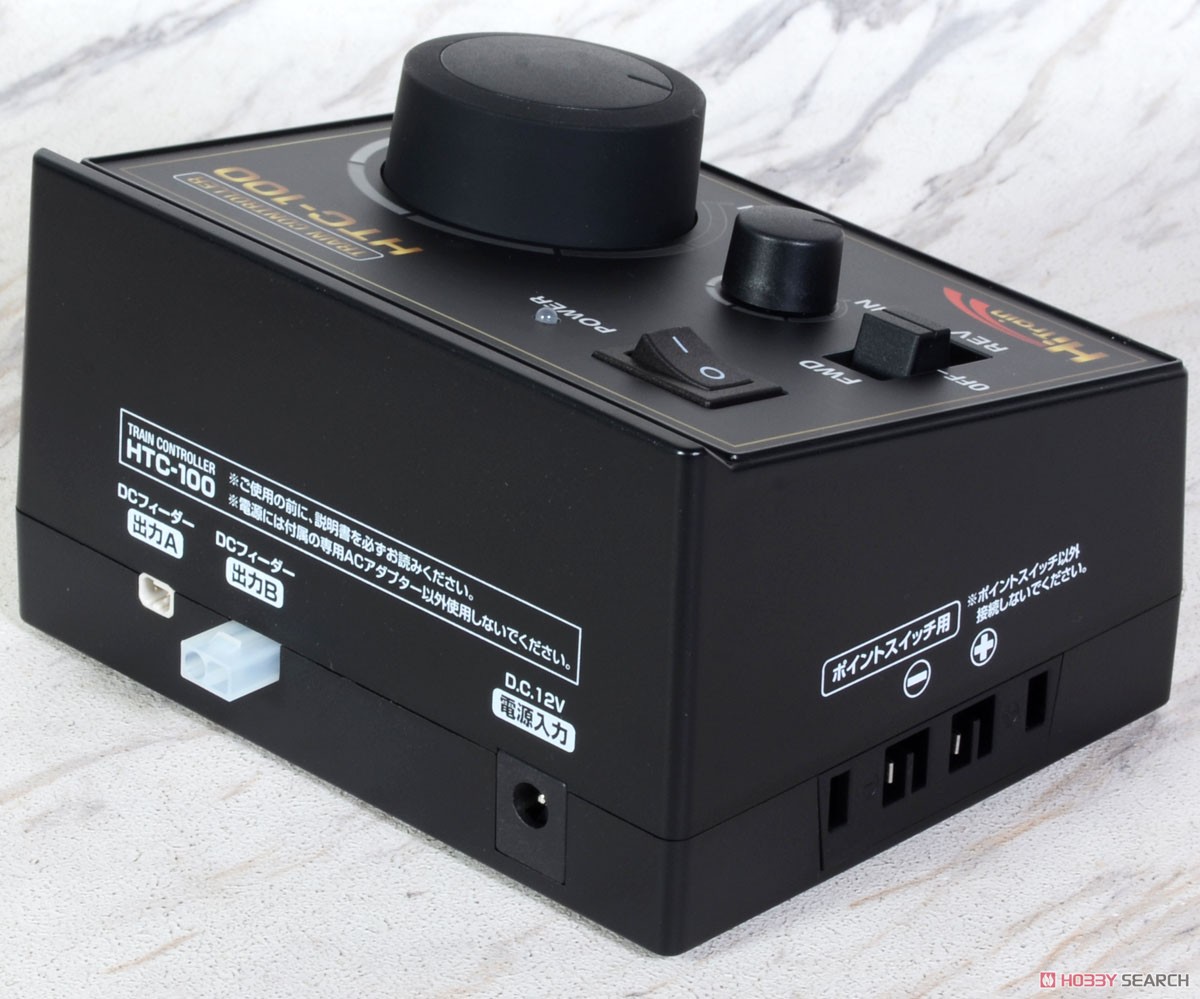

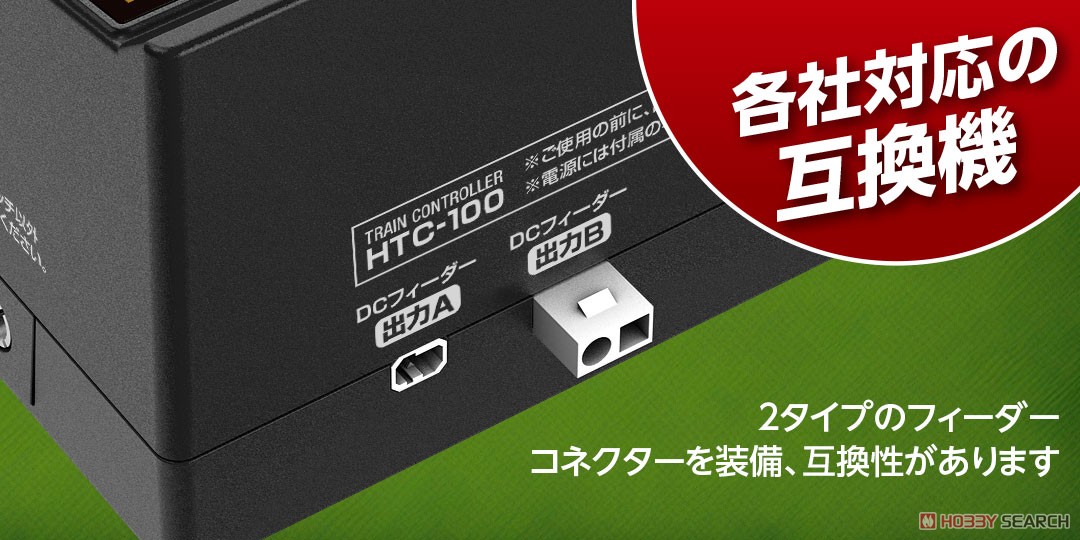

- Equipped with 2 types of feeder connectors, compatible

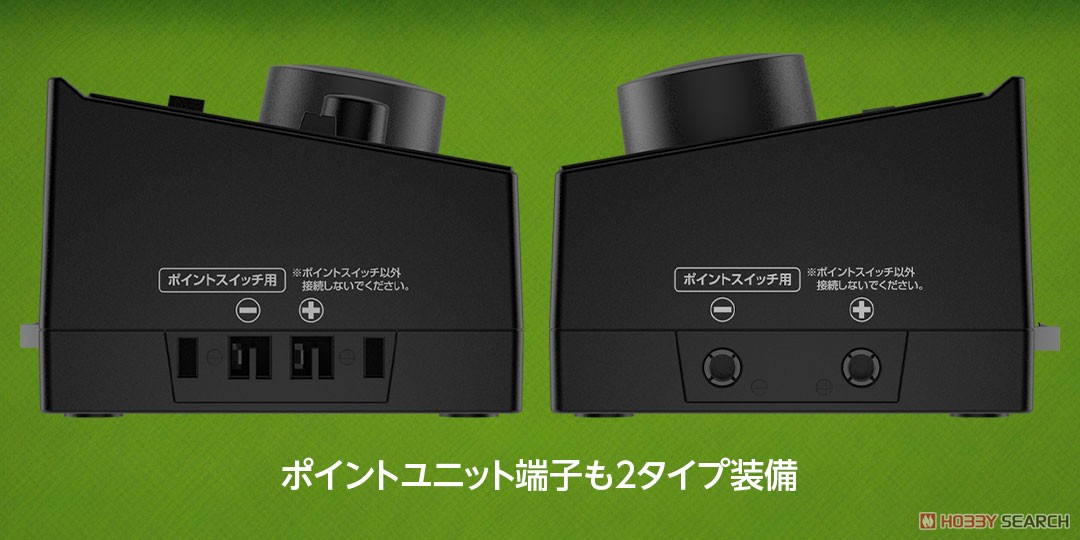

- Equipped with 2 types of point unit terminals
- Constant lighting function with starting voltage adjustment dial

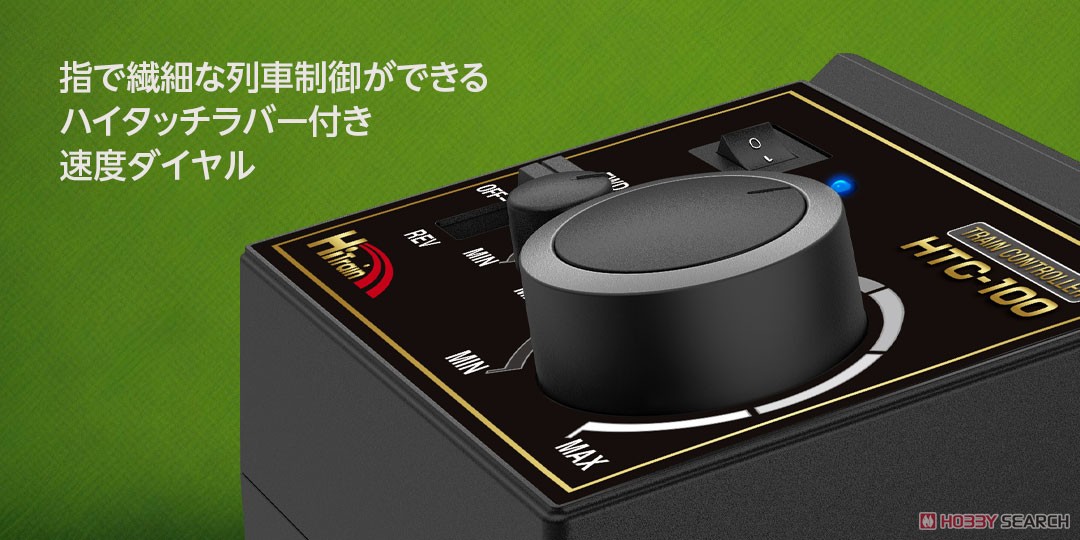

- Speed dial with high-touch rubber for delicate train control with your fingers

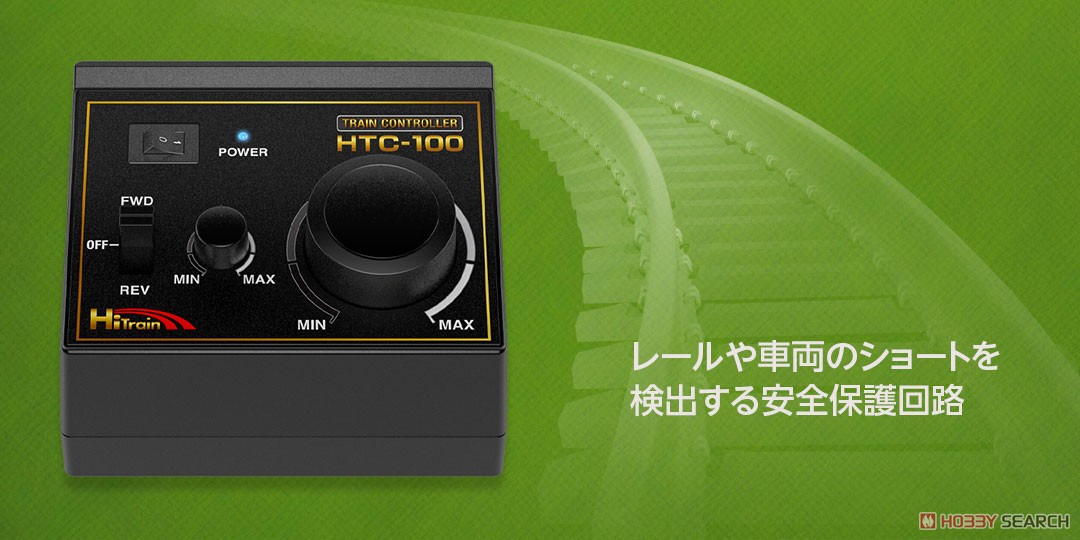

- Safety protection circuit that detects short circuits in rails and vehicles

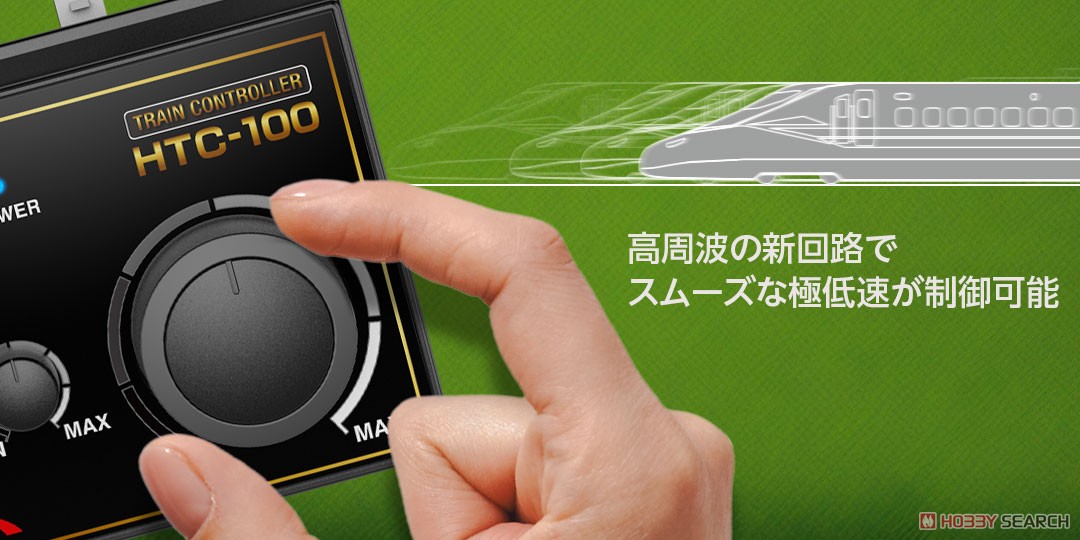

- New high-frequency circuit allows smooth extremely low speed control

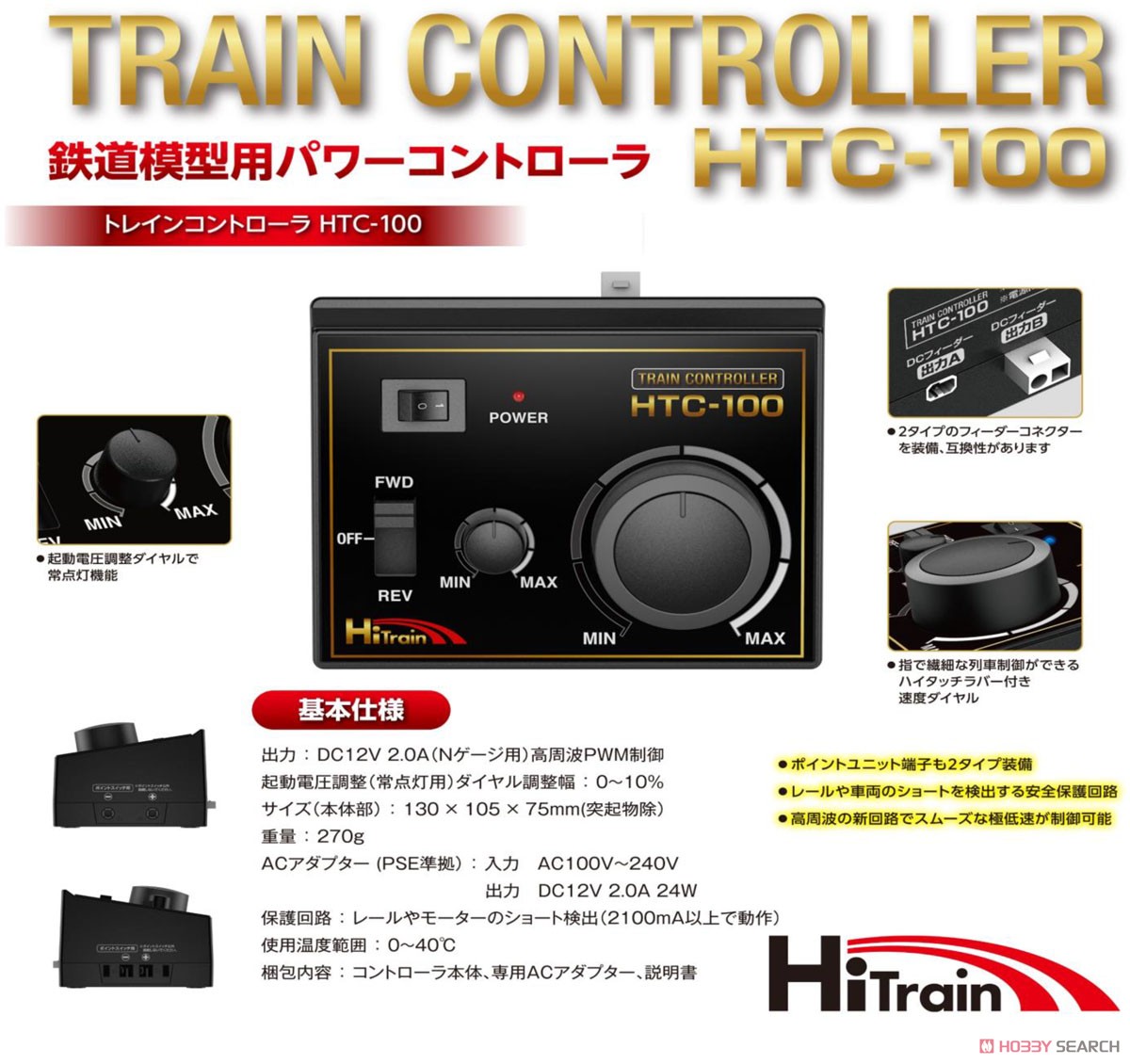

[basic specifications]
- Output: DC12V 2.0A (for N gauge) high frequency PWM control
- Starting voltage adjustment (for constant lighting) dial adjustment width: 0 to 10%
- Size (main body): 130 x 105 x 75mm (excluding protrusions)
- Weight 270g

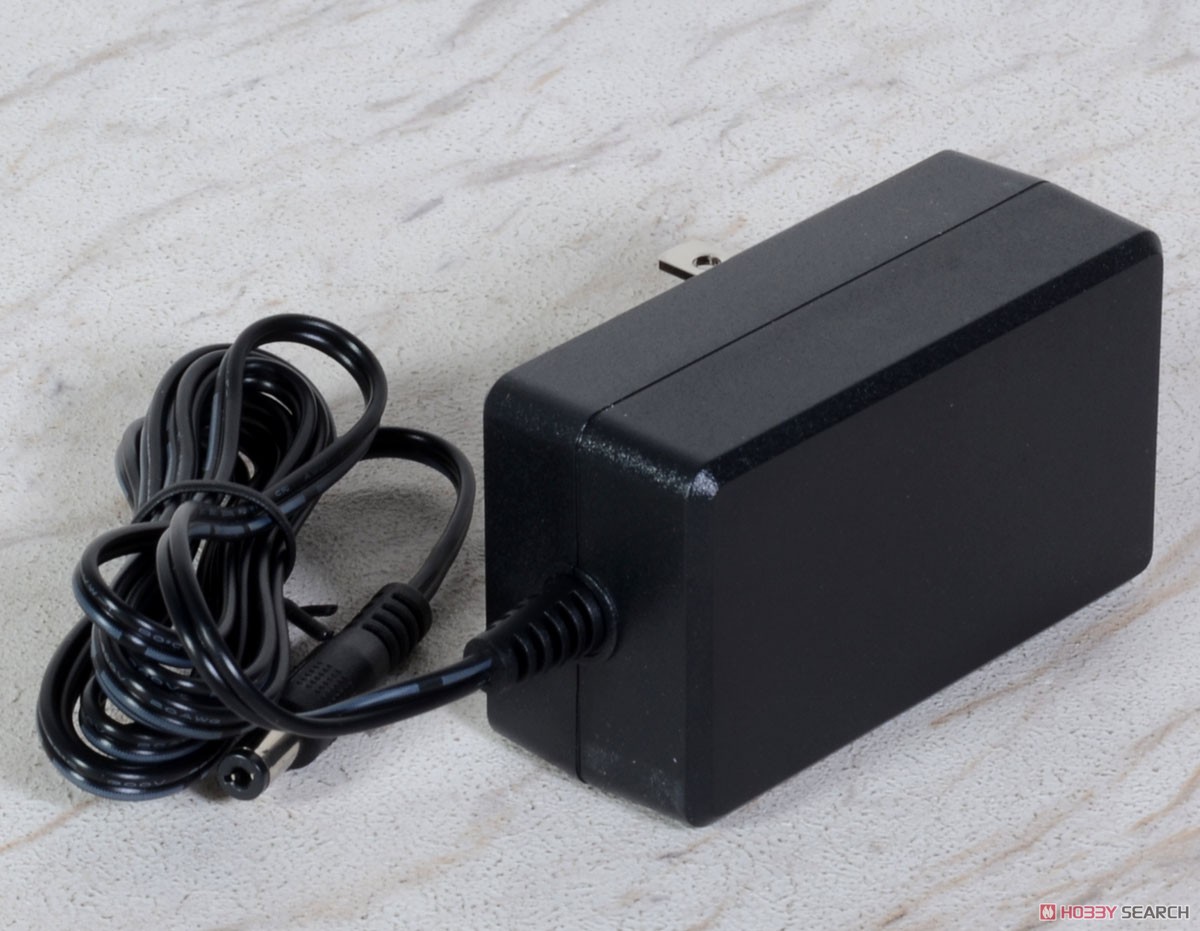

- AC adapter (PSE compliant)
・Input AC100V~230V
・Output DC12V 2.0A 24W
- Protection circuit: Rail and motor short detection (operates at 2100mA or more)
- Operating temperature range: 0~40℃

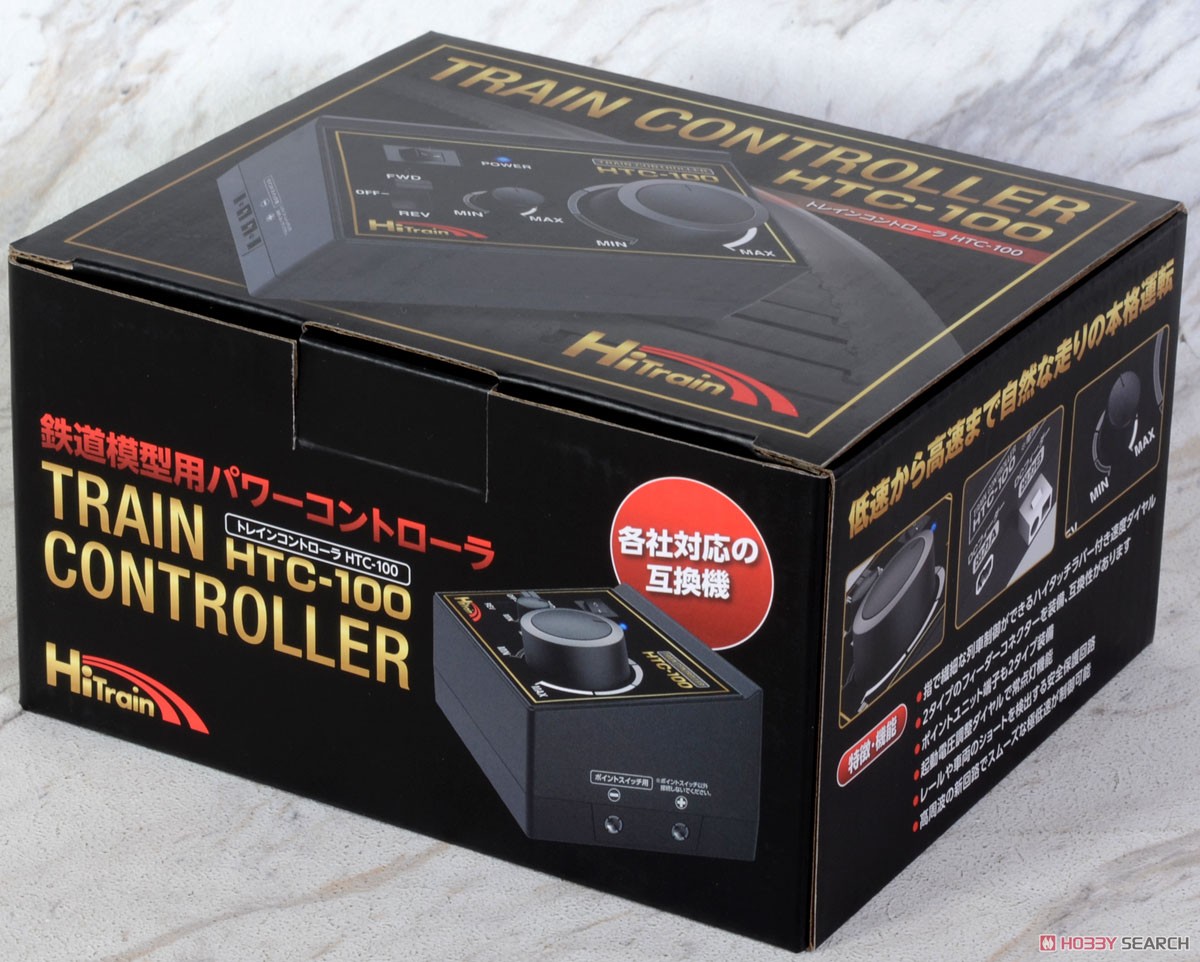

[set content]
- Controller body
- Dedicated AC adapter
- Instructions
- [HiTrain] is a brand of railway model products produced by Hitech Multiplex Japan Co., Ltd.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
*Press Release has been posted on Web site of Hitec Multiplex Japan.
*Product Information has been posted on Web site of Hitec Multiplex Japan.
Item Size/Weight : 16.3 x 13.9 x 9 cm / 455g
Product Specifications
- Item code
- HTC-100
- JAN code
- 4573557709475
