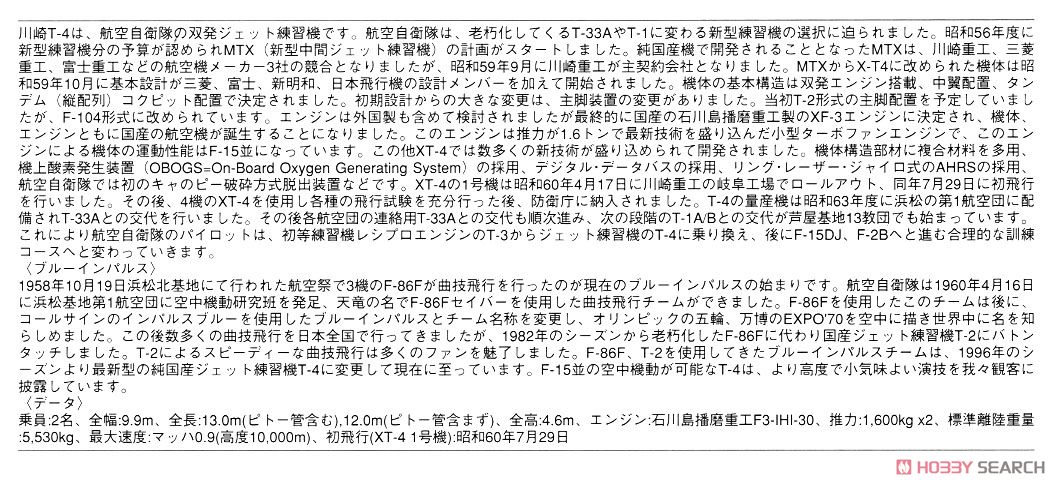

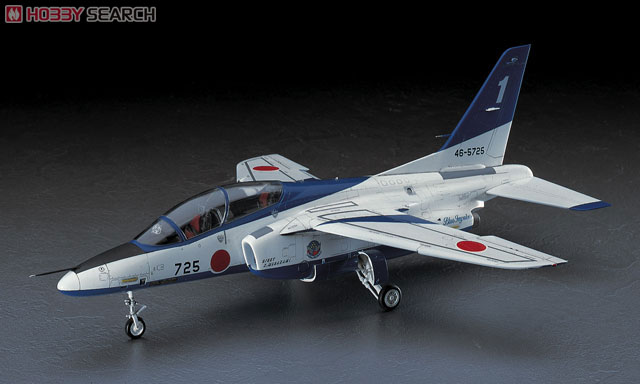

Product Description

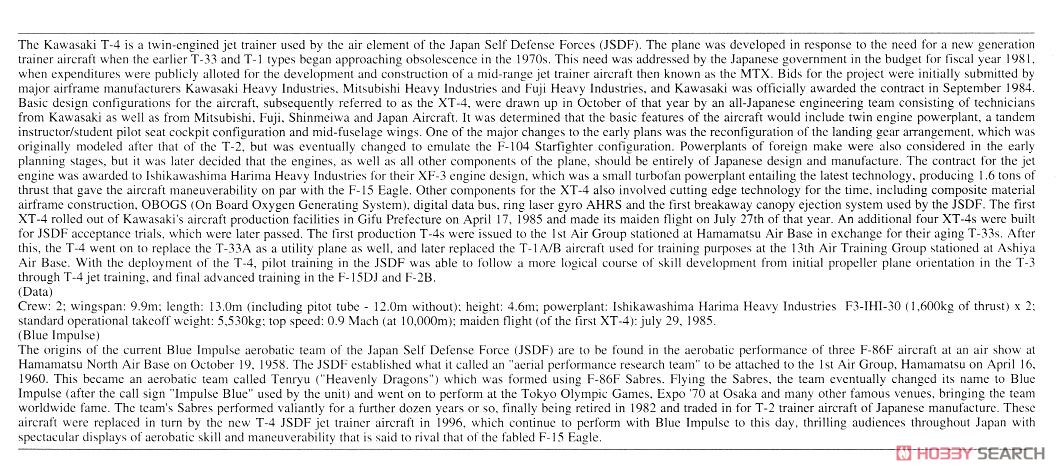

-The Kawasaki T-4 is a twin-engine jet trainer of the JASDF.
-The Air Self-Defense Force was forced to choose a new training aircraft that would replace the aging T-33A and T-1.
-In 1981, the budget for the new training aircraft was approved, and the plan for MTX (new intermediate jet training aircraft) started.
-MTX, which was developed as a purely domestic machine, competed with three aircraft manufacturers such as Kawasaki Heavy Industries, Mitsubishi Heavy Industries, and Fuji Heavy Industries, but Kawasaki Heavy Industries became the main contract company in September 1984. It was
-The basic design of the aircraft that has been changed from MTX to X-T4 was started in October 1984 with the addition of design members for Mitsubishi, Fuji, Shinmeiwa and Japanese planes.
-The basic structure of the airframe was decided by twin engine installation, middle wing arrangement, tandem (longitudinal arrangement) cockpit arrangement.
-A major change from the initial design was a change in the main landing gear.
-Initially planned to be T-2 format main landing gear, but it has been changed to F-104 format.
-Engines were considered including those made in foreign countries, but finally it was decided to be the domestically produced XF-3 engine made by Ishikawajima Harima Heavy Industries, and it was decided that a domestically produced aircraft will be born for both the aircraft and the engine.
-This engine is a small turbofan engine with thrust of 1.6 tons and incorporating the latest technology, and the motion performance of the aircraft with this engine is similar to F-15.
-In addition to this, the XT-4 was developed incorporating many new technologies.
-Heavy use of composite materials for airframe structural members, adoption of on-board oxygen generator (OBOGS=On-Board Oxygen Generating System), adoption of digital data bus, adoption of ring laser gyro AHRS, first in the Japan Air Self-Defense Force This is a pea crushing method escape device.
-The first XT-4 was rolled out at Kawasaki Heavy Industries' Gifu factory on April 17, 1985, and made its first flight on July 29, 1985.
-After that, after various flight tests were fully performed using four XT-4, it was delivered to the Defense Agency.
-The mass production model of T-4 was deployed to the 1st Air Wing in Hamamatsu in 1988 and replaced with T-33A.
-After that, the replacement of each air wing with the contact T-33A also progressed sequentially, and the replacement with T-1A/B at the next stage has also started at Ashiya Base 13 cult.
-As a result, the Air Self-Defense Force pilot will change to a rational training course that will change from the primary training aircraft reciprocating engine T-3 to the jet training aircraft T-4 and later to F-15DJ, F-2B. I will.

[Blue Impulse]
-The current Blue Impulse began with the aerobatic flight of three F-86Fs at the air festival held at Hamamatsukita Station on October 19, 1958.
-The Japan Air Self-Defense Force launched an aerial mobility research group on April 16, 1960, at the Hamamatsu Base No. 1 Air Wing, and formed an aerobatic team using F-86F Saber under the name of Tenryu.
-This team using the F-86F later changed the name of the blue impulse using the call sign Impulse Blue and the team name, drawing the Olympic Games EXPO '70 in the air and making it known to the world It was
-After this, I have performed many aerobatics all over Japan, but I replaced the old F-86F from the 1982 season with a baton touch on the domestic jet trainer T-2.
-Speedy aerobatic flight by T-2 attracted many fans.
-The Blue Impulse team, which has been using the F-86F and T-2, has changed to the latest purely domestic jet trainer T-4 from the 1996 season, and has reached the present.
-The T-4, which is capable of aerial maneuverability similar to the F-15, is showing a more advanced and cool performance to the audience.

[data]
-Crew: 2 people
-Overall width: 9.9m
-Total length: 13.0m (including Pitot tube), 12.0m (not including Pitot tube)
-Overall height: 4.6m
-Engine: Ishikawajima Harima Heavy Industries F3-IHI-30, thrust: 1,600kg x2
-Standard takeoff weight: 5,530kg
-Maximum speed: Mach 0.9 (altitude 10,000m)
-First flight (XT-4 Unit 1): July 29, 1985


Item Size/Weight : 36.2 x 19.4 x 7.3 cm / 401g

Product Specifications

Item series

Hasegawa-PT

Country

Japan

Item code

07216

JAN code

4967834072169
