※ This product, please use your understanding well how to use it. The layout of your thoughts in your own
The question of if you want to use, please note that we can not answer.

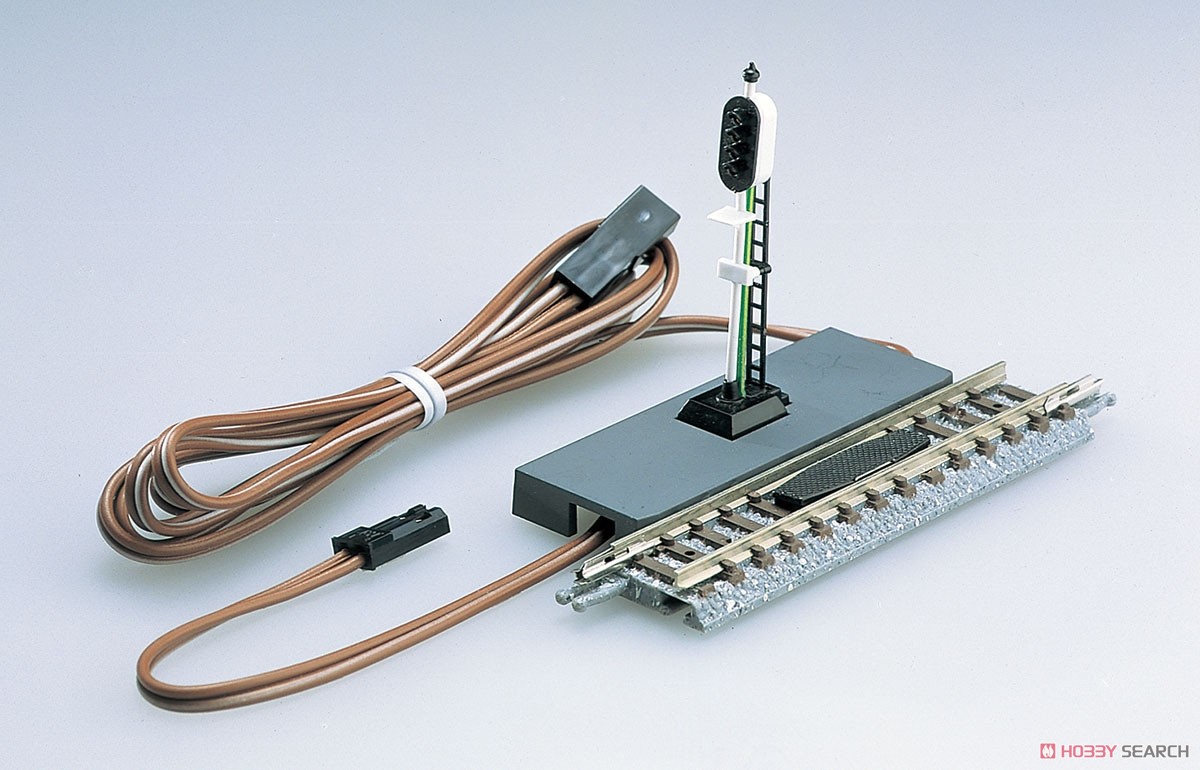

System traffic light]
- Tomix color light signal of various types has aligned two-lamp to light from the equation 5,
Light changes color according to the progress of any train, opposite to the direction of travel of the train
If is the only red lighting.
- It should be noted that, since each signal to operate alone, to the place where I want to install, free to any number of
also can be installed, is a big attraction.
[Characteristics of various signal]
- Upon completion of the train passing through the sensor, in order to switch display color light. In addition, the train
By counting the lap time, switch time varies.
- If the direction opposite to the direction of travel of the train, [red] lights as the real thing.
- By switching mode, when the electricity is off of the rails will be displayed, but the [red] is possible.
- Mode switching is possible to [(※) Display speed depression] that has been adopted by some of the railway
(Only for display type deceleration signal signal-lamp and 4-lamp 5).
- All in order to operate independently, can be expanded to signal a plurality of signal.
- Connector for the ceremony, the wiring connection is easy.
- To detect metal train wheels touching the sensor part, because of the touch-sensitive,
Can also be used in dark places. (Does not detect plastic wheels)
※ speed display and depression:
As shown in the signal that is employed in some railway, the traffic signal light formula 5 or 4-lamp
But if, display and speed difference [Progress] Display [slowdown] is greater, [Speed \u200b\u200bdepression] in the meantime
The display (display the same color as the light [deceleration]) light color [blue] will blink one by one that the [Yellow]
We are able to be set, and a higher maximum speed for [Progress.
[Other features]
- The length of the rail is the same 70mm straight rail and S70 (F). Double track spacing of 37mm width
It is small enough to fit snugly into.
- If you use the S70-A viaduct <3064> New, can be attached to the elevated tracks.
[For connection]
- TCS pin connector of the power unit N series, the power cord of the signal
Connected.
- I add to the terminal using the code If you want to increase the signal further.
- In addition, when you connect the unit and the signal crossing, crossing is possible near the power unit N
I want to connect to.
[Specifications]
- Current consumption: (30mA operation mode setting) 10mA
- The length of the cord: 95cm, 11cm
- Height: 5.1cm

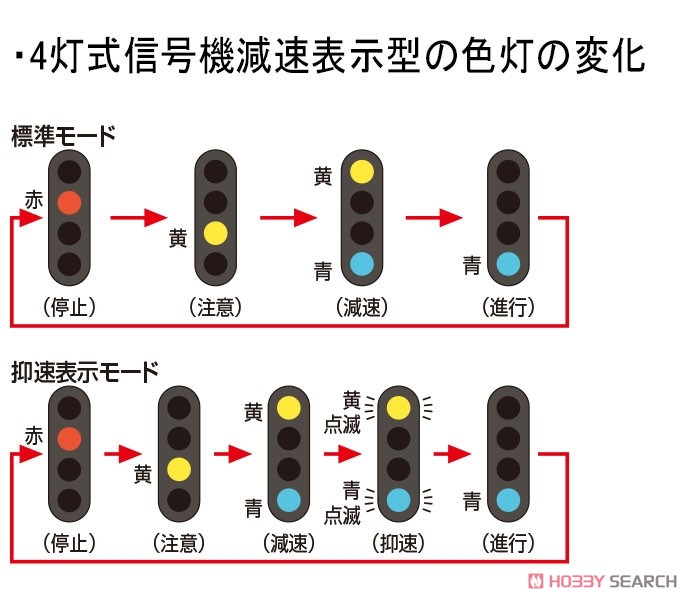

- The behavior of the light color of the display type deceleration signal lamp type 4 (standard mode):
Yellow red → (stop), yellow, green → (note) green → (deceleration) (progress)
- (Speed \u200b\u200bdisplay mode in the first place) the operation of the light color of the display type deceleration signal lamp type 4:
Yellow red → (stop), yellow, green → (note) Flashing green Flashing yellow → (deceleration) (depression speed) green → (progress)
( This is a machine translation. Please allow for possible misinterpretations in the text. )
