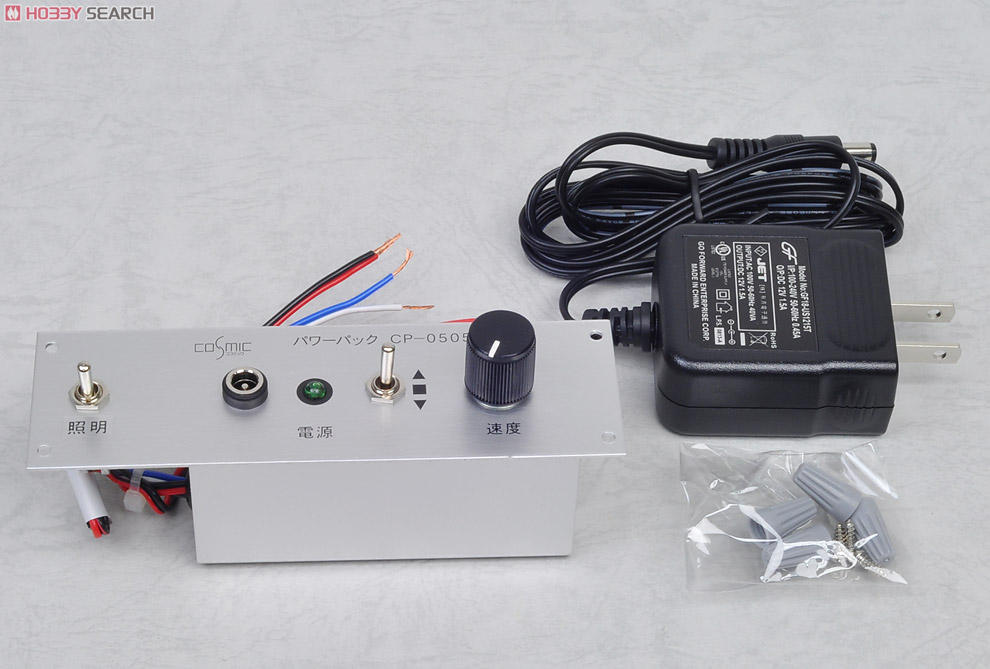

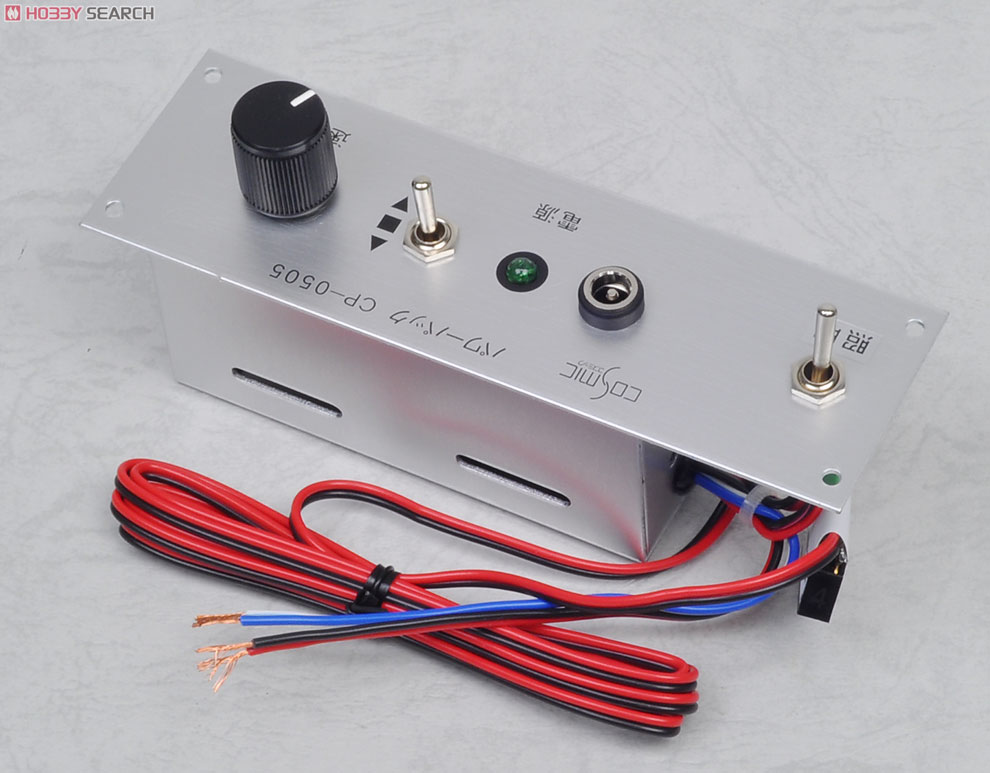

Product Description

[Abstract]
- N can be used to embed a small Minireiauto Reiautopaneru own commercial or other gauge, lightweight power pack.
- In addition, useful features have been added to the lighting layout.
※ This item is an AC power adapter is a formula.

[Features]
- For small commercial Reiautopaneru side (or 40mm panel thickness) can be easily attached to either the top or.
- Built for the panel, the panel easier to move and transport, avoid wiring trouble.
- Layout makes it easy to just connect the lighting unit with optional lighting.
- Has adopted an all aluminum case that combine radiation.
- Output points, TOMIX points and points can be either made by KATO made.

[Specifications]
- Model:
CP-0505LP
- Vehicle Power:
Weak DC 0 ~ 12V
- Maximum current:
0.5A
- Control Scheme:
Transistorized voltage variable
- Output Points:
Capacitor Discharge
- Power:
AC100V 50/60Hz AC adapter type
- View:
Green power LED indicator lights (off overcurrent)
- Other:
With overcurrent protection circuit with a forward reverse switch for light switches with
- Dimensions:
Body 40 × 127 × 40mm (excluding protrusions)
- Weight:
About 100g (body only)

※ The appearance and specifications may be some changes.


Item Size/Weight : 15 x 11 x 7.7 cm / 305g

Product Specifications

Item series

Control Systems

Item code

CP-0505LP

JAN code

4582330650118
