Product Description
- The long-awaited curve radius 280mm, rail of 317mm appeared!
- The long-awaited curve radius C280, C317 appeared.
- Reproduce the vehicle tilts `` Kant in real similar curve.
- CA-S set corresponds to a double track in two sets available.
- The entrance of the curve section it is necessary to approach the rail.
[Products Guide]

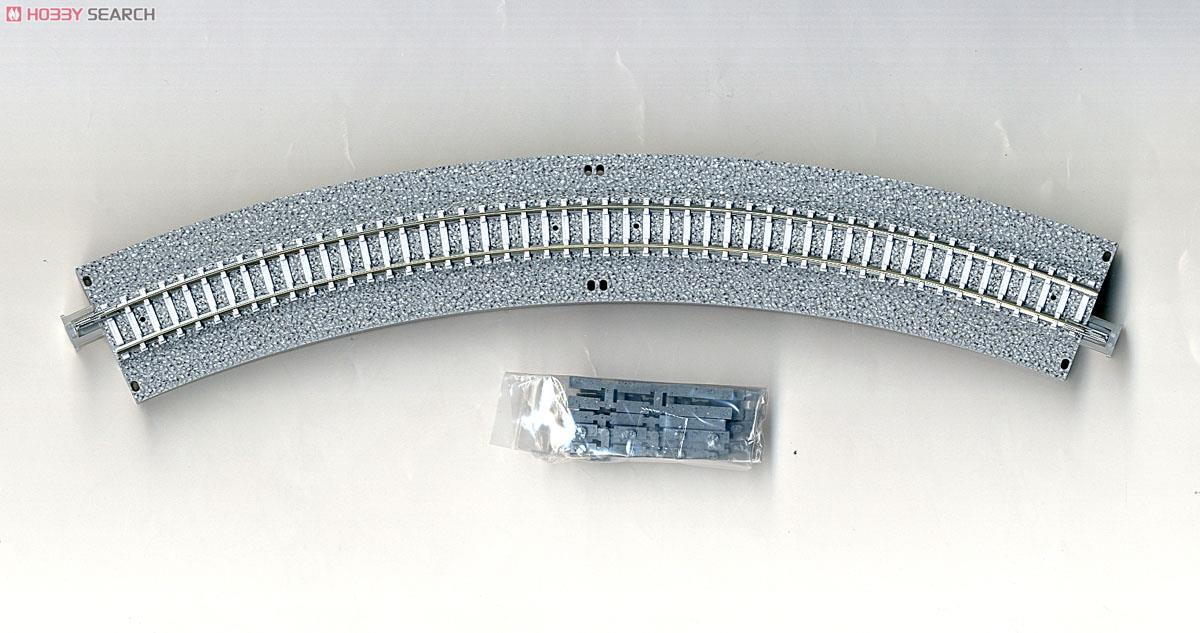

- Radius 317mm, curve angle 45 °, wide curve cant rail of width 37mm.
- Comes with a cant curve outside of the rail is higher than inside, I enjoy traveling the train tilts on the inside as the real thing.
[Features]
- And painted the ballast and sleepers, beautiful appearance
- PC sleepers representation

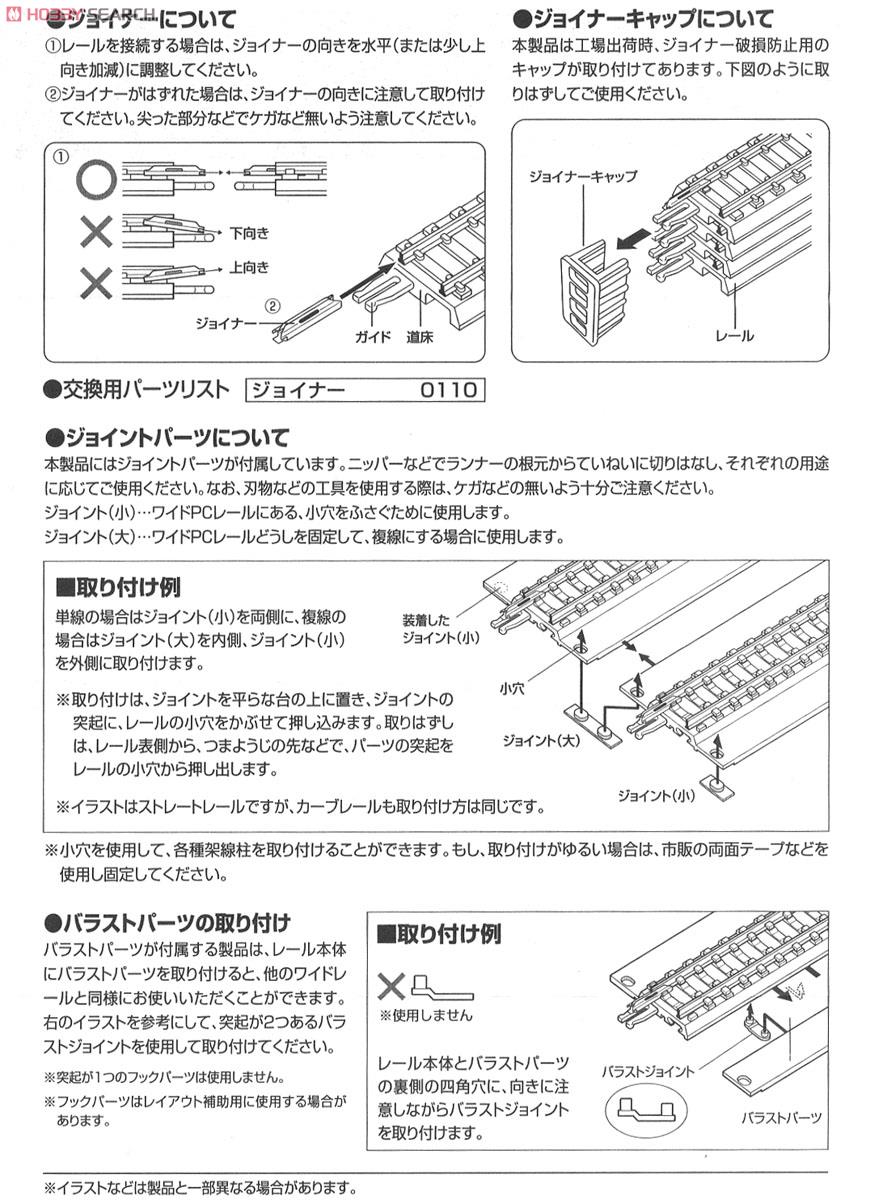

- Rail each other combined with the snap in the nails, simple reliable connection
- There is connection compatible with conventional TOMIX rail
- Sold separately fence, railing, it can be mounted on the rail side of the side wall
- A single line pier base (sold separately) can be attached to the bottom surface, corresponding to the single wire pier
- Linking the C280-45-WP (sold separately) on the inside, or by connecting the C354-45-WP (optional) to the outside can be used as a double track rail
- When used as a double track rail by mounting a wide rail cant part for coupling the lower surface corresponding to the double track elevated pier
- And powered by mounting a feeder for wide rail slab rail on the underside
(For slab rail feeder also mounting Allowed, conventional feeder is impossible mounting)
- Can be fitted with a sensor for wide rail slab rail by the user additional machining
(Slab rail sensors and one-touch mounting sensor is disabled mounting)
- Supports various overhead wire pole mount
- Kant inclination angle is about 4 degrees

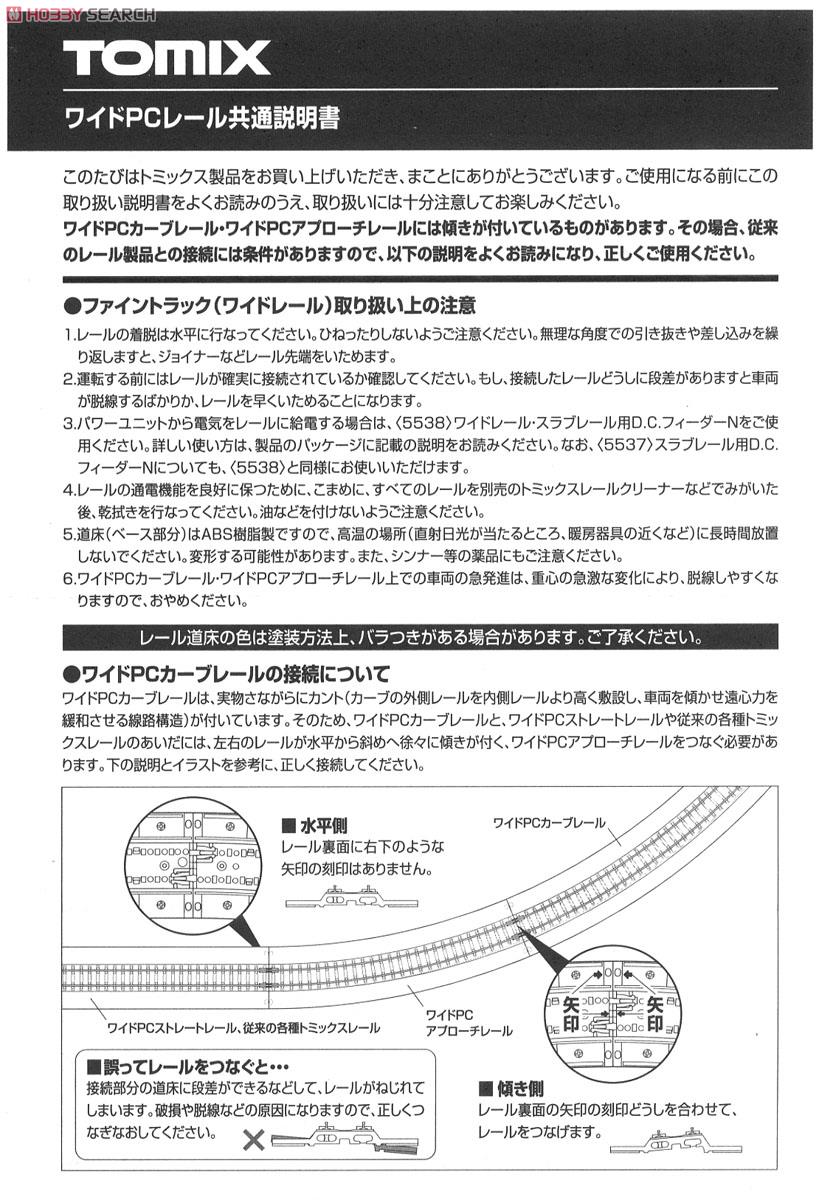

※ This rail comes with a cant of tilting the vehicle. The connection with the conventional rail product There are conditions. Please carefully read the back of the package description.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 28.5 x 6.5 x 2.3 cm / 103g
Product Specifications
- Item code
- 1772
- JAN code
- 4543736017721
