Product Description

- The long-awaited curve radius 280mm, rail of 317mm appeared!

[Wide PC rail]
- The long-awaited curve radius C280, C317 appeared.
- Reproduce the vehicle tilts `Kant` in real similar curve.
- CA-S set corresponds to the double track in the two sets of use.
- In the doorway of the curve section will require approach rail.

※ This rail comes with Kant of tilting the vehicle. In connection with the conventional rail product has conditions. Please read the back of the package description.

[Products Guide]

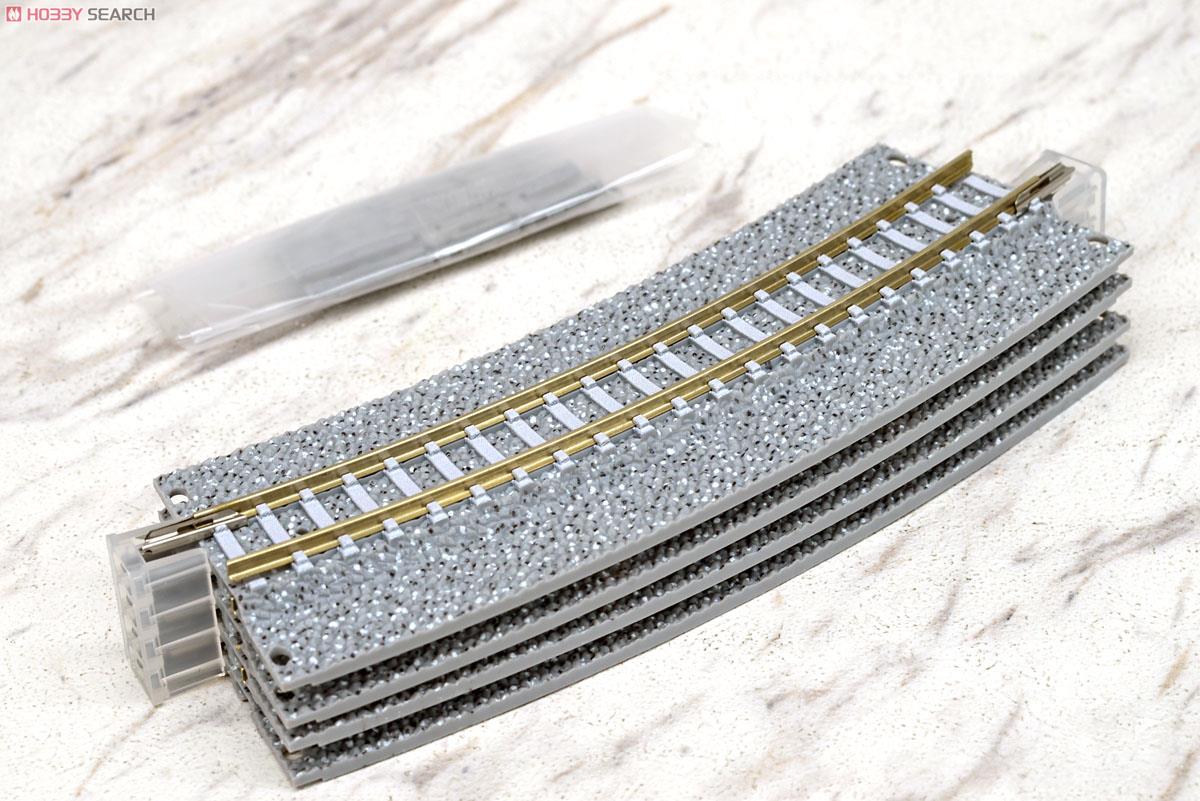

- Radius 280mm, curve angle 22.5 °, wide curve Kant introduced rail of width 37mm.
- Rail curve outside of the rail to cant rail is higher than the inner, is introduced into the cant rail with a gradually Kant from Kant without flat.

[Characteristic]
- And painted the ballast and sleepers, beautiful appearance
- PC sleeper representation
- Rail each other coupled with the snap at the nails, simple reliable connection
- There is connection-compatible with conventional rail TOMIX
- Sold separately fence, railing, it can be mounted on the rail side of the side wall
- A single line pier base sold separately by mounting the lower surface, corresponding to the single wire pier
- Sold separately CR (L) available 317-22.5-WP as a double track rail is connected to the outside
- When used as a double track rail to the wide rail cant part for coupling (coupling for wide rail slab rail to flat introduction portion) is attached to the lower surface corresponds to the double-track elevated pier
- Is powered by mounting a feeder for wide rail slab rail on the underside
(Slab rail feeder also mounting Allowed, conventional feeder is not attached)
- The response to the various overhead wire pole mount
- Cant inclination angle gradually change in the curve angle 22.5 degrees to 0 degrees to about 4 degrees
- While curve to the right and CR to gradually Kant tilt, two each two sets of CL to gradually Kant inclined while curve to the left
※ The mounting of the sensors, the corresponding non-structural

The set include:
- Wide PC approach rail CR280-22.5-WP (F) × 2
- Wide PC approach rail CL280-22.5-WP (F) × 2
- Wide Rail joint runner × 4

[Options]
※ This product can be installed, such as the following products. For more information, please read the description of the described in the instructions that come with the product, or the product package.
- For wide rail wall: <3081> within the C280 <3082> C317 in · C280 outside
- Single-wire bridge pier base for wide rail: <3091> C280
- Tread type noise canceller <5593>
- Gap Joyner: <0111>

[Note]
※ This product can not be used in combination with the following products.
- <5537> <5538> other than the DC feeder N
- <5592> feeder type noise canceller
- Various sensors

[About the wide PC curve rail connection]

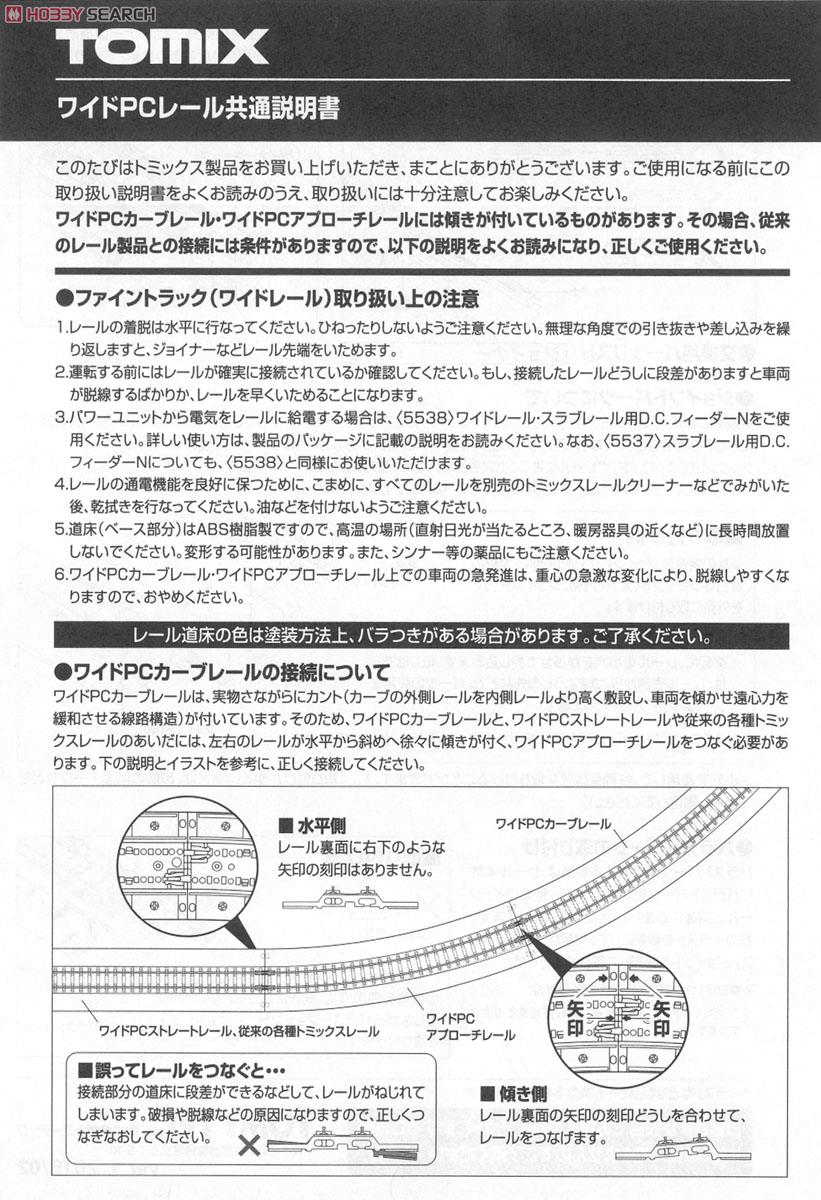

- Wide PC curve rail, Kant real thing in just like (the outer rail of the curve is laying higher than the inner rail, line structure to mitigate the centrifugal force to tilt the vehicle) comes with. For this reason, and the wide PC curve rail, between the wide PC straight rail and various conventional Tomix rail, left and right of the rail gradually stick is inclined from the horizontal at an angle, you need to connect a wide-PC approach rail. In reference to the in instructions, please correctly connected.



Item Size/Weight : 15 x 4.5 x 2.4 cm / 49g
