[What is Fine track ...]
- Compared to the conventional rail product, it is a new Tomix rail in pursuit of ease of use and compactness of the appearance [Fine track]. Rail standards, the lineup will inherit that of the conventional rail products, it has achieved full compatibility.
[Products Guide]

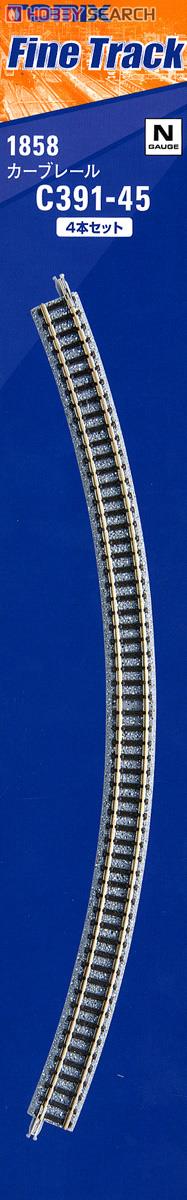

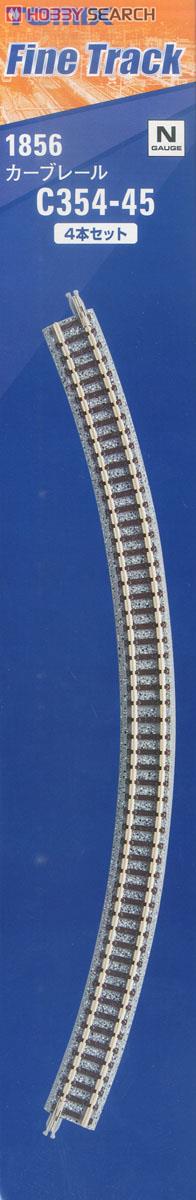

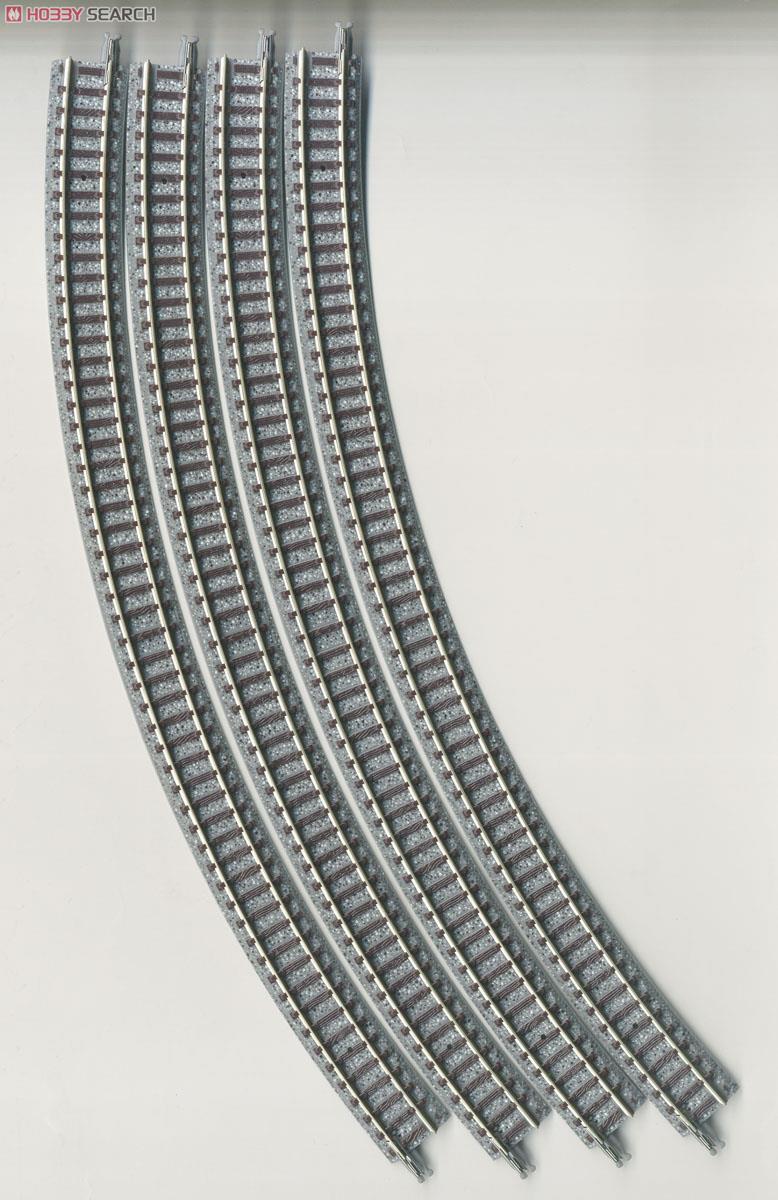

- In rail that forms the basis of fine track, it is a group of the curve rail which corresponds to the curved portion.

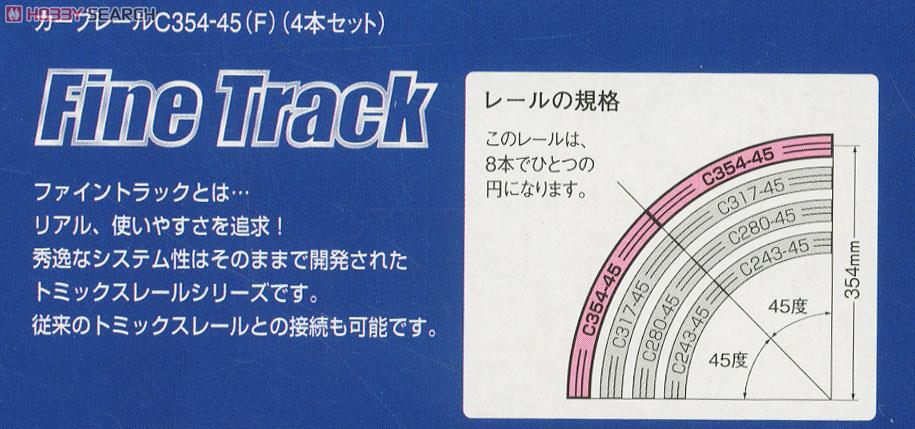

- Curve rail in the center of the radius 280mm and 317mm of rail, which can circle When you connect eight, and then configures a radius 37mm increments of rail.
[Characteristic]
- And painted the ballast and sleepers, beautiful appearance
- Wooden sleepers representation
- Rail each other coupled with the snap at the nails, simple reliable connection
- There is connection-compatible with conventional rail TOMIX
[option]
- Joyner: <0110>
- Gap Joyner: <0111>
- Tread type direction indicator LED: <0112>
[Note on the fine track handling]
1, attachment and detachment of the rail, please go to the horizontal. Please note that you do not twist. Unreasonable angle of
When you repeat the drawing and plug, it will be damage the rail tip such as Joyner.
2, Please make sure before you drive rails are securely connected. If the connected rail
If there is a step in each other, not only the vehicle is derailed, and you will damage faster rail.
3, to feed the electricity from the power unit to the rail, use a dedicated DC feeder N
Please.
4, in order to keep the current function of the rail well, diligently all rail optional <6401> rail
After polished in such cleaner, please wipe. In particular, please note that with a such as oil.
5, since the ballast (the base portion) is made of ABS resin, where the hits are hot places (direct sunlight, heating appliances
Please do not leave in the vicinity, etc.). There is a possibility that deformation. In addition, chemicals such as thinner
Please note also.
※ The color of the rail track bed There are coating method on the variation. Please note.
- About Joiner
1, when connecting the rails is to adjust the orientation of the joiner in a horizontal (or slightly upward acceleration)
Please.
2, If Joyner is out, please attach it carefully in the direction of the Joyner. Pointed part
Please note that no injuries and the like.
※ <6005> Joyner repair (sold separately) Do not use absolutely. Damage the part Joyner
It may cause.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
