Product Description

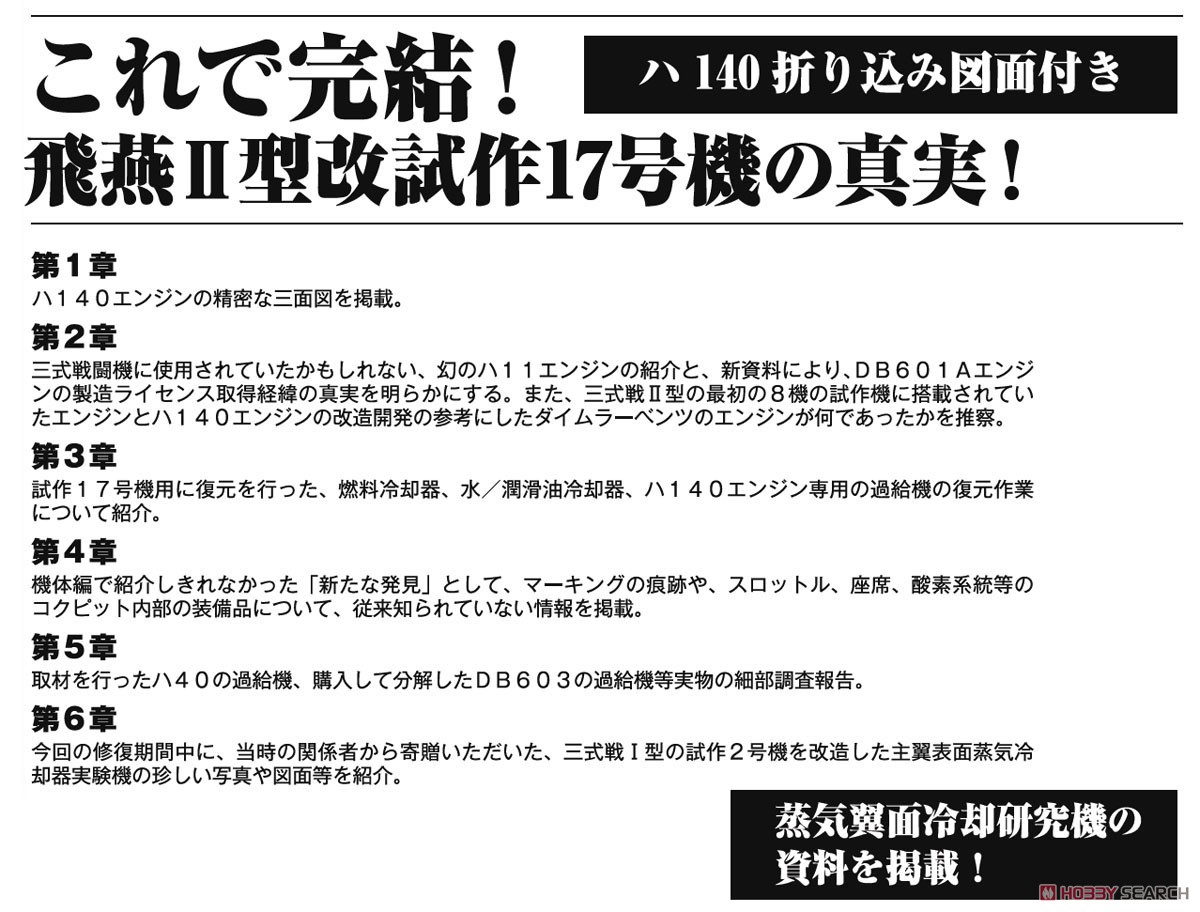

- Finally, power and equipment section

- Completion with this! The truth of Hayan II type revised prototype 17!
- H with 140 folded drawing

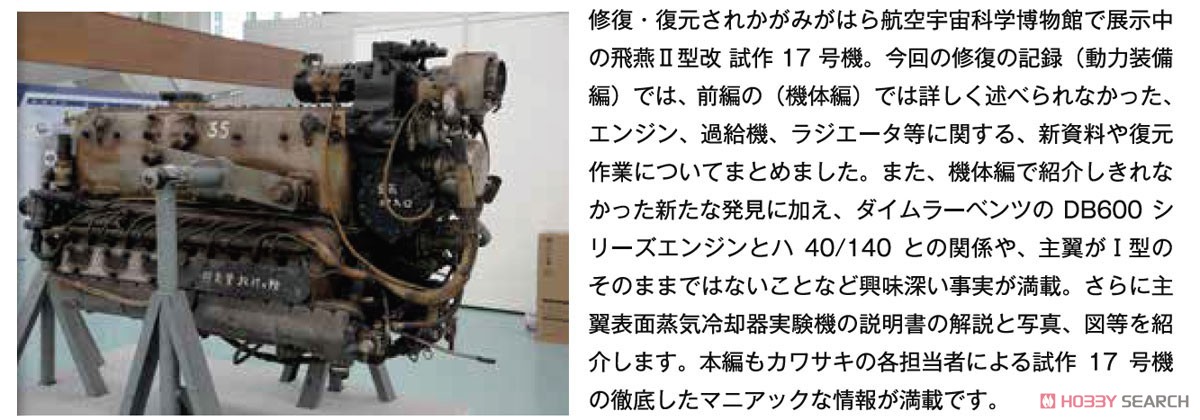

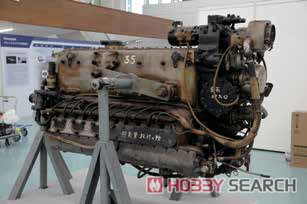

- Repair / restored Kagamihara The Hayan II type revised prototype No. 17 exhibited at the Museum of Aviation and Space Science.
- The record of restoration of this time (power equipment version) summarized the new materials and restoration work concerning the engine, the supercharger, the radiator etc. which was not described in detail in the first part (Aircraft version).
- In addition to the new finding that I could not fully introduce in the aircraft body, it also packed an interesting fact such as the relationship between Daimler Benz's DB600 series engine and Ha 40/140 and that the main wing is not intact as I type.
- We will also introduce commentary on the main wing surface steam cooler experiment manual, pictures, figures and so on.
- It is packed with thorough maniac information of prototype No. 17 machine by each staff in Kawasaki.

- Chapter 1: C Posted precision three-sided view of the 140 engine.
- Chapter 2: Explain the truth of the history of acquiring the manufacture license of the DB 601 A engine by introducing the phantom Ha 11 engine, which may have been used in the trim type fighter aircraft, and new materials. Moreover, I guessed what the engine of Daimler Benz that was used as a reference for the engine development and engine 140 reconstruction development which had been installed in the first eight prototype of the 3 type fight II type.
- Chapter 3: Prototype Introduction on restoring work for fuel cooler, water / lubricating oil cooler, supercharger dedicated to engine 140, which was restored for Unit 17.
- Chapter 4: Information unknown in the cockpit, such as traces of marking and throttles, seats, oxygen systems etc inside the cockpit, was posted as [new discovery] that could not be introduced in the aircraft body.
- Chapter 5: Detailed investigation report on real things such as turbocharger 40 that got coverage, turbocharger of DB 603 purchased and disassembled.
- Chapter 6: Introducing rare photographs and drawings of the main wing surface steam cooler experiment machine which remodeled trial model I prototype Unit 2 donated by stakeholders of the time during the restoration period.



Item Size/Weight : 29.7 x 21.3 x 0.8 cm / 496g

Product Specifications

Item series

Air Model Special

Item code

200194

ISBN code

4910123200194
