Product Description
-Equipment mainly for replenishing coal to the coal tank.
-It can be used in combination with the new model single linear coal bed released simultaneously.

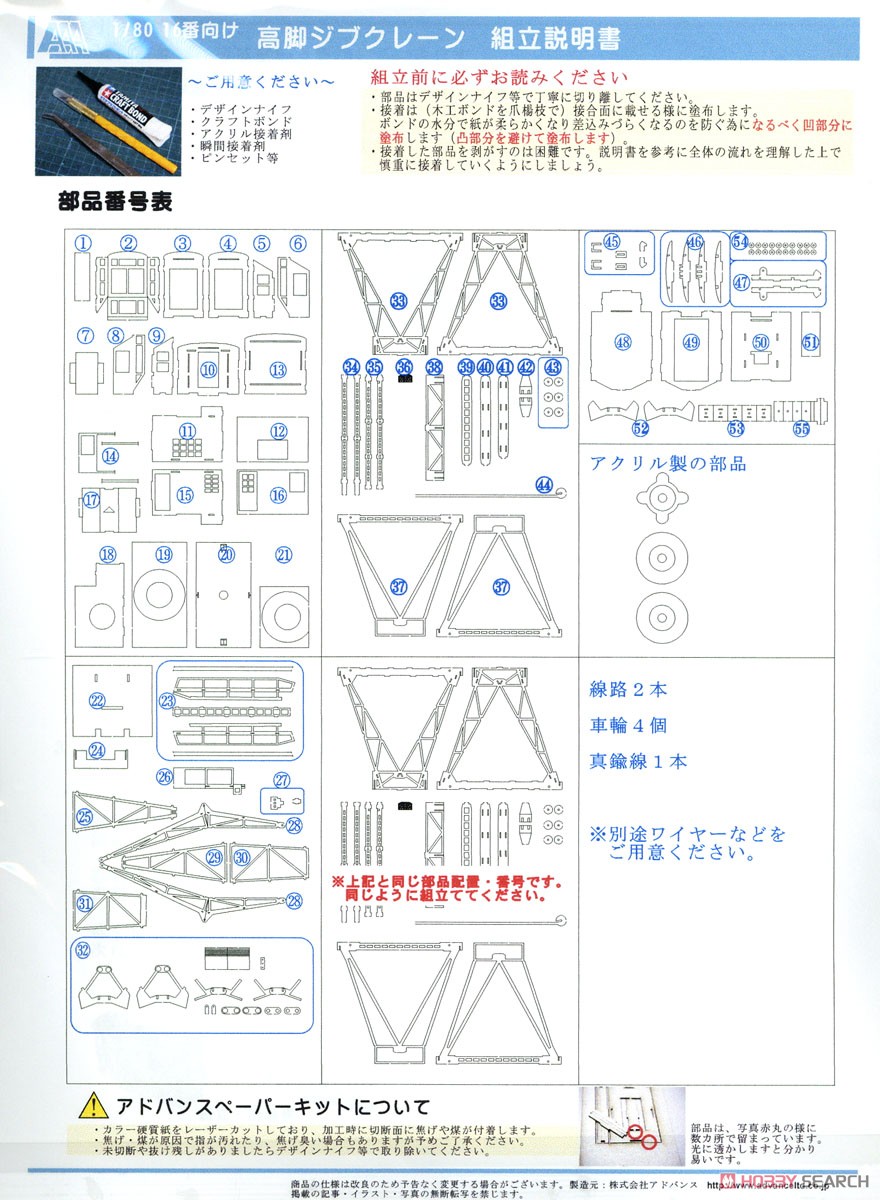

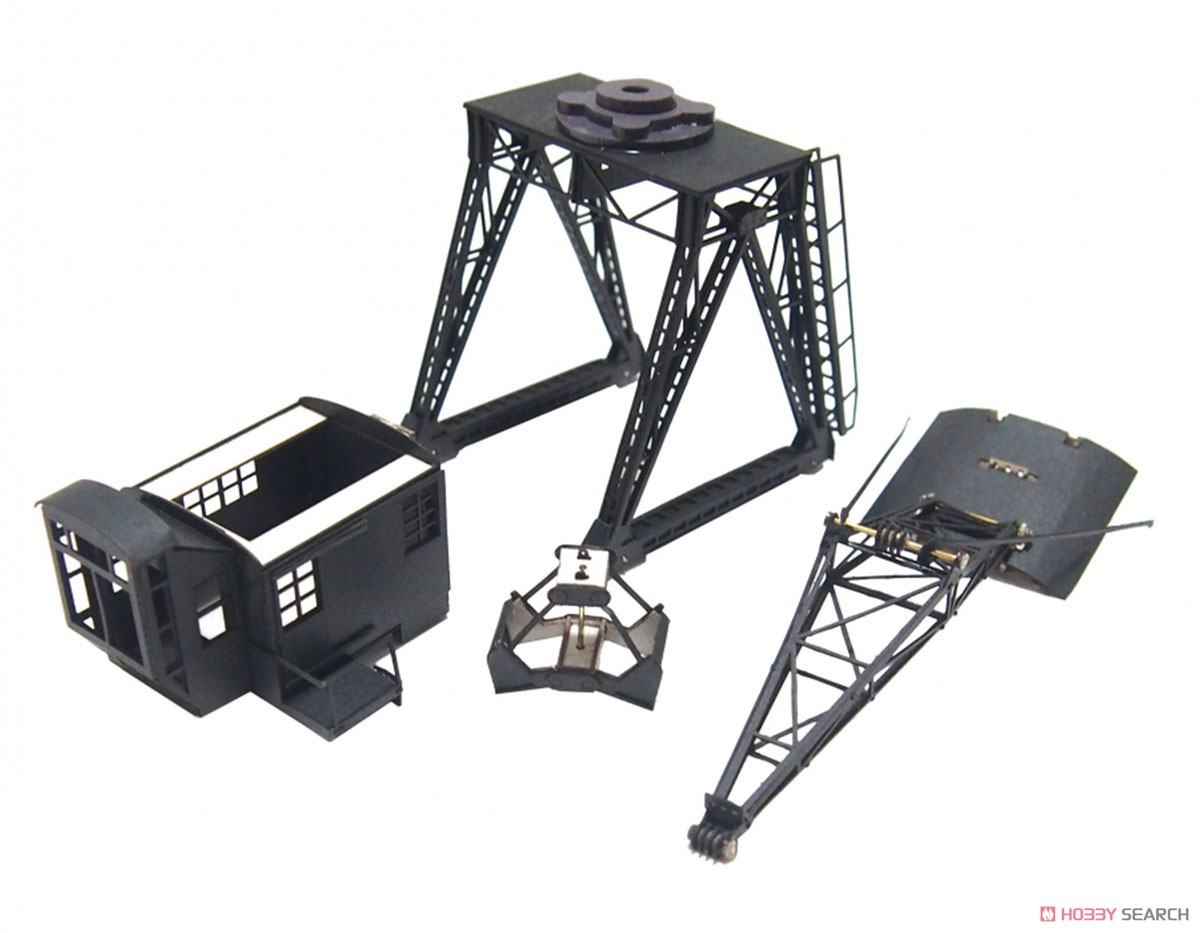

-The kit is configured to assemble the leg part and the operation room, and the arm part and the bucket part.
-Leg: about width 80 × depth 62 × height 81 mm
-Operation room: about width 67 x depth 49 x height 42 mm
-Arm: about width 111 × depth 25 × height 16 mm (excluding the roof)
-Bucket: approx width 31 x depth 11 x height 24 mm
-Moving rail: 270 mm
-Please prepare a wire to hang the bucket separately.
-Use transparent plavan etc. when expressing windows.
-Acrylic board and brass rod are used for some parts.
-Assembling requires woodworking bond, acrylic adhesive, and instant adhesive.
※ We recommend the wire about 0.2 to 0.3 mm in diameter. If you can not stretch it, a 300mm brass rod can be substituted.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 30.6 x 22.5 x 1.3 cm / 184g
Product Specifications
- Item code
- 2015
- JAN code
- 4582439971053
Purchase Information
This item is limited to 12 per household.
