Product Description
── First commercialization of indoor lighting units from Green Max! Ideal for night trains

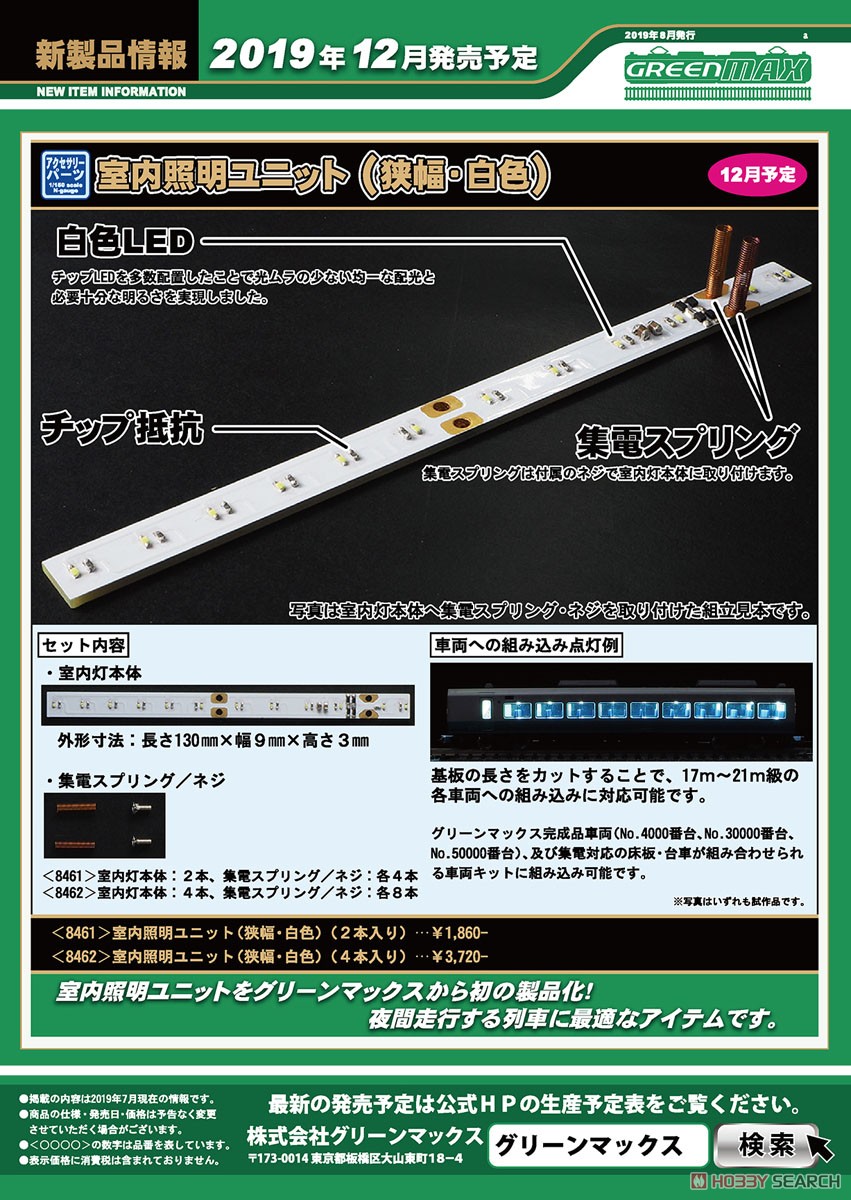

-Commercialize the first indoor lighting unit of Green Max.
-By arranging a large number of chip LEDs, a uniform light distribution with little light unevenness and necessary and sufficient brightness were realized.
-By cutting the board, it can be installed in 17m to 21m class vehicles.
-The product is an assembly type, and the customer will do the simple work of assembling the current collector spring and screws that are included in the board.
-The current collector can be installed in a vehicle that supports a spring-type indoor lighting unit.
-It can be installed in a vehicle kit that combines Green Max finished vehicles (No. 4000 series, No. 30000 series, No. 50000 series), and floor boards and carts that support current collection.
[Product Specifications]

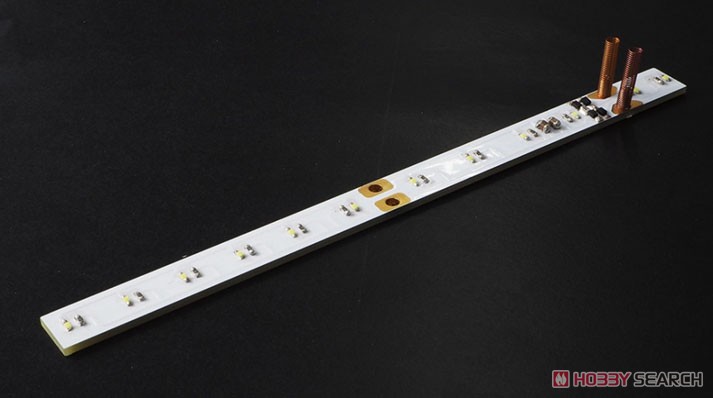

-N-gauge vehicle interior lighting unit with 12 chip LEDs mounted
-Emission color is white
-External dimensions are 130mm length x 9mm width x 3mm height. * Current collector spring is not included.
[Product Set Composition]
・ Room light body x 4
・ Current collector spring x 8
・ 8 screws
[Required tools]
-Use a Phillips screwdriver to fix the current collector spring to the interior lighting unit. We recommend a Phillips screwdriver with a tip size of No.1 (or # 1).
-Use one of the following when cutting the board.
-Metal nippers (Do not use plastic nippers.)
・ P cutter
・ Pirania saw (saw with fine blades)
・ Rotating tool sanding disc (rotary grinding wheel) * Safety goggles must be worn when using this tool.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 17.5 x 3.5 x 2 cm / 28g
Product Specifications
- Organization
- Seibu Railway , Shizuoka Railway (Shizutetsu) , Keisei Electric Railway , West Japan Railway (JR West) , Tokyo Metro , Toyo Rapid Railway , Hankyu Electric Railway (Hankyu Corporation) , Kinki Nippon Railway (Kintetsu Corporation) , Nagoya Railroad (Meitetsu) , Nagano Electric Railway (Nagaden) , Japan National Railways (JNR) , Central Japan Railway (JR Central, JR Tokai) , Tokyo Metropolitan Bureau of Transportation (Toei) , Keihan Electric Railway , Keihin Electric Express Railway (Keikyu) , Tobu Railway (TRC) , Kyushu Railway (JR Kyushu) , Tokyu Corporation , Sanyo Electric Railway (Sanyo Train) , Keio Corporation
- Item code
- 8462
- JAN code
- 4946950846205
Purchase Information
This item is limited to 8 per household.
