Product Description

--Thin mouth specifications that bring out the strength
--Brass and machined products
--Detailed up energy pipes!

--Parts for improving details such as energy lines.

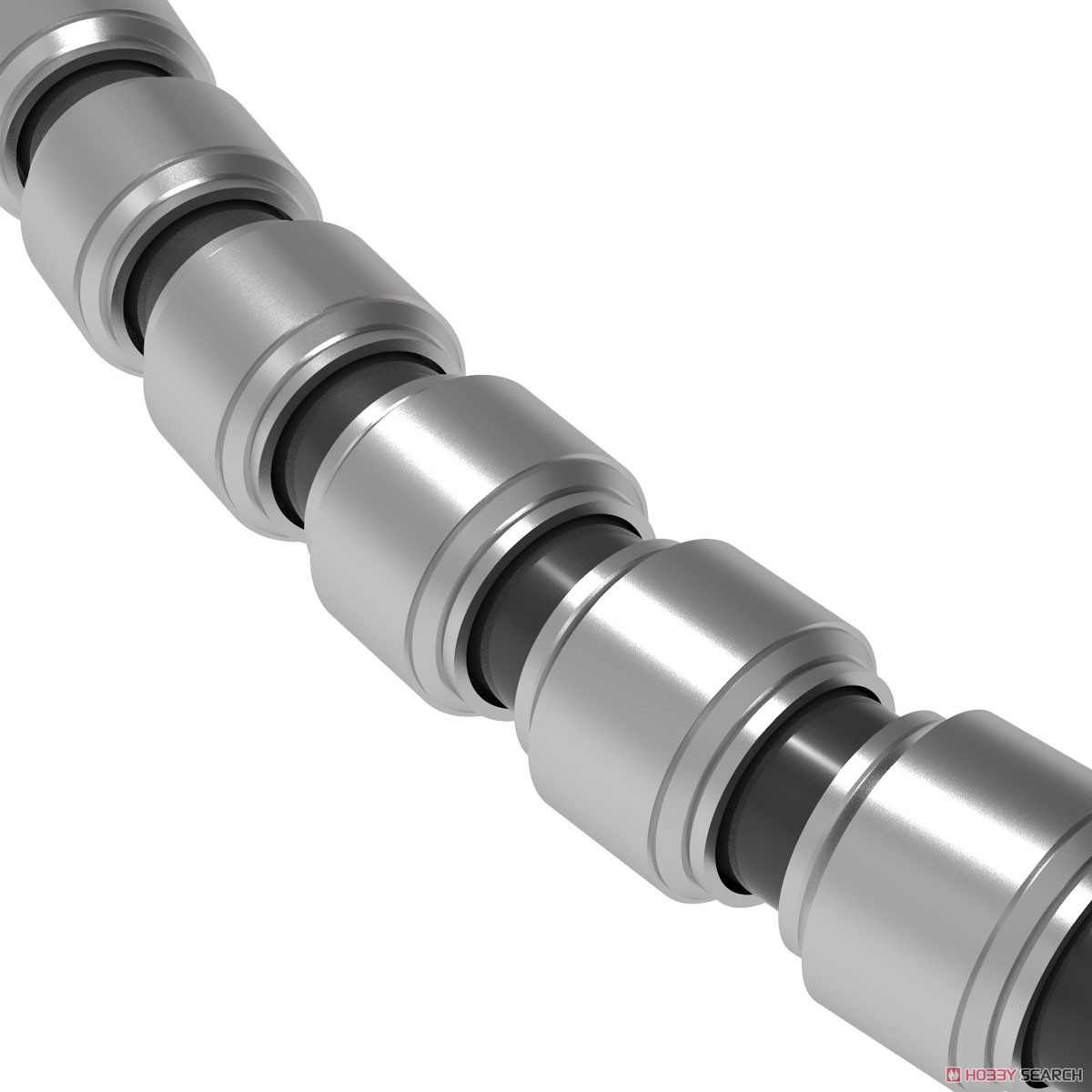

――Through a model spring and a core material such as an aluminum wire, multiple pieces are connected for use.
――The pipe series is particularly outstanding in the high precision of lathe processing.
――Compared to the shape of the MZ series, which emphasizes smoothness, the NP series features a thin shape.
――A thick core material can be used, and it is possible to improve the details with outstanding strength.

--Use an optional precision spring and aluminum wire to connect the pipes.
――When painting, apply a metal primer after degreasing, and then paint with model paint.

[S size]
--Outer diameter 3.1mm Width 2.5mm
--Inner diameter 2.1mm Corresponding spring 1.9 / 2.0mm
--Brass plated * Reference length when connecting 20 pieces (gap 0.4 mm) 57 mm

[M size]
--Outer diameter 4.2mm Width 3.5mm
--Inner diameter 3.1mm Corresponding spring 2.9 / 3.0mm
--Brass plated * Reference length when connecting 20 pieces (gap 0.8mm) 85mm

[L size]
--Outer diameter 5.2mm Width 4.5mm
--Inner diameter 4.1mm compatible spring 3.9 / 4.0mm
--Brass plated * Reference length when connecting 20 pieces (gap 0.8mm) 105mm


Item Size/Weight : 9 x 6 x 0.4 cm / 5g

Product Specifications

Item code

NPP-S-M

JAN code

4573211375817
