Product Description
――It is attractive to be able to move from the old high-capacity DC 2-wire power vehicle to the latest power-saving model!
-The New Standard

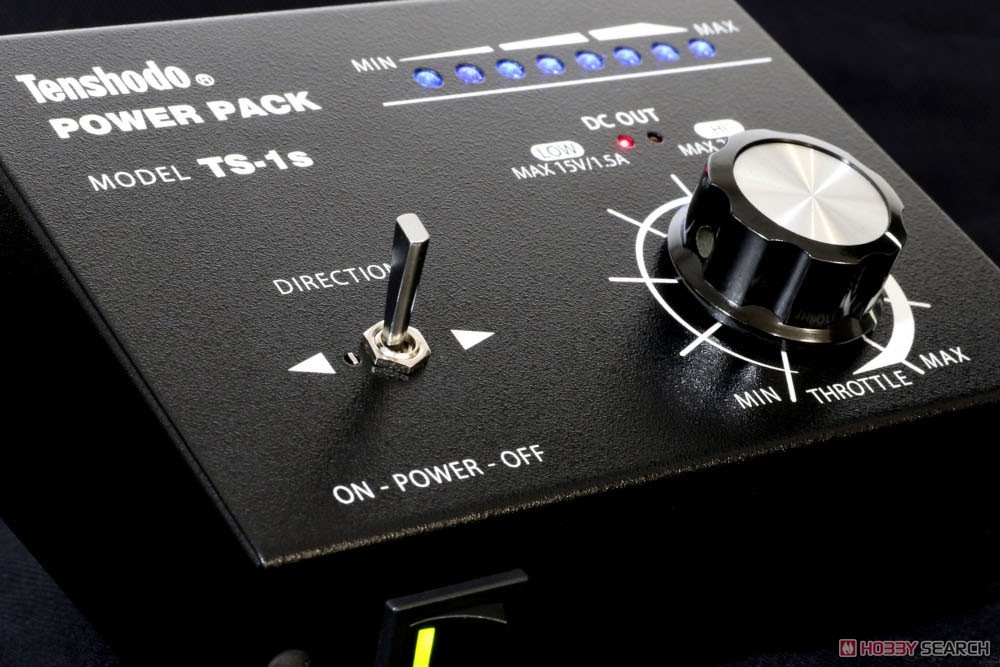

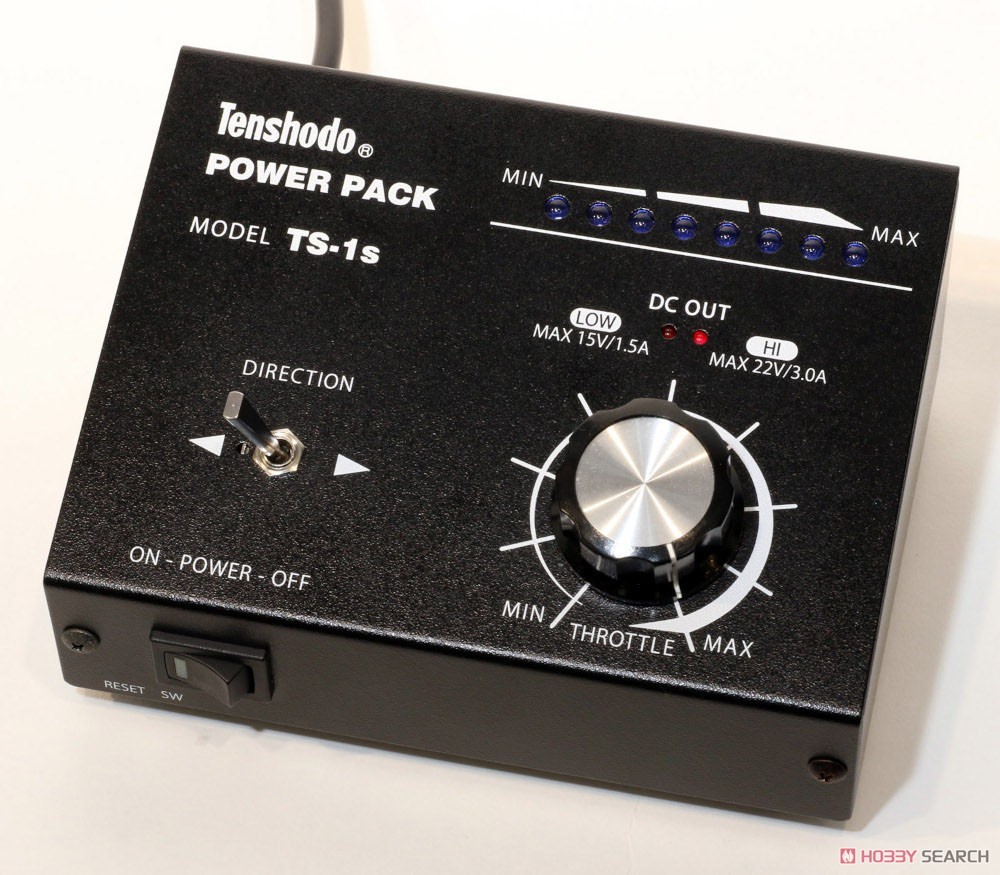

- Tenshodo power pack TS-1s
- For running DC 2-wire model railroad vehicles
[information]
- 10 years after its release, the power pack "TS-1", which has been well received for its simple operability and large capacity of 3A, is reintroduced as an improved product with improved safety performance.
- In order to use power-saving motors such as coreless motors, which are becoming popular in recent years, as well as power trucks, in LOW mode, a safety device is activated when 1.5A is exceeded. (*)
- The appearance inherits the size and shape of the previous model, but the leather tone processing with fine unevenness not only creates a solid feeling, but also makes dirt and dust less noticeable.
- A new standard power pack that can be used with confidence from conventional power vehicles that require large capacity, models equipped with a quantum system, to power-saving models.
*It is not a device that can protect against all overcurrents. Immediately turn off the power pack in the event of a derailment or electrical short.
[Product Summary]
- It is a power pack (controller for model railroad) for supplying power to a DC 2-wire model railroad track.
- Converts your household AC 100V power supply to DC 24V/3.75A with the dedicated power adapter that comes with the product, and controls the output voltage from 0V to 22V with the throttle volume.
- LOW mode (0 to 15V DC 1.5A) / HI mode (0 to 22V DC 3A) Two output modes can be switched. (* Set by the switch on the back of the main unit at startup)
- If the current exceeds 1.5A in LOW mode and 3A in HI mode, the microcomputer program will automatically reset.
[Performance specifications]
- Output: HI mode DC 0-22V 3A / LOW mode DC 0-15V 1.5A
- Input: DC 24V 3.75A (converted from AC 100V with the included dedicated power switch adapter)
- Protection circuit: main unit side: microcomputer program automatic control protection circuit, circuit protector (reset switch), dedicated power supply side: automatic protection circuit
- Body size: W140mm x D100mm x H58mm
*Price revised remanufactured product
*For this re-production, some of the materials used have been changed, but the specifications and performance will not change, so the part number will be [91015] as before.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
[ Related Products ]
- Meter Box TM-1s
Item Size/Weight : 25 x 20.2 x 10.3 cm / 1425g
Product Specifications
- Item code
- 91015
- JAN code
- 4580135701165
Purchase Information
This item is limited to 3 per household.
