Product Description

──(HO) A line for dimension adjustment that goes well with the 6th point and the curved track R867-10° has appeared!

[overview]

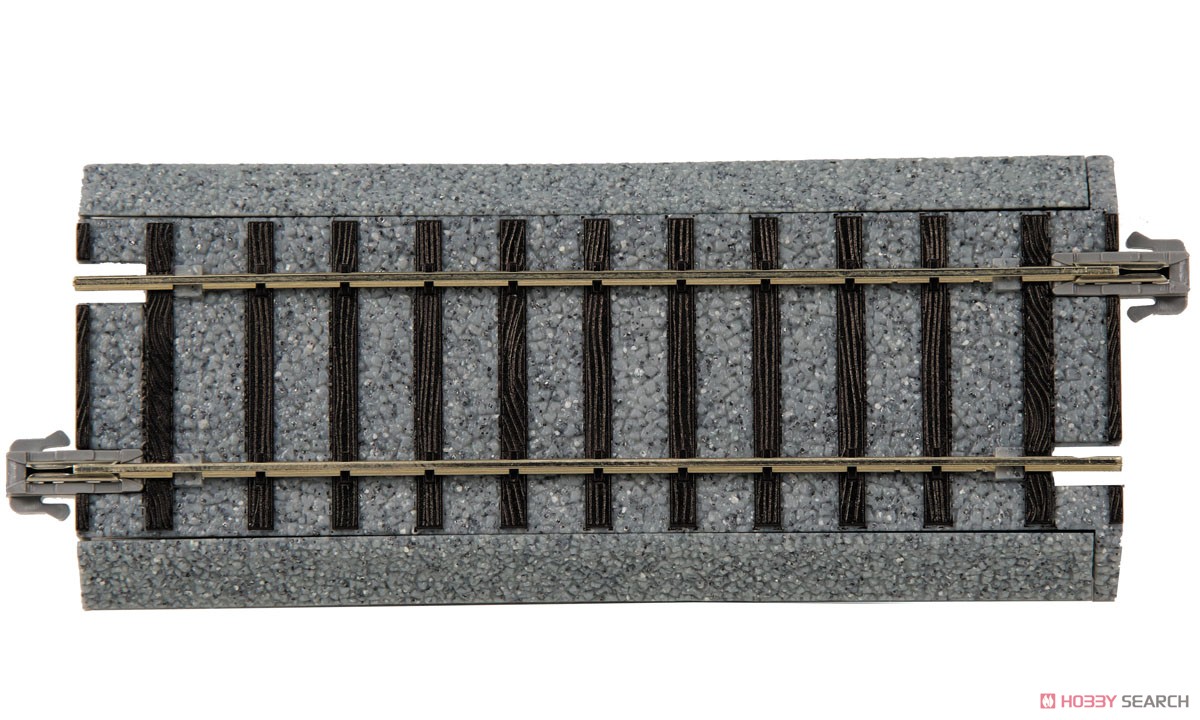

- The 6th point auxiliary straight track 97mm (S97) is an auxiliary track for the electric point 6th. In addition, it can be used for double track spacing adjustment in combination with curved line R867-10°.

[Product introduction]
- Regardless of the floor, assembly type, or fixed type, the 6th point auxiliary straight track 97mm is now available as an item that solves the uneven connection position of the layout track wiring.
* (HO) Same item as the auxiliary track bundled with electric point No. 6.
- This product is a dimension adjustment line that is compatible with (HO) electric point No. 6 and (HO) curved line R867-10°.
-Conventionally, depending on how it is used, it is possible to solve the situation where the side line could not be configured with the point body + attached auxiliary line, and in combination with the (HO) curved line R867-10 °, the double track interval 60mm offset is possible.
-By combining it with the <2-194 HO Unitrack Slide Track 212-252mm> scheduled to be released at the same time, you can easily enjoy the layout plan with many side tracks composed of 6th points in the front and back.

[Product Features]
- (HO) electric point No. 6 and (HO) curved line R867-10°
- Body length…97mm. Trackbed shoulder parts (length 94mm) are removable
- The appearance of sleepers is set with wooden sleepers (black)
-In layouts with main line + 2 side lines or later, by adding this product as an auxiliary line for (HO) electric point No. 6 and adding S149 for length adjustment, it is possible to create a layout consisting of front and rear points
- Combined with (HO) curved line R867-10°, double track spacing 60mm offset is possible

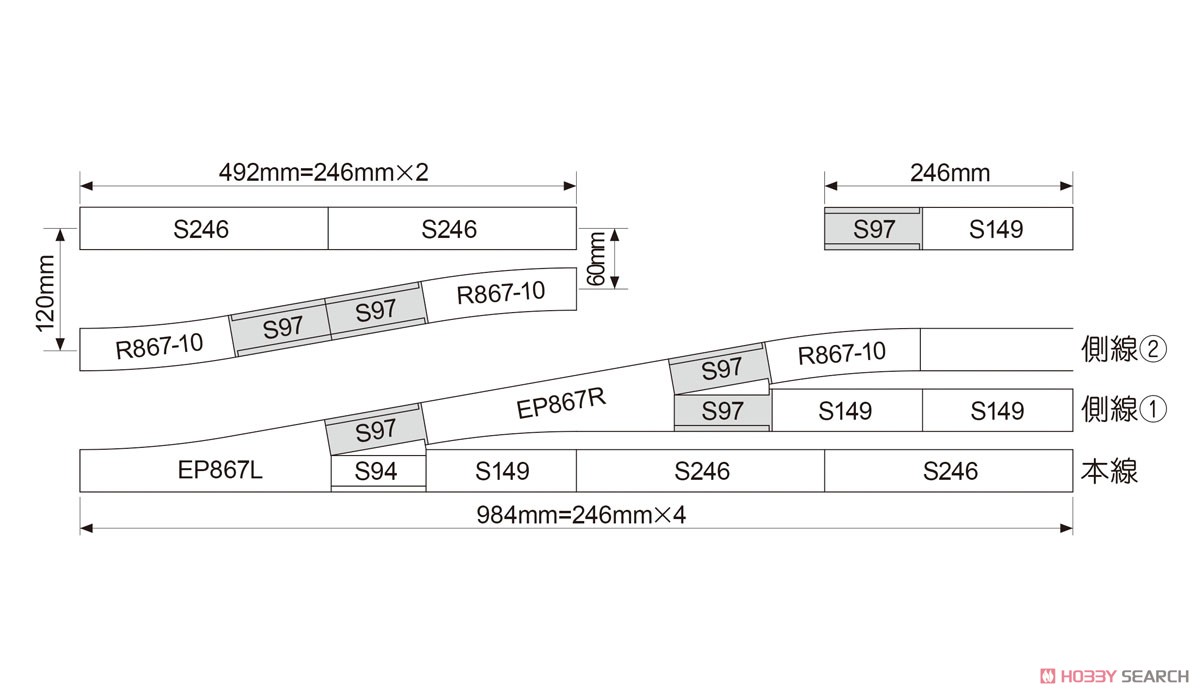

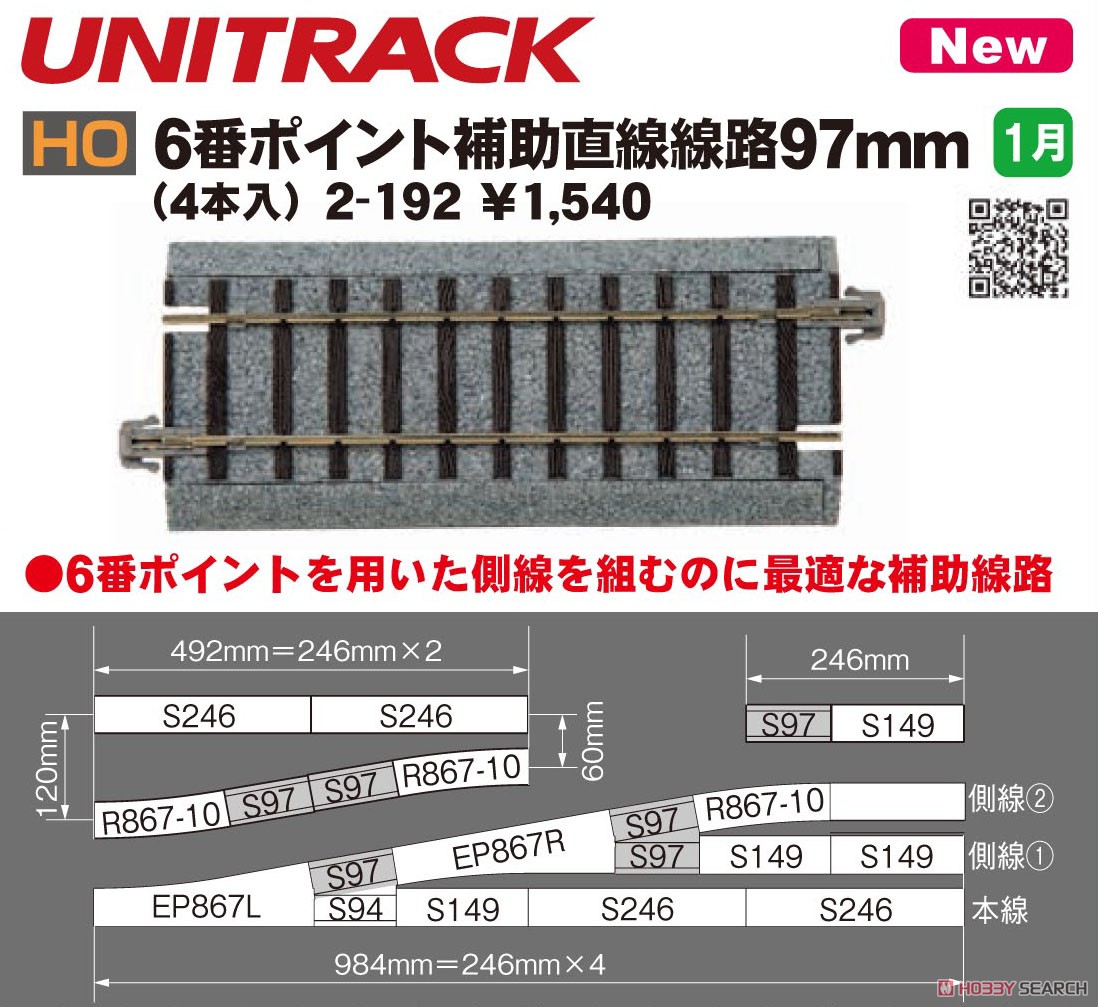

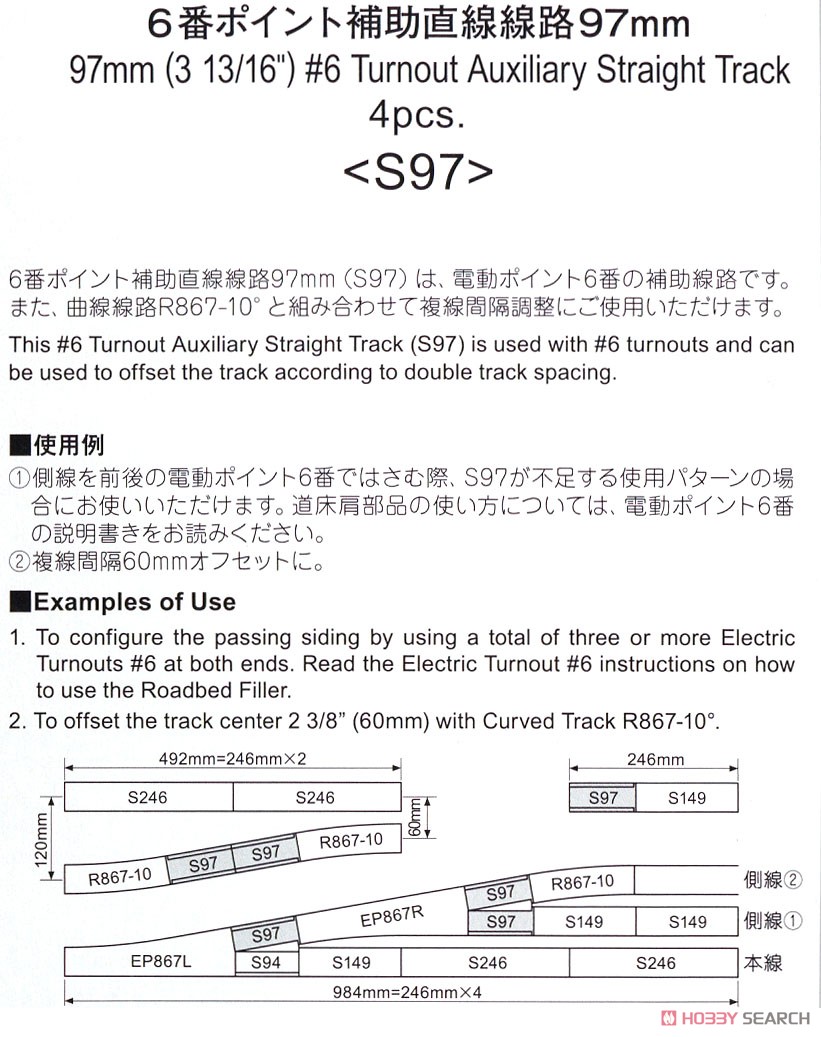

[Example of use]
(1) Can be used for track patterns where S97 is insufficient when sandwiching the siding between the front and rear electric point No. 6. For how to use the trackbed shoulder parts, please read the instructions for electric point No. 6.
(2) Double track spacing 60mm offset.

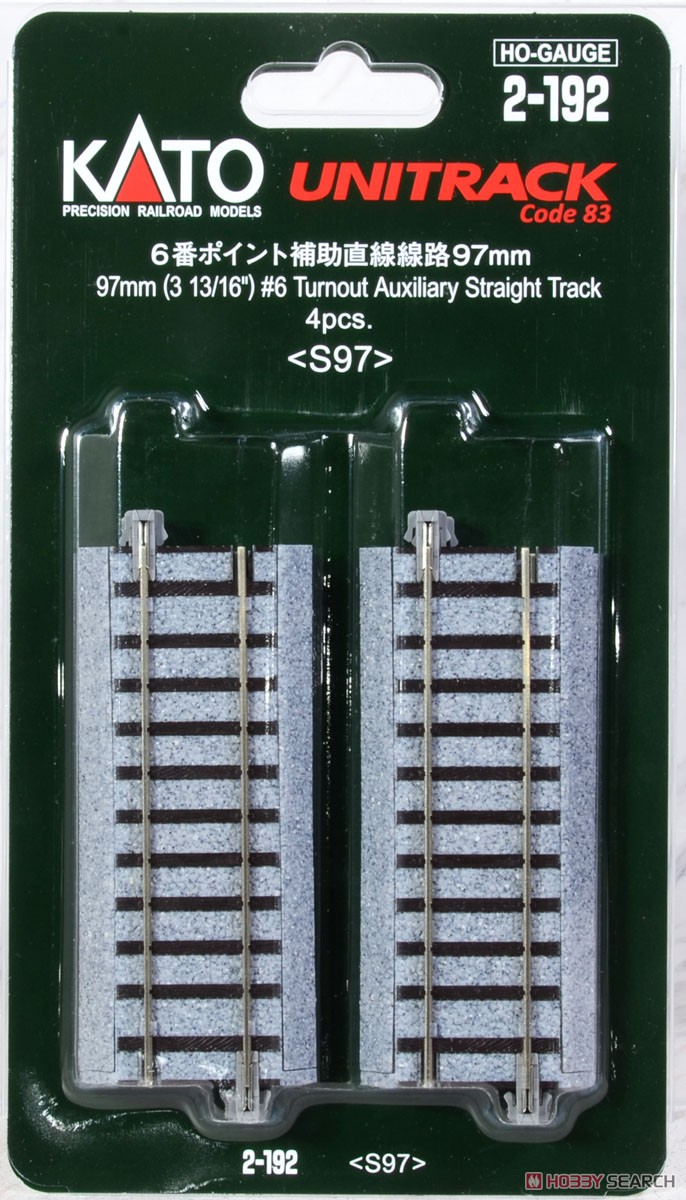

[set content]
- 97mm (4 pieces)

[Related product]
- 2-193 Straight Track S149
- 2-194 HO Unitrack slide track 212-252mm
- 2-860 ~ 861 Electric Point No. 6
- 3-105 HM1 HO Unitrack R670 Endless Track Basic Set
- 3-111 HV1 HO Unitrack R730 endless double track set
- 3-112 HV2 HO Unitrack Manual Point No. 6 Side Track Set
- 3-113 HM1 HV3 HO Unitrack Electric Point No. 4 One-Way Set
- 3-114 HV4 HO Unitrack Electric Point No. 6 One-Way Set
- 3-115 HV5 HO Unitrack R550 Endless Track Set


Item Size/Weight : 21.7 x 12.2 x 2.1 cm / 78g

Product Specifications

Item series

Track

Item code

2-192

JAN code

4949727685175
