Product Description

[Diffusion type where the light spreads out! ]

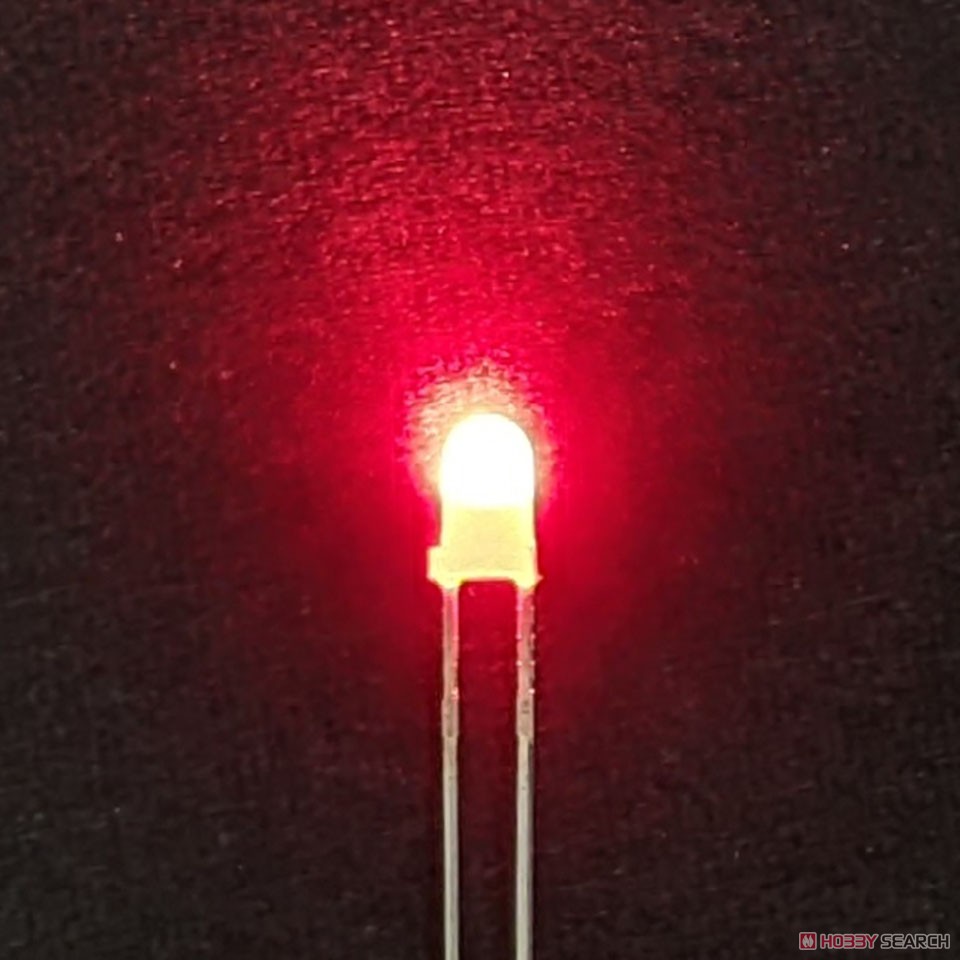

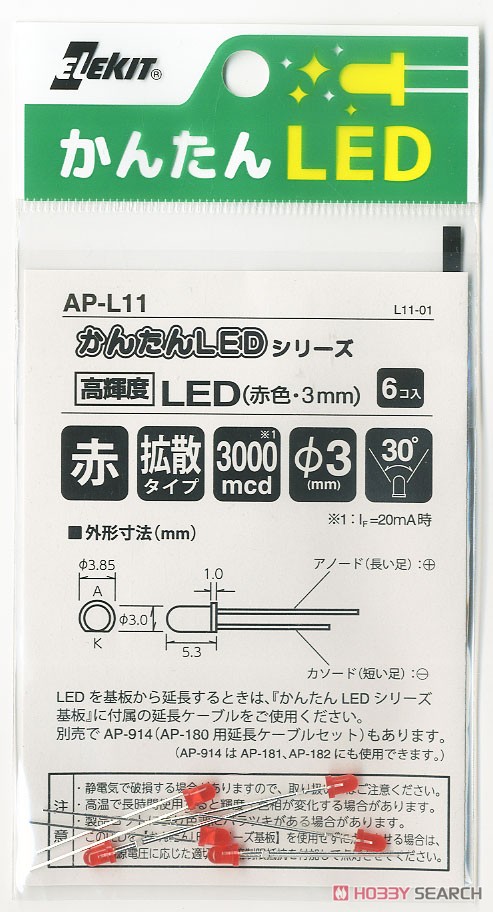

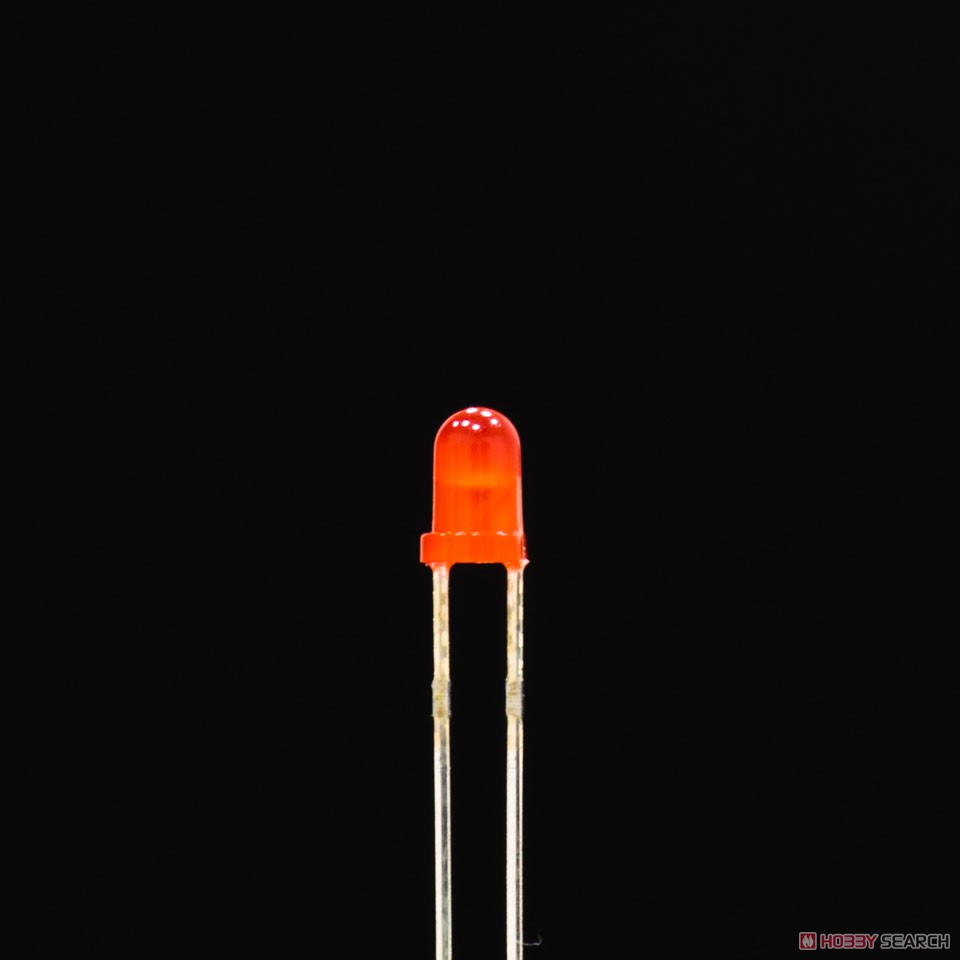

- A set of 6 3mm, diffuse type cannonball-shaped red LEDs that can be illuminated simply by inserting them directly into the Easy LED series board.
- By using a simple LED series board, you can use it without having to choose a power supply or calculate the resistance, which was troublesome for novice users.

*It is also possible to light without using the Easy LED series board. A suitable power supply and current limiting resistor are then required.

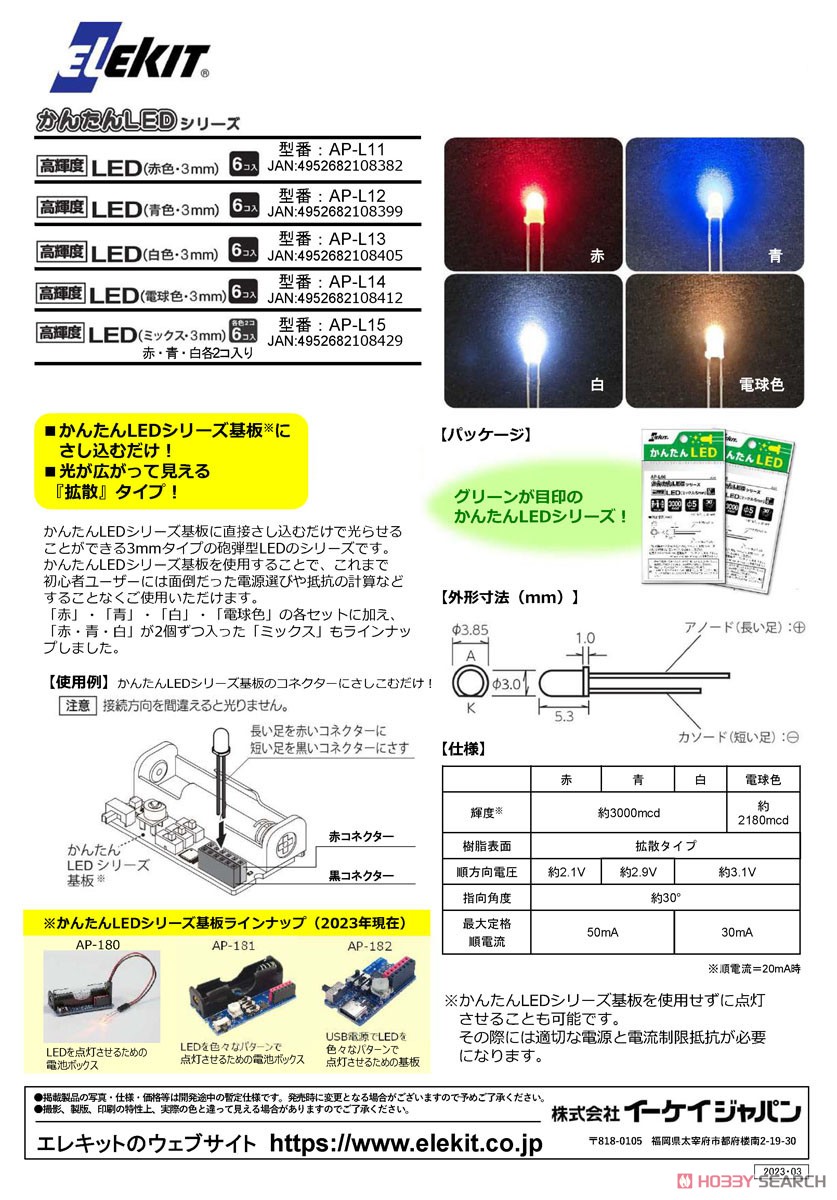

[Easy LED series board lineup]
- AP-180: battery box for lighting LEDs
- AP-181: Battery box for lighting LEDs in various patterns
- AP-182: Board for lighting LEDs in various patterns with USB power

[LED specifications]
- Brightness: 3000mcd (typ. at 20mA)
- Forward Voltage: 2.1V
- Absolute Maximum Current Rating: 50mA
- Directivity angle: 30°



Item Size/Weight : 11 x 7.8 x 0.5 cm / 4g

Product Specifications

Item code

AP-L11

JAN code

4952682108382
