Product Description

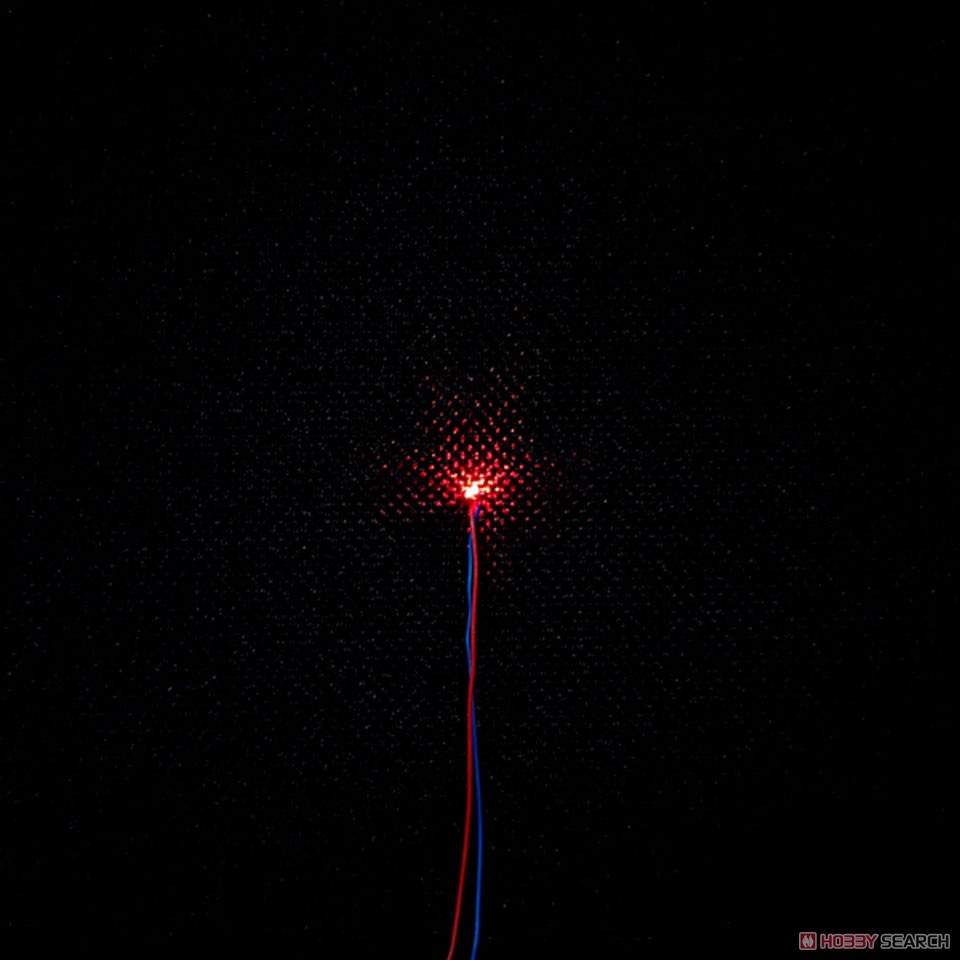

[A set of 6 chip LEDs with ultra-small cords (red). ]

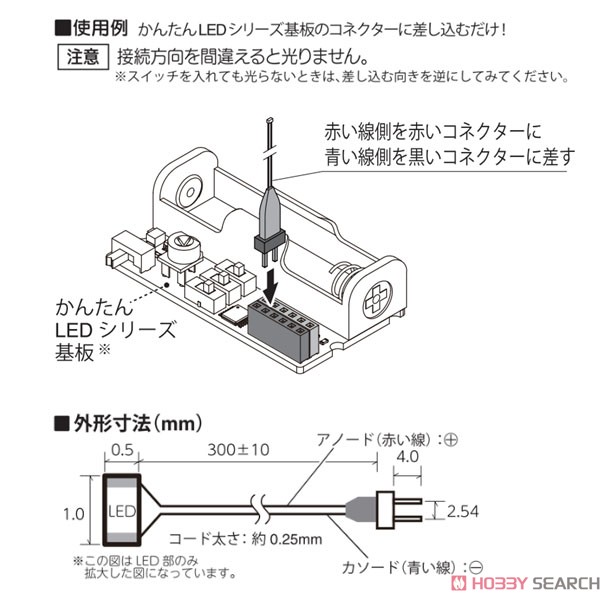

- Easy LED series board* just plug it in!

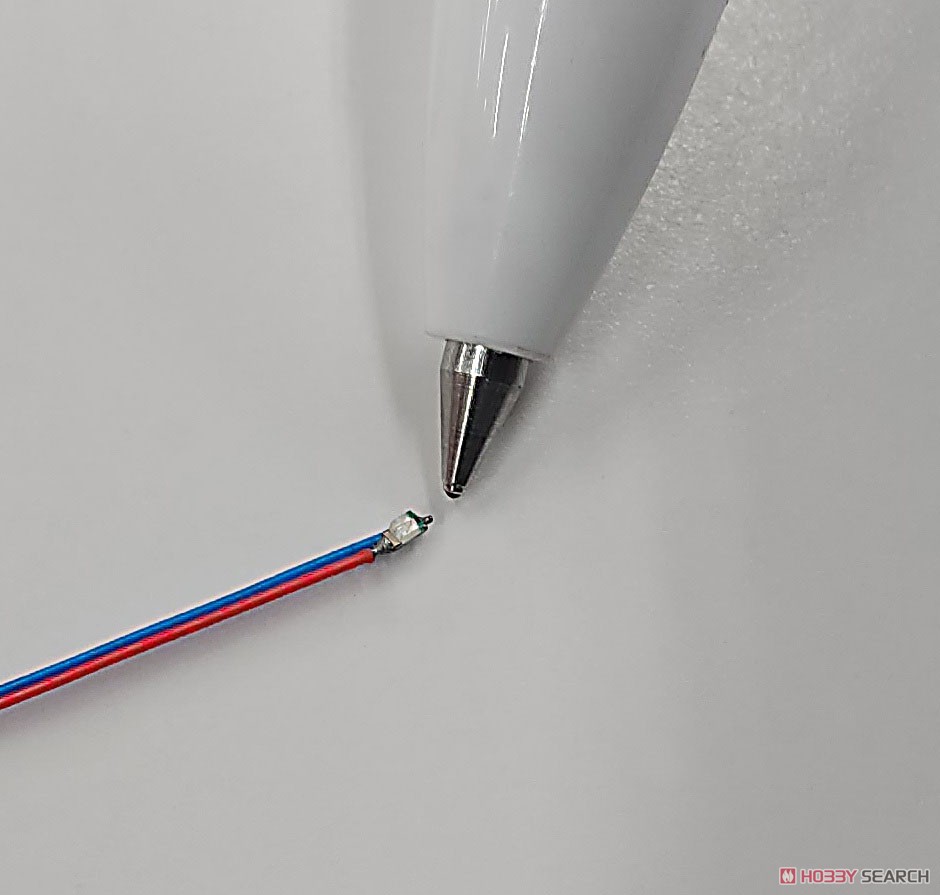

- Ultra small size (1.0×0.5mm) LED
- 30 cm long ultra-thin cord (0.25 mm thick) that is easy to handle when embedded

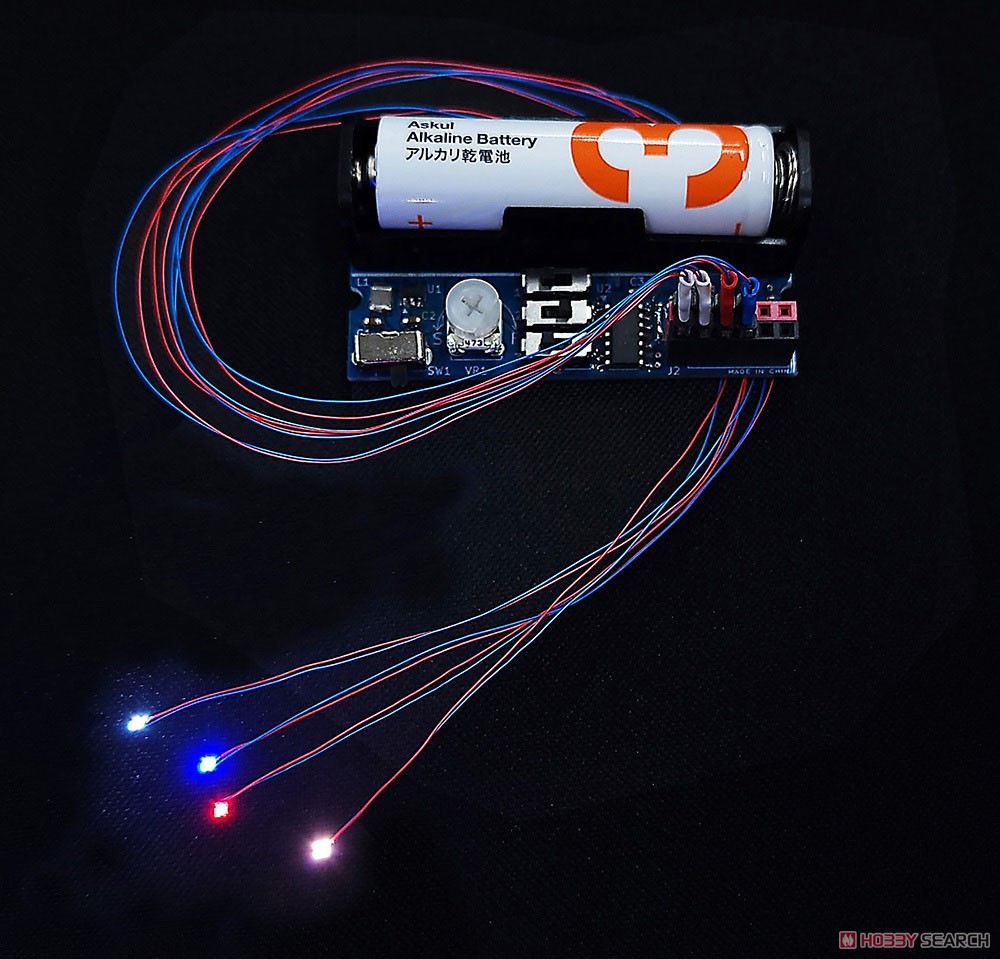

[Easy LED series board lineup]
- AP-180: battery box for lighting LEDs
- AP-181: Battery box for lighting LEDs in various patterns
- AP-182: Board for lighting LEDs in various patterns with USB power

- Simple LED Series A series of chip-type LEDs with ultra-fine cords that can be lit by simply inserting them directly into the board.
- The cord uses a very fine single wire, so it is very easy to wire when incorporating it into a model.
- By using a simple LED series board, you can use it without having to choose a power supply or calculate the resistance, which was troublesome for novice users.

*It is also possible to light without using the Easy LED series board. A suitable power supply and current limiting resistor are then required.

[LED specifications]
- Brightness: 40mcd (typ. at 20mA)
- Forward Voltage: 2.0V
- Absolute Maximum Current Rating: 20mA
- Directivity angle: 120°

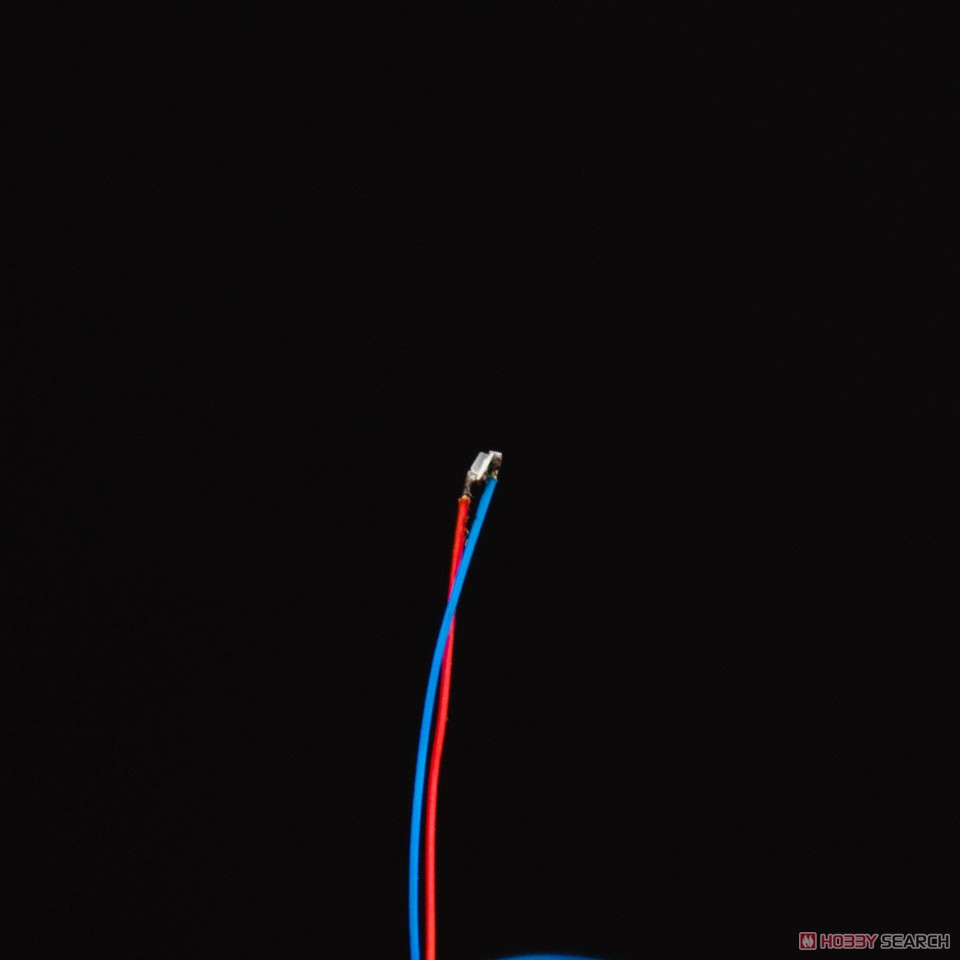

- Used LED: 1.0x0.5mm size chip LED

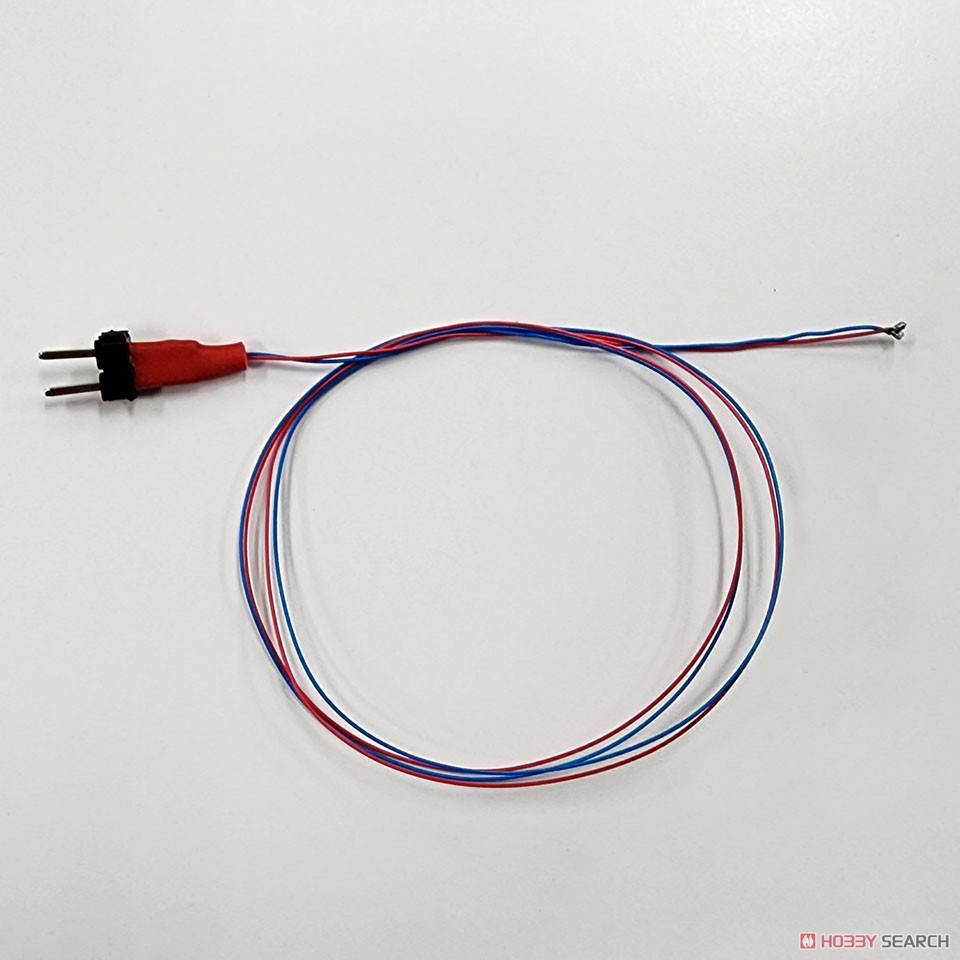

- Cord used: Length about 300mm, thickness about 0.25mm


Item Size/Weight : 11 x 7.8 x 0.3 cm / 5g

Product Specifications

Item code

AP-L21

JAN code

4952682108436
