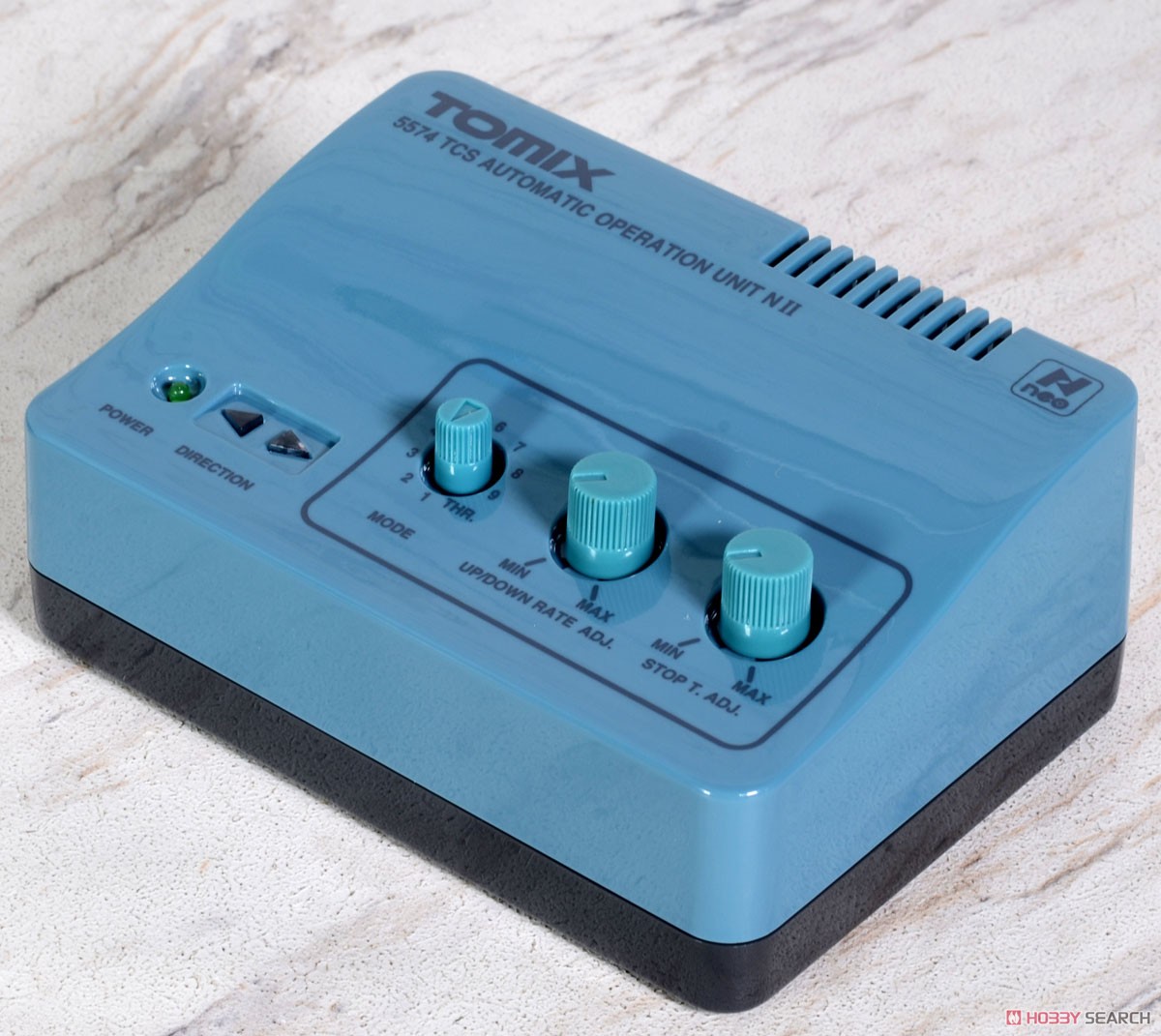

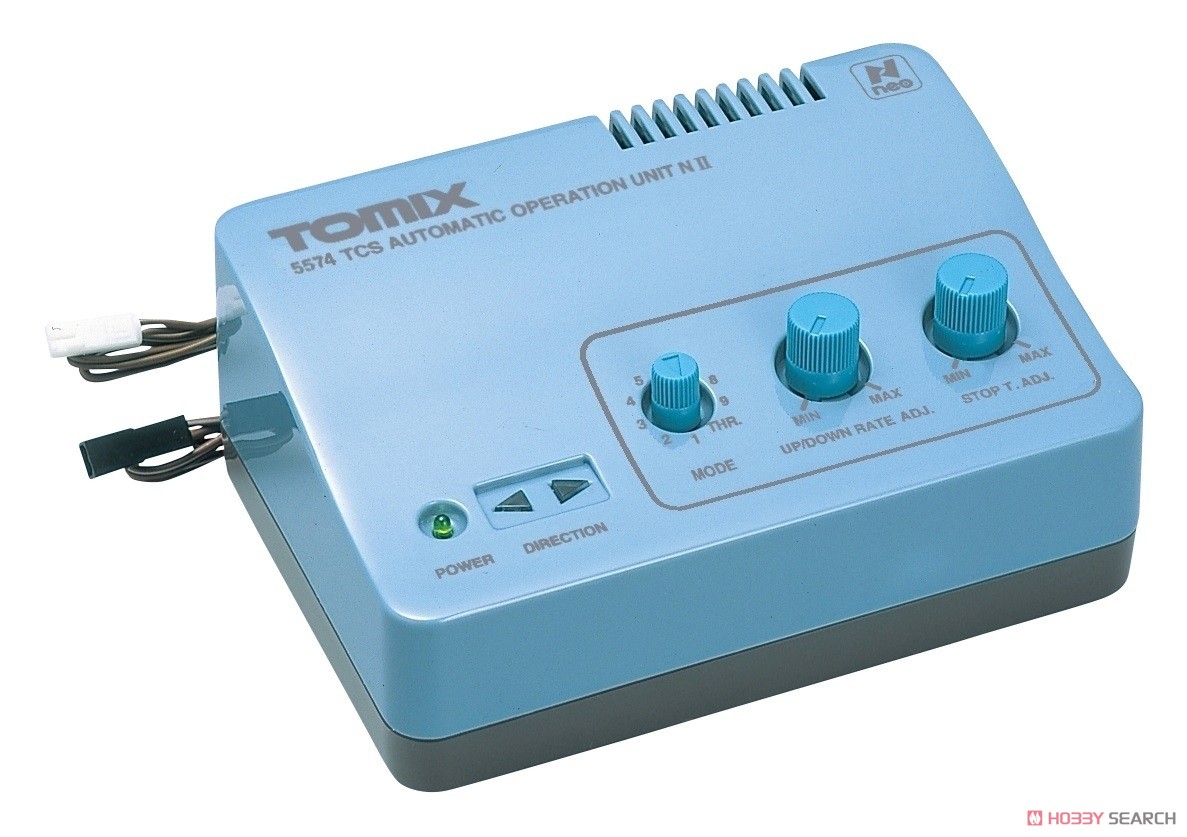

Product Description
──Autonomous driving unit reappears with increased output!
[point]
- Double the output of the conventional product 5563 from 0.5A to 1A. Compatible with train formations with larger power consumption capacity
- The coloring of the main unit is based on the TCS power unit N-1001-CL.
- Automatic operation functions other than output are exactly the same as the conventional product 5563 *
*2023/11/17 There was a text correction from the manufacturer.
It will be exactly the same as the conventional product 5563 → It will be the same as the conventional product 5563
[Product features]
- A separate power unit compatible with TCS power supply is required.
- Output is 1A, does not have constant lighting function
- There is no need to modify the running vehicle, but plastic wheels are not supported.
- Parking time can be varied (approximately 1 second to approximately 60 seconds)
- Acceleration/deceleration rate can be varied
- Points can be automatically switched depending on the mode.
- Equipped with a sleep mode that automatically turns off the power when about 2 hours have passed since the start of operation, or when the sensor has not detected anything for about 10 minutes or more.

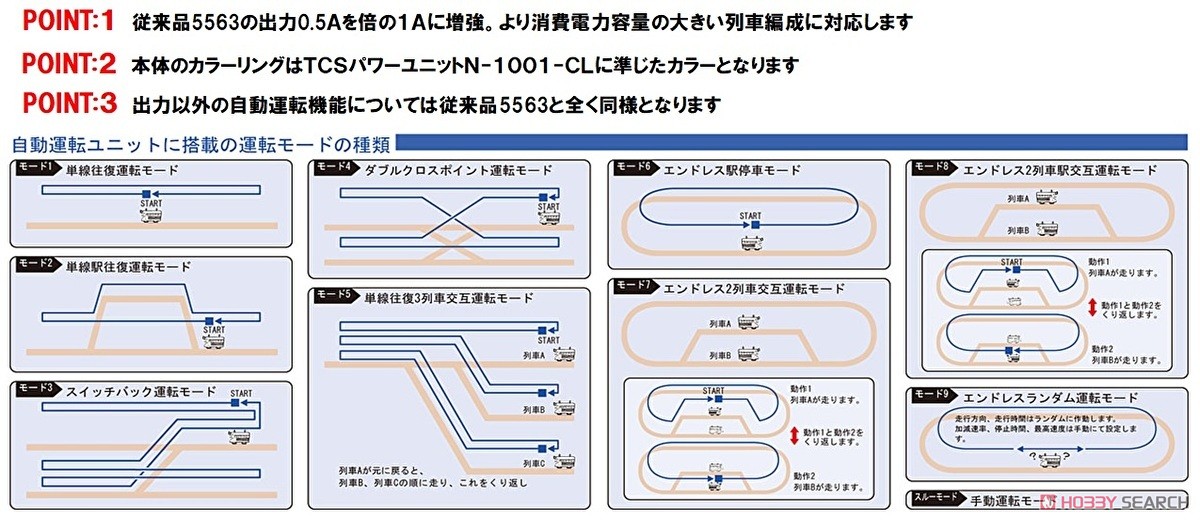

- 10 types of installed modes
・1. Straight reciprocating operation mode
・2.Round trip station stop mode
・3.Zigzag operation mode (Z-shaped track arrangement)
・4.Zigzag driving mode (W cross arrangement)
・5.3 Train alternate operation mode
・6. Endless station stop mode
・7. Station 2 train exchange mode (operating in the same direction)
・8. Station 2 train exchange mode (reverse direction operation)
・9.Random operation mode
・10.Through (manual operation) mode
*Sensor, feeder, branch cord, etc. are required (sold separately)
*<5563> will be discontinued.
[accessories]
- Seal: Number notation
[Related product]
- <5573> TCS sensor PC rail S70-PC(F) (set of 2)
- <5568> TCS wide tram sensor rail S37-WT-SE(F) (set of 2)
- <5567> TCS wide rail/slab rail sensor
- <5534> DC feeder N
- <5559> TCS sensor rail S70(F) (set of 2)
- <5558> TCS one-touch attachment sensor
- <5821> Extension cord (for sensor)
- <5538> DC feeder N for TCS wide rail/slab rail
- <5814> Extension cord (for electric point N)
- <5813> Extension cord (for DC feeder N)
- <5812> Branch code (for DC feeder N)
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 15.3 x 10.9 x 7.8 cm / 327g
Product Specifications
- Item code
- 5574
- JAN code
- 4543736055747
Purchase Information
This item is limited to 12 per household.
