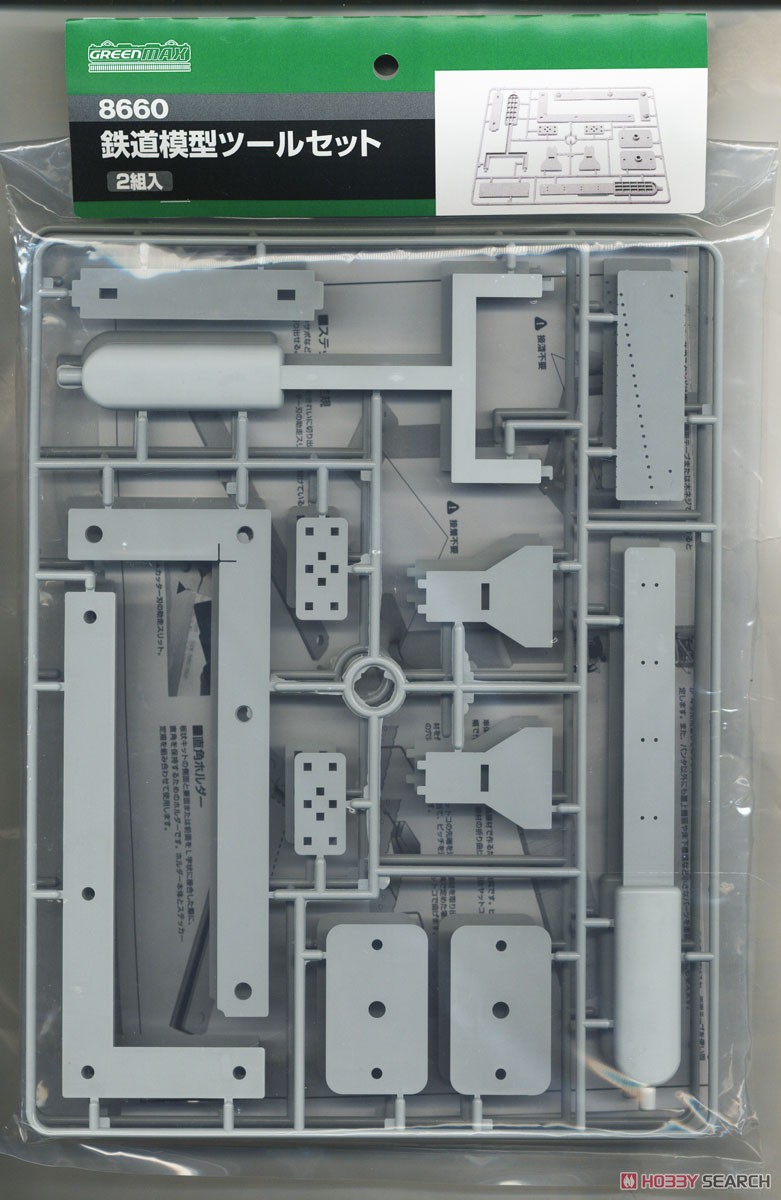

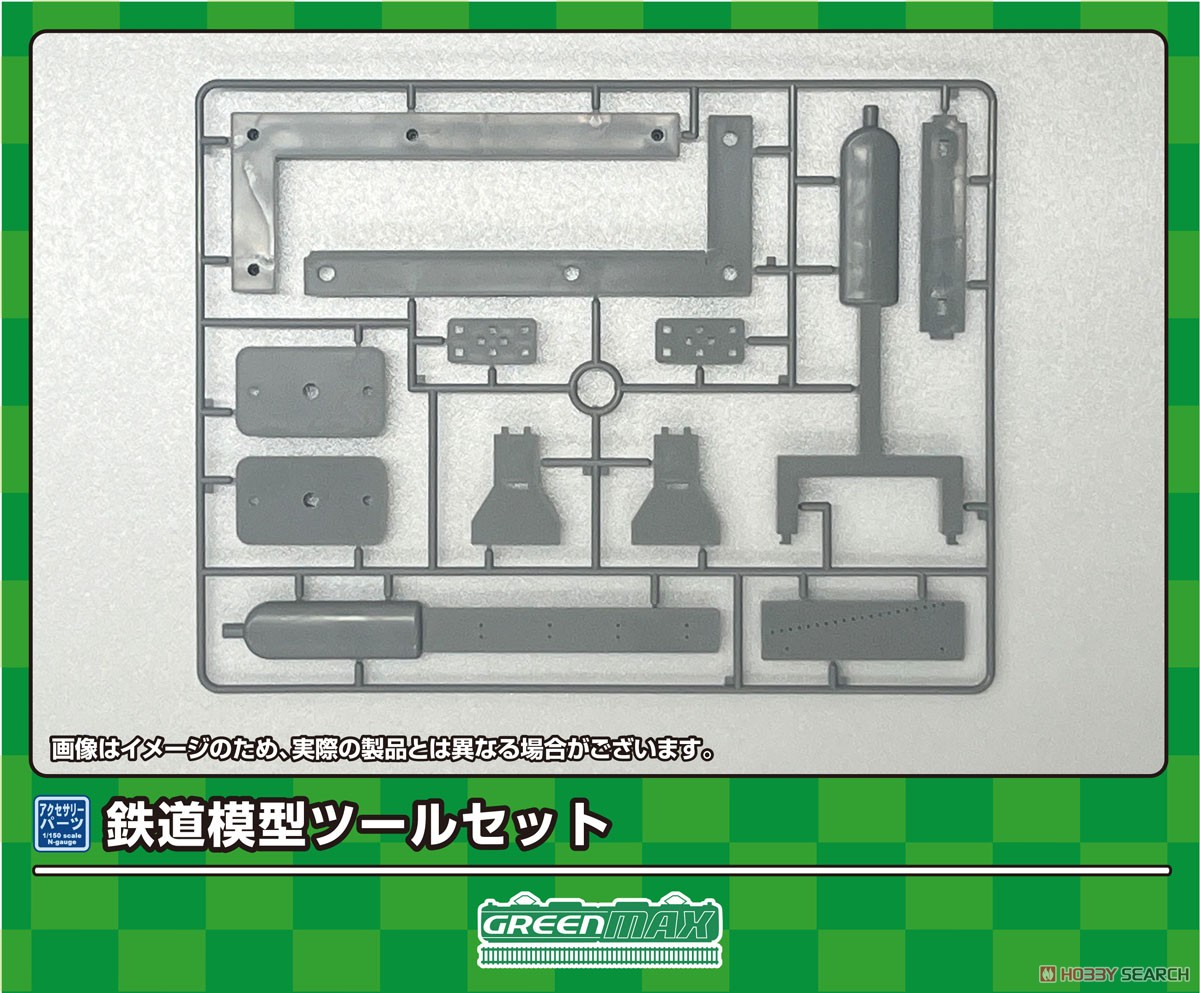

Product Description

A kit of tools perfect for building railway models

[Product Features]
- A useful set that includes many tools that can be used for assembling the car body, painting, cutting out stickers, creating handrails, etc.
- Made of ABS material, each tool can be easily assembled after being detached from the runner and used immediately.

[Includes the following 7 tools]
- Vehicle workbench/Use by placing an N gauge vehicle body over the workbench.
- The vehicle body can be lifted above the work surface, allowing you to work without directly touching the vehicle body.
- By raising the body of the vehicle above the work surface, problems such as spilled paint or glue getting on the work surface or contact with blades are less likely to occur.
-It is useful when attaching crew steps, etc. to the bottom of the vehicle body.
- The position and direction of the work top surface can be replaced and adjusted to suit the vehicle body to be covered.

- Use in conjunction with the Paint Holder/Vehicle Worktable.
・By inserting the paint holder into the two square holes on the vehicle workbench's [workbench cross beam], you can paint the vehicle body directly attached to the vehicle workbench.
- When drying after painting, you can insert the convex part on the end of the paint holder into the [drying stand] to keep it standing upright.

- Panther Paint Holder
-Four N gauge pantographs can be attached and painted simultaneously.
・Mounting holes are φ1.2 (mounting hole spacing 4mm)
- For pantographs that do not fit the mounting holes listed above, drill corresponding mounting holes or use double-sided tape to secure the pantograph.
- In addition to pantographs, it can also be used to paint small parts such as rooftop equipment and underfloor equipment.
- When drying after painting, the convex part on the end of the pantograph paint holder can be inserted into the [drying stand] to keep it standing upright.

- Drying stand
・[Pantograph paint holder], [Paint holder] These are parts that allow the holder to stand by inserting the convex part at the end.
- The drying stand will be more stable if you attach it to a workbench with double-sided tape or wood screws.

- Sticker ruler
- This is an L-shaped ruler for cutting out destination signs and other marks from stickers.
- There are two run-up slits for the cutter blade on the inside of the ruler, and by inserting the cutter blade into the slits you can neatly cut out the corners of the sticker.

- Use in combination with the right angle holder/[sticker ruler].
-This is a holder that combines the side, front and end of the plate-shaped kit into an L shape and holds them at right angles.

- Hand slit bending jig/Bends metal wire to an even size to create hand slits of various sizes.
- The pitch (spacing) of the handrails that can be created is 20 types ranging from 1.0mm to 10.5mm in 0.5mm increments, and 8 types ranging from 15mm to 18.5mm in 0.5mm increments.
・The [Electric front handrail folding part] inside the jig / Electric locomotive ・You can create handrails with a sweep angle under the front window. (You can create two types of handrail pitches: 7mm and 9mm)

[Product Contents]
- Tool set runner x 2
- operating instructions


Item Size/Weight : 27.5 x 21 x 2.7 cm / 164g

Product Specifications

Item series

Tools

Item code

8660

JAN code

4946950866005
