Product Description

- We will be releasing three new color variations of the popular model making item [LED module with magnetic switch lead wire specification].
- Three new colors have been added: Ice Blue, which is useful for jet lights, Orange, which is useful for depicting heat sources, and Warm White, which is easy to use for house kits.
- The number of colors has increased from six to a total of nine, allowing you to incorporate them into an even wider variety of model building projects.

[Examples of product applications]
- Ultra-thin 0.3mm lead wire allows separation of the LED and switch, expanding the range of illumination possibilities.
- Can be used as a lighting gimmick inside plastic models
- Each color is loaded onto a single device, and the differences between the individual devices are judged based on the color difference.

[Product Features]

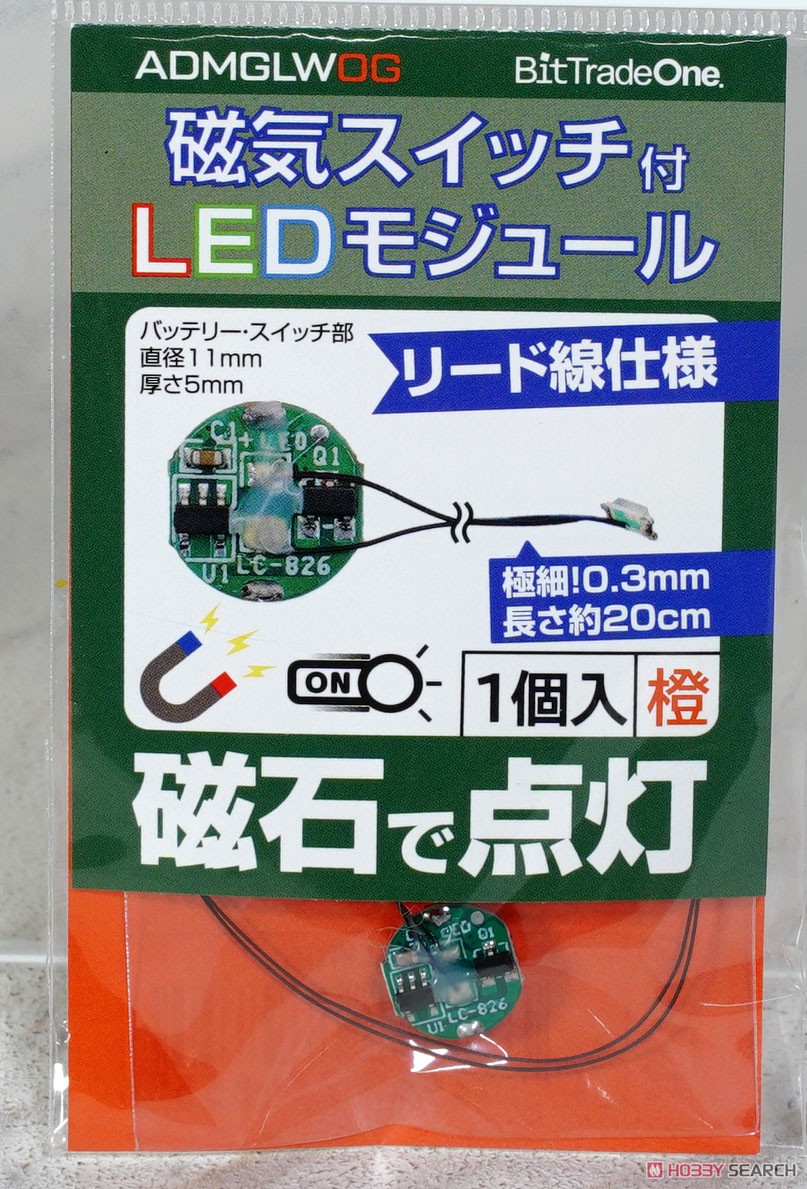

- LEDs are pulled out using ultra-thin 0.3mm lead wires! LED module with magnetic switch for greater freedom of placement
- The LED module with magnetic switch is extremely small, with a diameter of just 11mm including the battery and a height of just 5mm, and is available in a version with the LED pulled out with a lead wire of around 20cm!
- The lead wires are also extremely thin at 0.3mm, so they can be easily installed in the heads of small scale models such as 1/144.
- It is possible to accommodate more precise installation, such as installing the switch part in a spacious area and placing only the LED at the end of the lead wire in a narrow space.
- Equipped with a magnetic switch that is activated by bringing a magnet close, it can be operated even from outside the plastic case.

- The magnetic switch allows you to turn the LED on and off by bringing a magnet close to it.
- The lighting gimmicks in various places can be activated without direct contact, minimizing the impact on posing, etc.
- Switching is possible even when a magnet is brought close from the outside of thin plastic or acrylic.

[Basic specifications]
- Size: 11 x 11 x 5mm (excluding protrusions)
- LED life: Approximately 30,000 hours
- Lead wire: thickness: 0.3mm, length: approx. 20cm
- Power supply: CR927 3v button cell battery (not included)
- Power consumption: Approx. 10mA

*The three new colors will be sold in packs of one only.
*This product does not come with a button battery or a magnet for the switch. Please purchase these separately.



Item Size/Weight : 9.1 x 6.1 x 0.5 cm / 2g

Product Specifications

Item code

ADMGLWOG

JAN code

4562469774855
