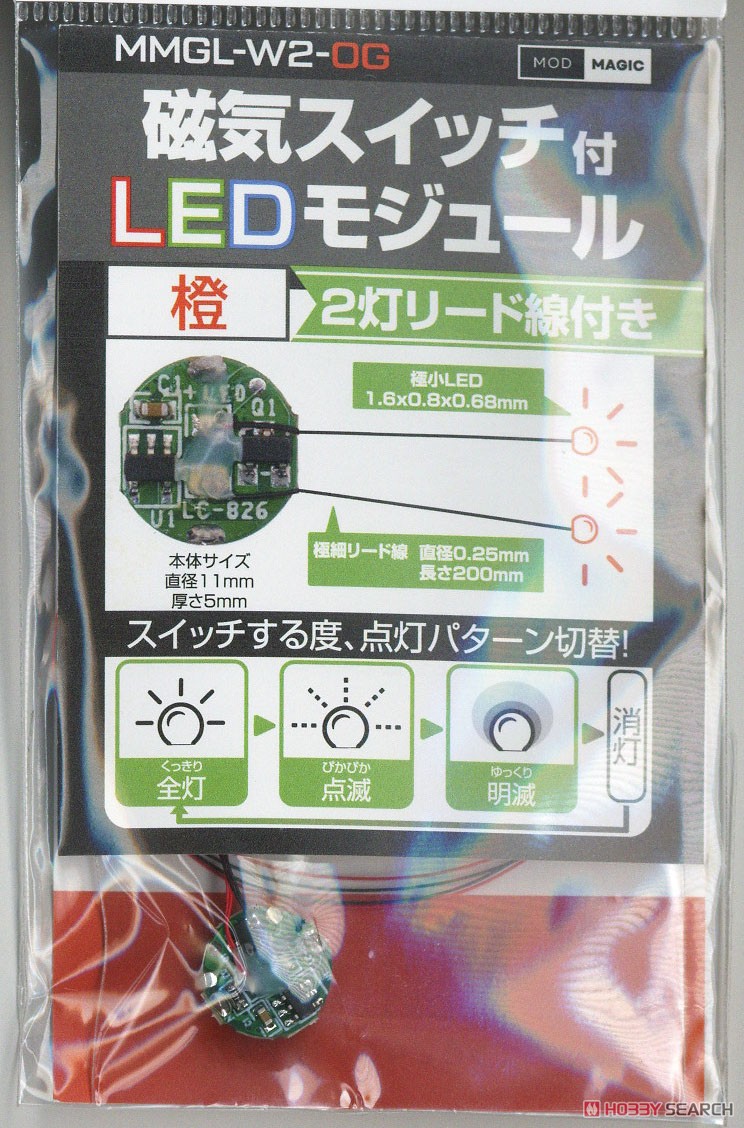

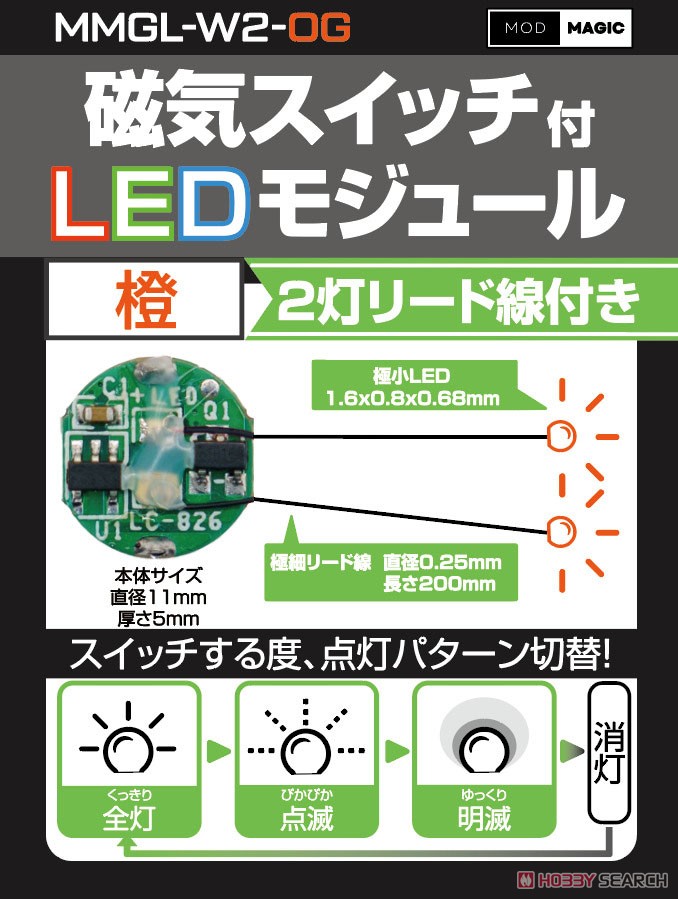

Product Description

──The lighting pattern changes every time you switch it!

- This is a [two-lamp type] module that has been requested by many users of the existing [LED module with magnetic switch] and [lead wire specification].
- This model is ideal for lighting two places together, such as the wingtips of an airplane or the headlights of a car.
- In addition, the LEDs and lead wires have been made smaller than in previous models, making them easier to use with detailed scale models.
- The lighting patterns have also increased to three, allowing for a wider variety of expressions.

[Product Features]
- Equipped with even finer 1608 size LEDs.
- Equipped with an even smaller 1608 size LED (1.6 x 0.8 x 0.68 mm) for scale models.
- The lead wires are also thinner, at ultra-fine 0.25mm.
- The LED and switch are separate, making it ideal for creating wingtip lights on aircraft, headlights on car models, and turn signals!
- It expands the range of electric lighting.

- Three lighting modes allow for more expressive expression than ever before
- Equipped with a magnetic switch that is activated by bringing a magnet close, it can be operated even from outside the plastic case.
- The magnetic switch allows you to turn the LED on and off by bringing a magnet close to it.
- The lighting gimmicks in various places can be activated without direct contact, minimizing the impact on posing, etc.
- Switching is possible even when a magnet is brought close from the outside to thin plastic, acrylic, etc.
*We do not measure the magnetic strength that is the threshold for light emission, as it is affected by factors such as the environment and individual differences.
*A normal magnet will react from a distance of about 1 to 3 cm.
*Even weak magnets such as magnetic stickers will react if there is direct contact.

- Available in 6 colorful colors.
- Available in 6 colors: Red, Blue, Orange, Green, White and Warm White.

[Basic specifications]
- Body size: 11 x 11 x 5mm (excluding protrusions)
- Number of LEDs: 2
- LED specifications: 1608 size LED (1.6mm x 0.8mm x 0.68mm)
- Lead wire: diameter: 0.25mm, length: approx. 200mm
- Flashing function: 3 modes lighting pattern (OFF → ON → Flashing → Blinking → OFF)
- Power supply: CR927 3v button cell battery (not included)
- Power consumption: Approx. 20mA

*The two-lamp model is sold in single units only.
*This product does not come with a button battery or a magnet for the switch. Please purchase these separately.


Item Size/Weight : 9 x 6 x 0.5 cm / 2g

Product Specifications

Item code

MMGL-W2-OG

JAN code

4562469774831
