Product Description

--Newly produced, various overhead poles inspired by electric trains!

- A set of overhead poles reminiscent of the "feeder" section of a Shinkansen train

[Actual Guide]
- Power supply is the supply of electricity required for trains and electric locomotives from a railway substation.

[point]
- Various overhead poles included
- Includes embankment S35 and viaduct S35 for installing the overhead poles (steel structure) of the tower section
- A pole fixing stand that can be attached to the DC feeder socket

[Product Features]
- We produced various types of overhead poles based on the image of the [electrical power] section.
- The central overhead pole (steel structure) is assembled in a tower shape by combining a single-wire overhead pole, steel frame type, and a newly manufactured overhead pole truss.
*Some of the poles require cutting to be assembled.
- The steel structure is arranged to be more compact than the actual product so that it can be installed within a 70mm span.
- We manufacture embankments S35 and viaducts S35 where steel structures can be installed.
- The S35 embankment is 35mm long and can be used for single tracks, double tracks, and two-tiered stacking. Connect two S35 embankments to create the S70 embankment, or place the included S2.5 embankment between the two to create the S72.5 embankment.
*If the date is set to May 1977, steel structures cannot be installed.
- The S35 viaduct is 35mm long and can be switched between single and double track configurations
- Includes parts to turn the separately sold joint rail S35-J into a wide rail
- Comes with a pole fixing stand that can be attached to the rail's DC feeder insertion port and a conventional fixing stand that can be attached to the trackbed

[Products that can be enjoyed side by side]
- <4223> Substation (Gray) (Kit Type)

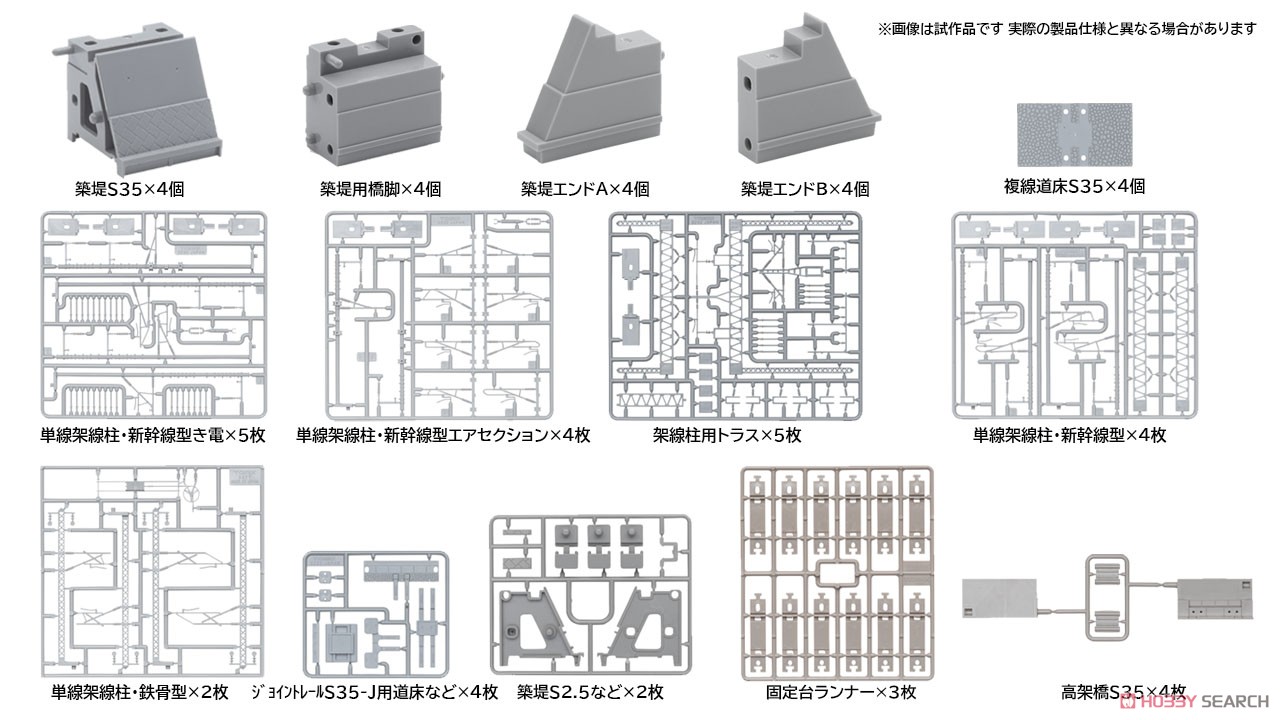

[Set contents]

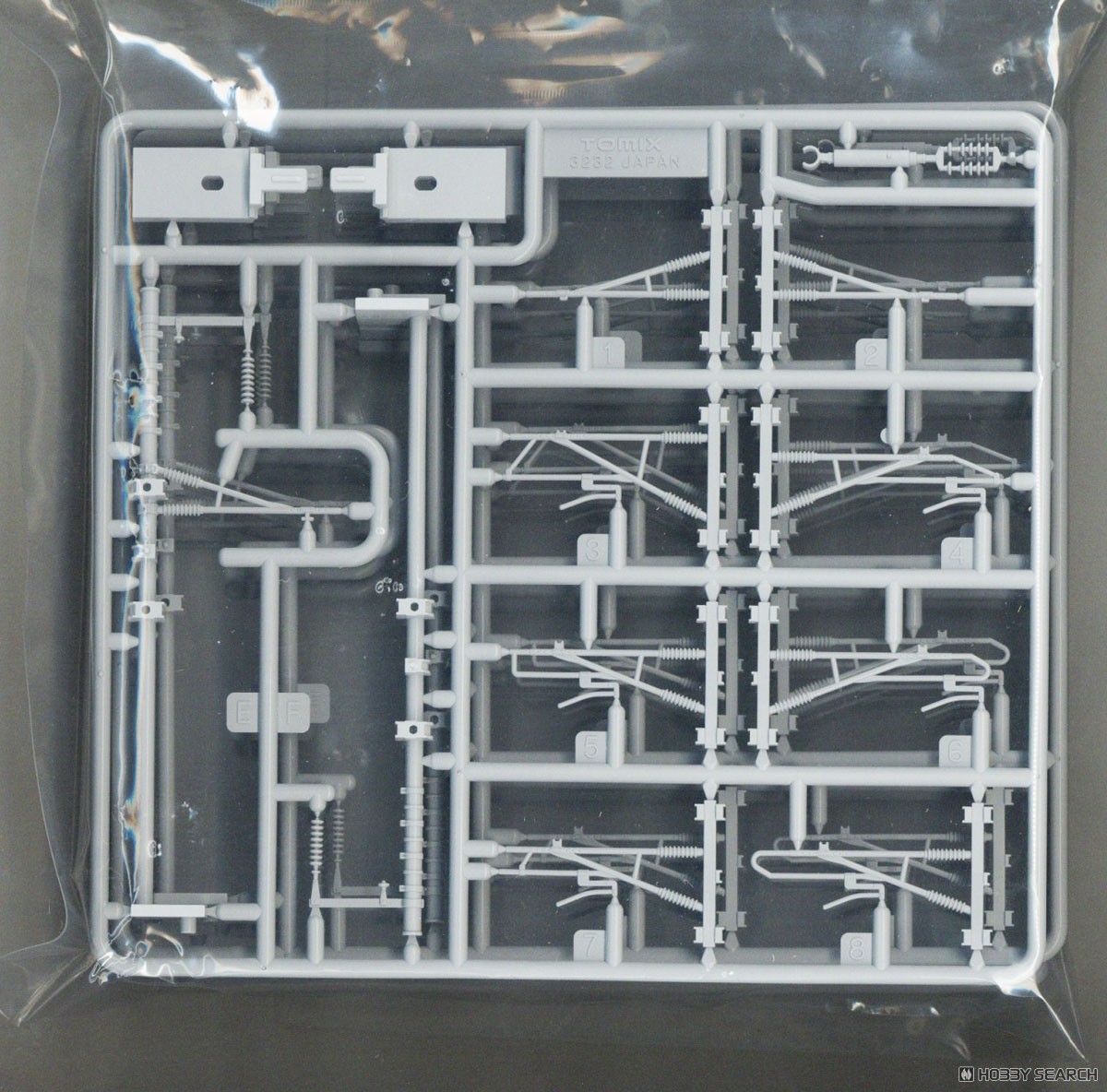

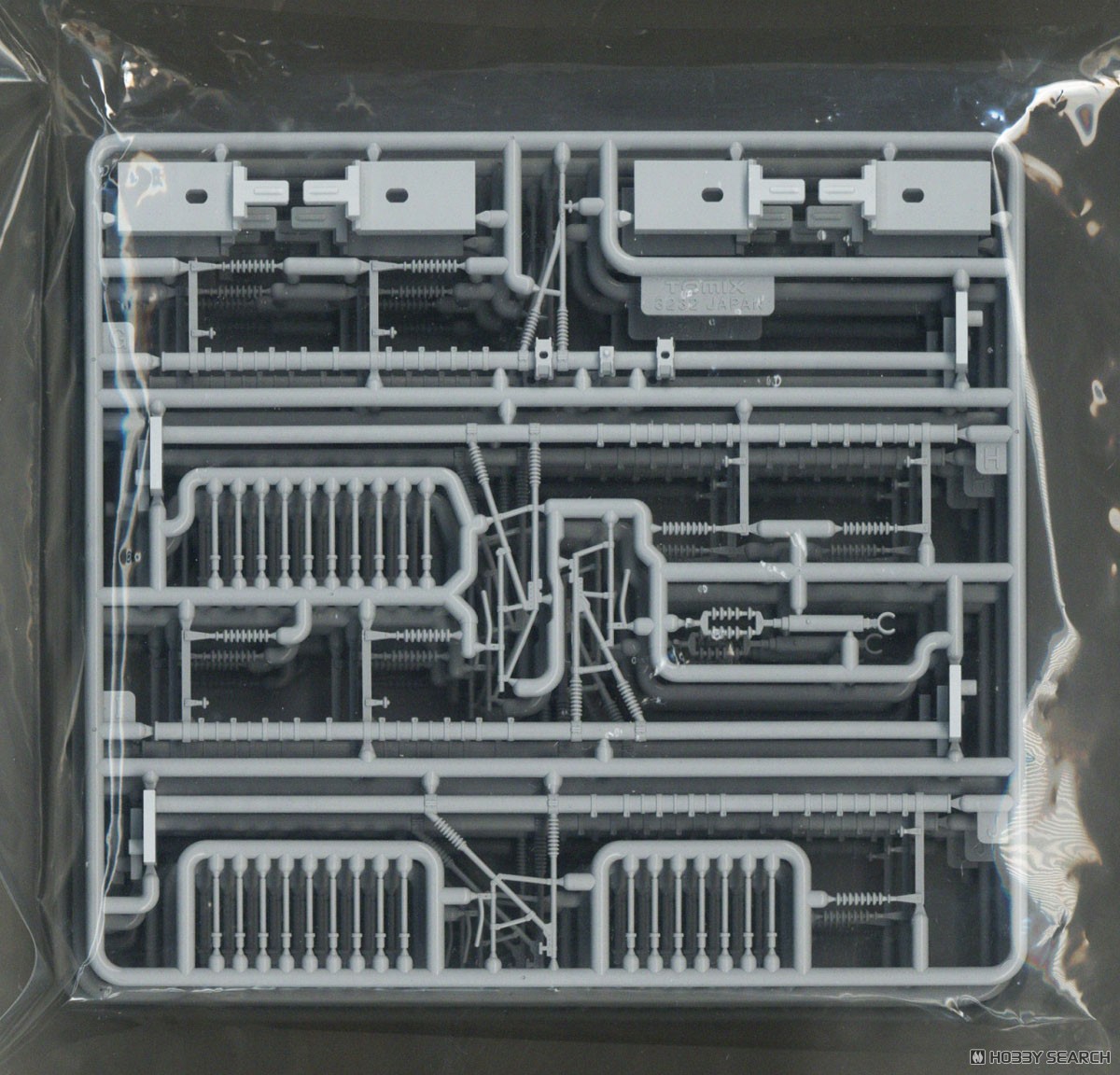

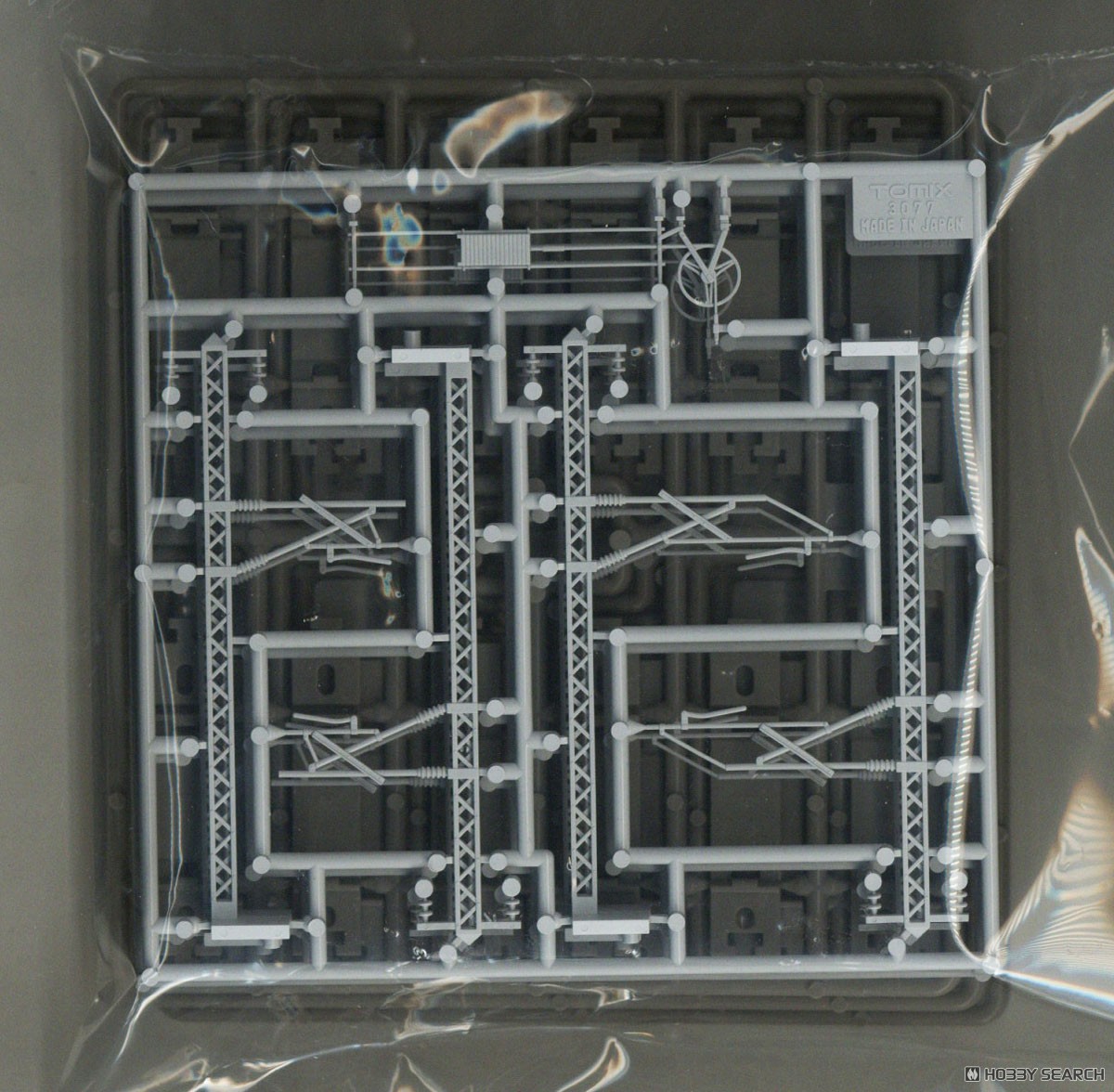

- Single-line overhead pole, Shinkansen-style power feeder runner x 5
- Single-line overhead pole, Shinkansen-style air section runner x 4
- Single-line overhead pole, Shinkansen-type runner x 4
- Single wire overhead pole, steel frame runner x 2

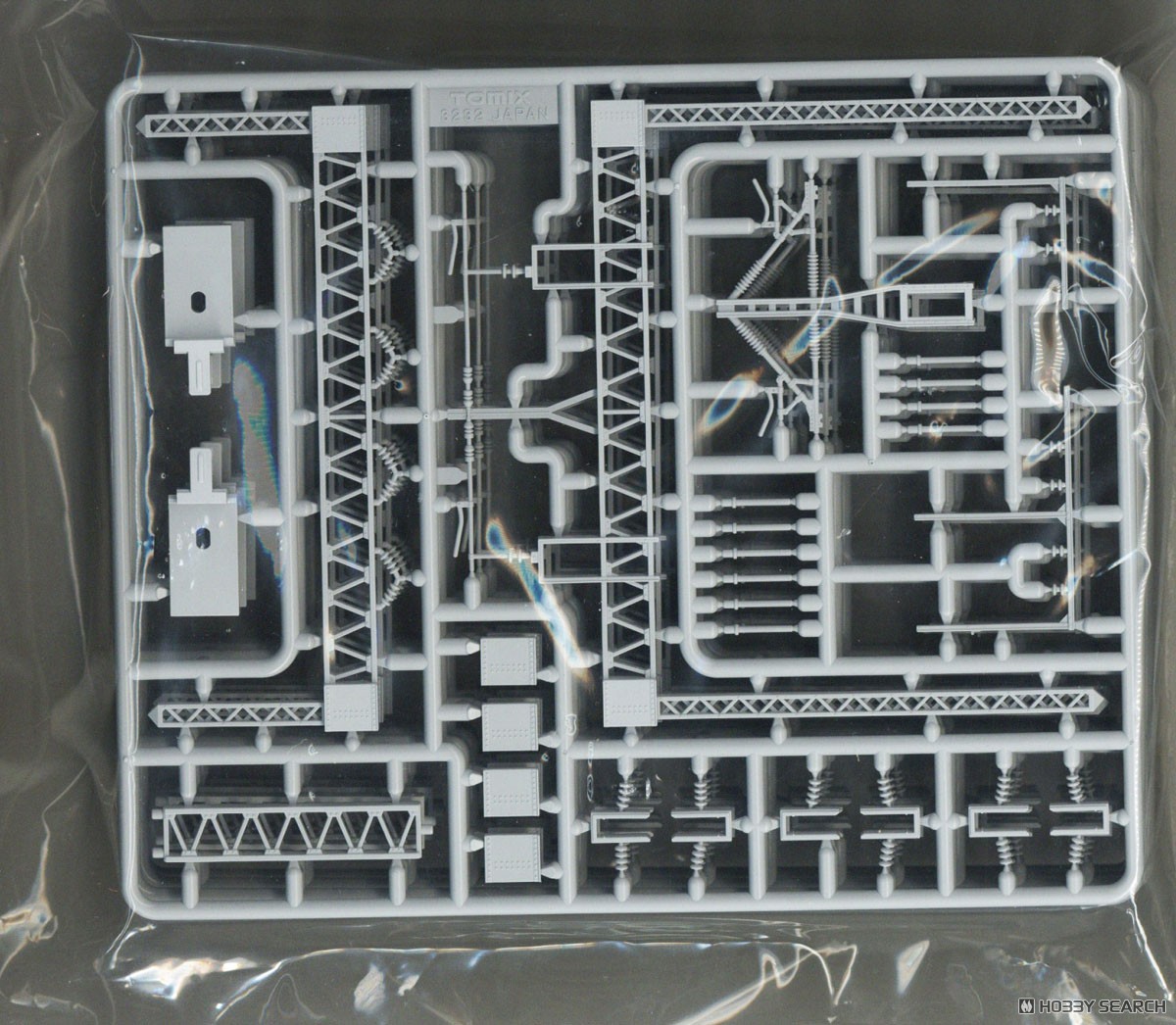

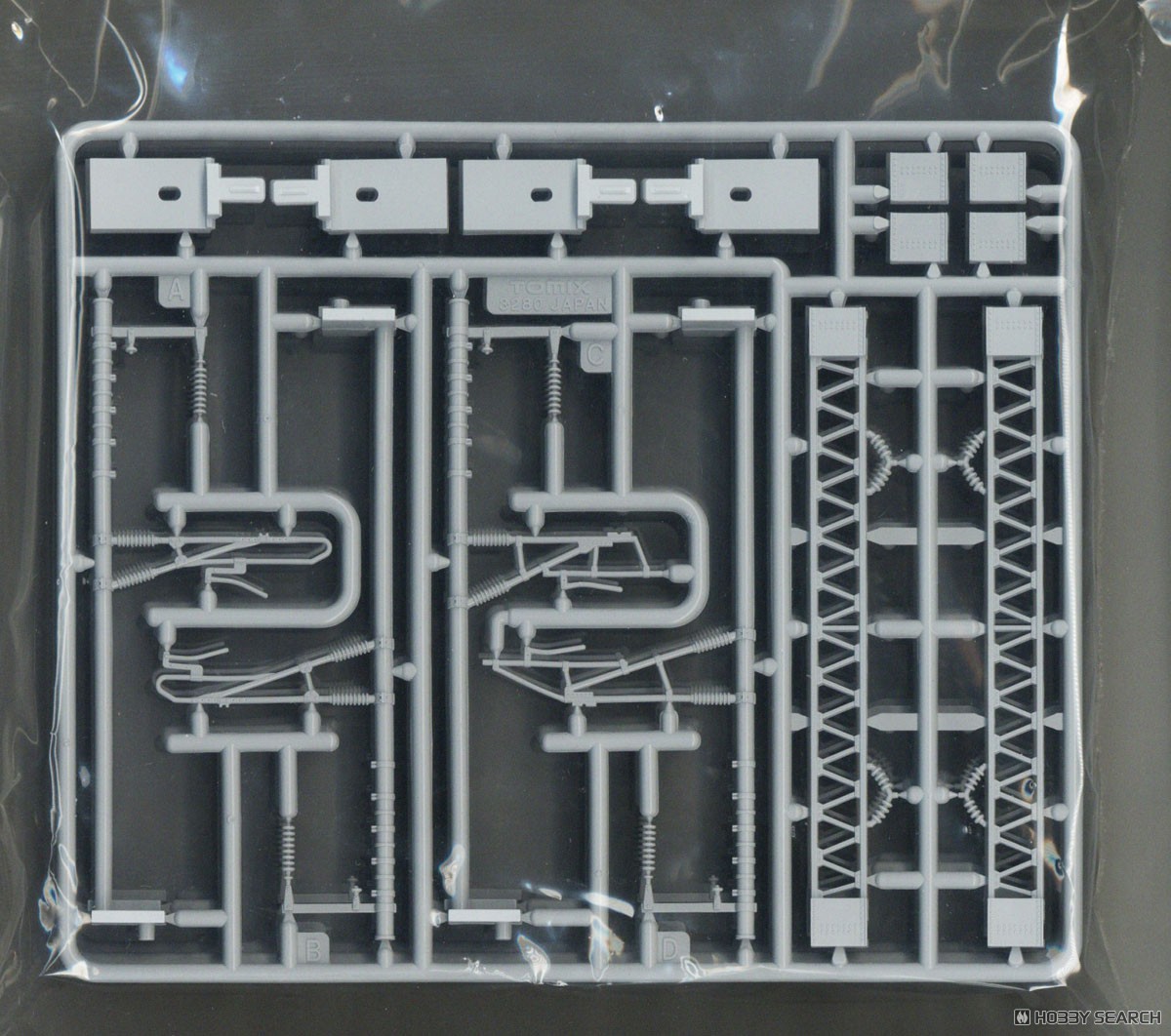

- 5x truss runners for overhead lines

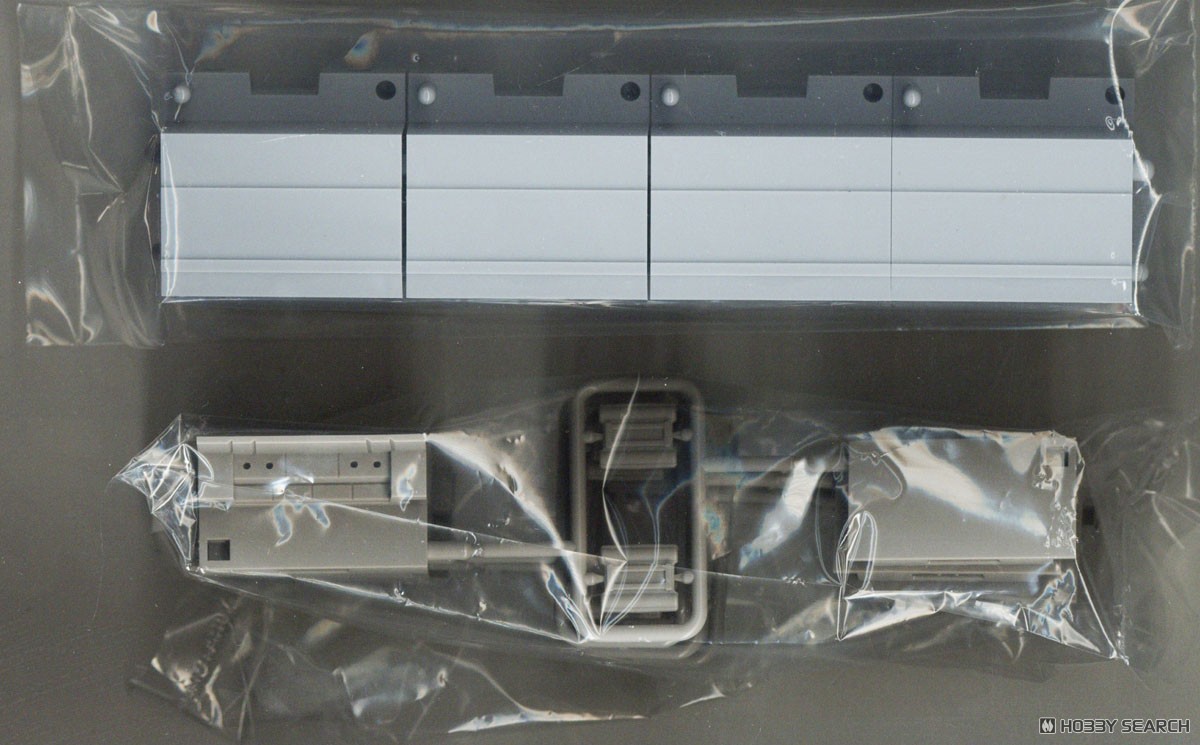

- Embankment S35 x 4
- Embankment End A x 4
- Embankment End B x 4
- Embankment Pier x 4

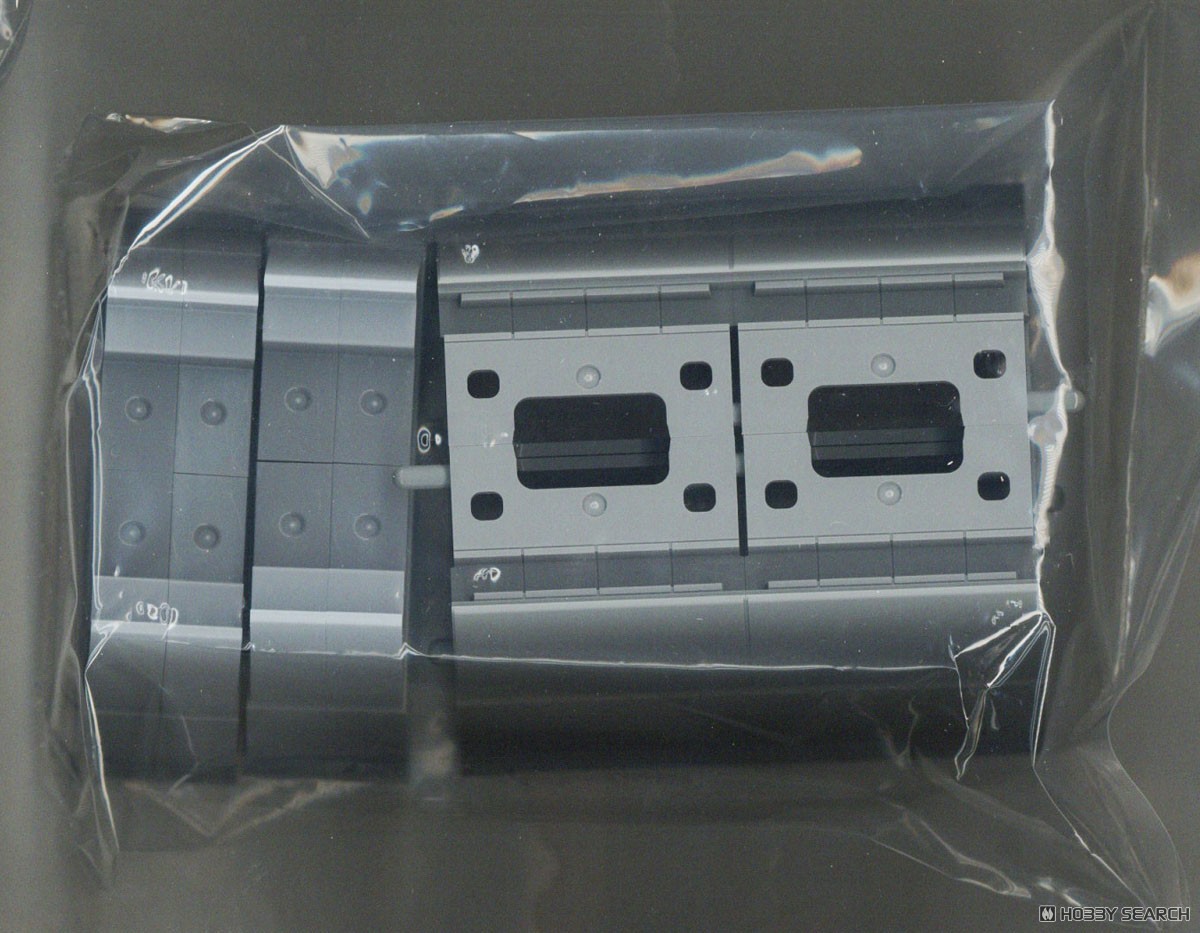

- Viaduct S35 x 4

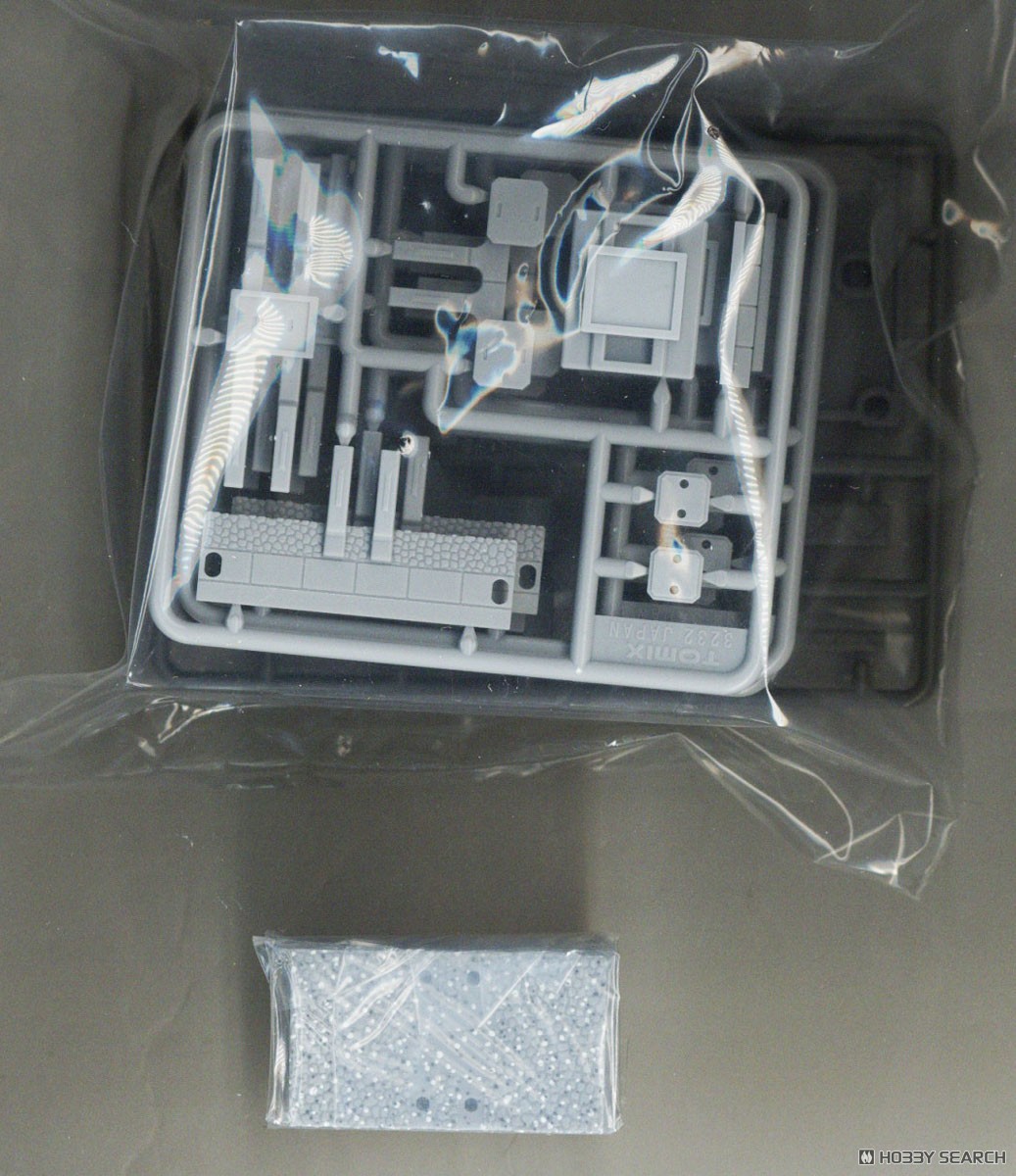

[accessories]
- Runner parts: Embankment S2.5, etc.
- Runner parts: Joint rail S35-J track bed, etc.
- Runner parts: Fixed base runner
- Parts: Double track ballast S35


Item Size/Weight : 33 x 24.4 x 5.5 cm / 704g

Product Specifications

Item series

Structure

Item code

3232

JAN code

4543736032328
