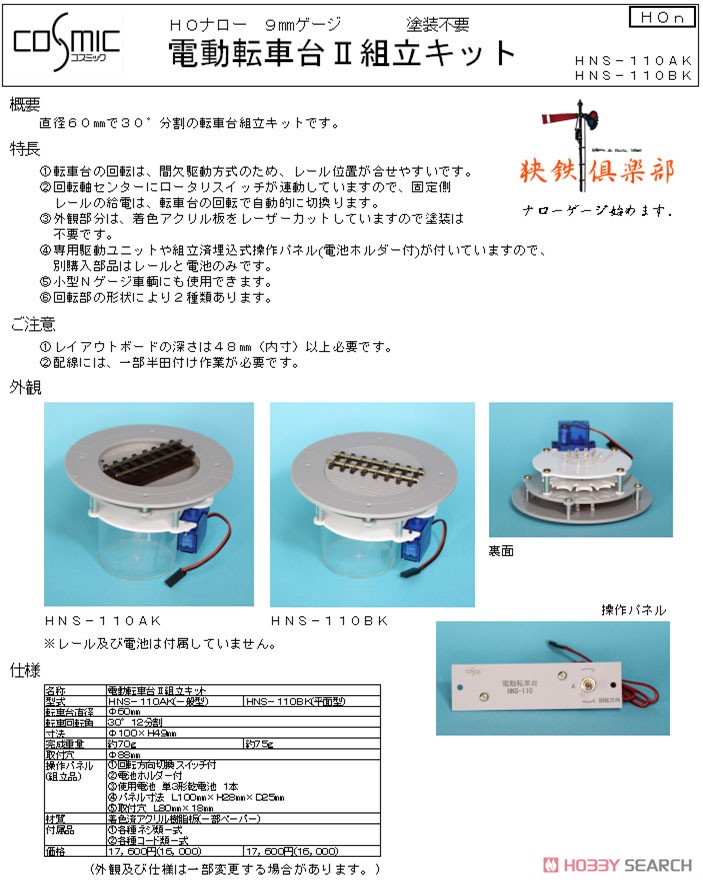

Product Description
- This is a turntable assembly kit with a diameter of 60 mm and 30° divisions.
[Features]
- The turntable rotates using an intermittent drive system, making it easy to align the rail position.
- A rotary switch is linked to the rotating shaft center, so the power supply to the fixed rail is automatically switched by the rotation of the turntable.
- The exterior is made of laser cut colored acrylic, so no painting is required.

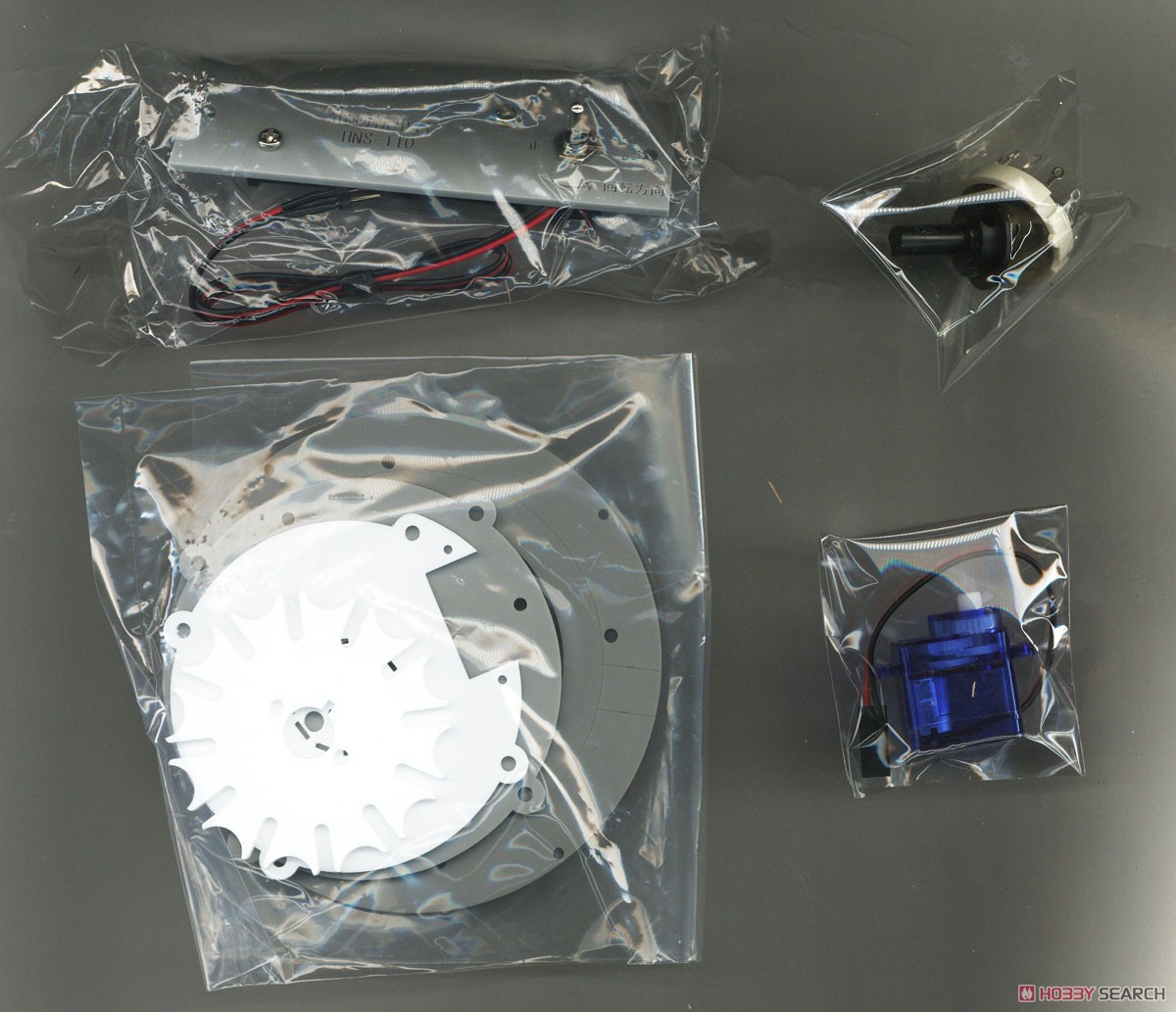

- It comes with a dedicated drive unit and a pre-assembled built-in operation panel (with battery holder), so the only parts you need to purchase separately are the rails and batteries.
- Can also be used for small N gauge vehicles.
- There are two types depending on the shape of the rotating part.
[Note]
- The layout board must be at least 48mm deep (inner dimension).
- Some soldering is required for wiring.
[specification]
- Turntable diameter: φ60mm
- Wheel rotation angle: 30° 12 divisions
- Dimensions: φ100×H49mm
- Finished weight: Approx. 70g
- Mounting hole: φ88mm
- Operation panel (assembly):
- With rotation direction change switch
- Battery holder included
- Battery used: 1 AA battery
・Panel dimensions: L100mm x H28mm x D25mm
・Mounting hole L80mm×18mm
- Material: Colored acrylic resin board (partly paper)
- accessories:
・A set of various screws
・A set of various codes
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 20 x 14.4 x 3 cm / 197g
Product Specifications
- Item code
- HNS-110AK
- JAN code
- 4582330655397
Purchase Information
This item is limited to 12 per household.
